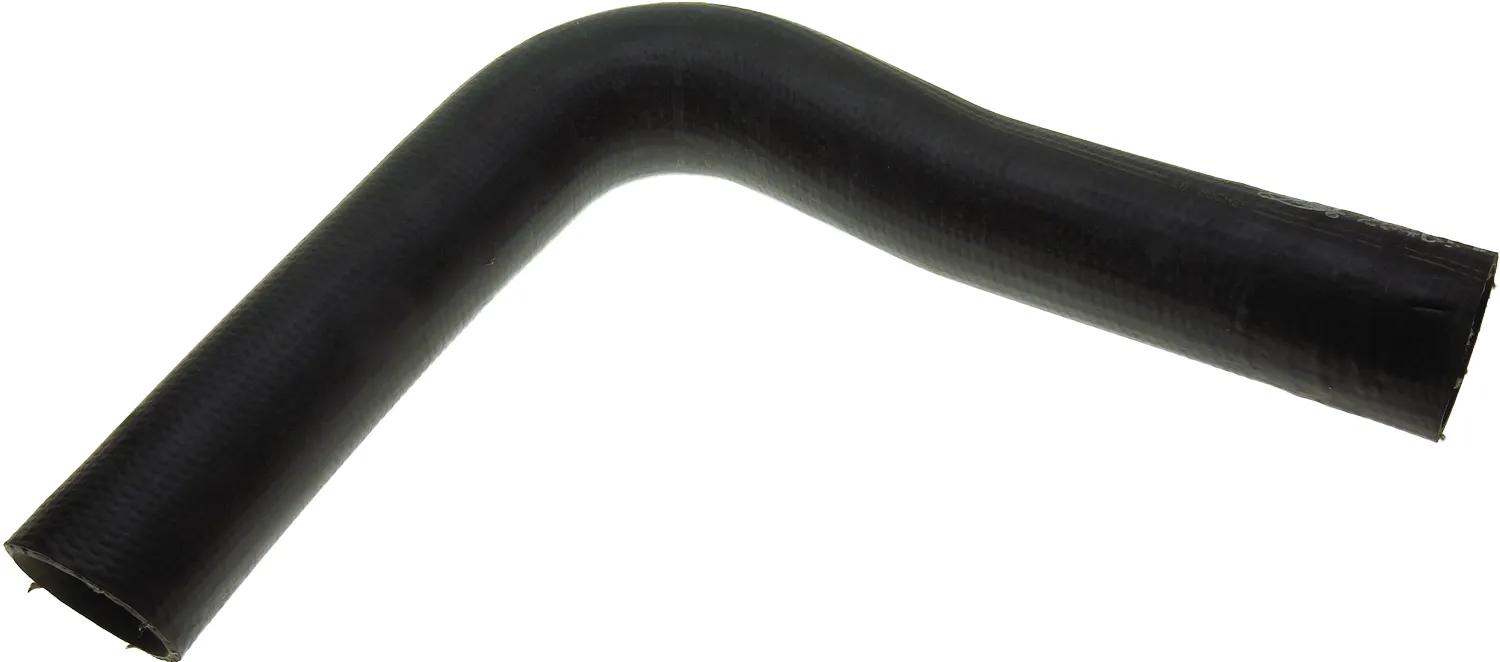

Molded Coolant Hose, EPDM, L: 24-13/64 in, ID: 2-1/4 in
#GAT20401
Product Overview
Mounting tool
Features & Benefits
- Approved for marine applications
- Engineered to resist electrochemical degradation - the leading cause of hose failure
- Meets SAE 20R3 EC Class D1 under 25mm (1") ID, SAE 20R4 EC Class D1 for 25mm (1") ID and over
- Specifically engineered materials resist vacuum collapse to reduce the need for internal springs in many applications
- Custom shapes available with minimum order quantity and setup charge
- Recommended for upper, lower, by-pass, heater and other coolant hose applications
- Note: Gates recommends replacing hose clamps each time a new coolant hose is installed
- EPDM tube, synthetic fiber knit reinforcement, heat- and ozone-resistant EPDM cover
Specifications
| Contains Spring | Yes |
| Inside Diameter 1 (in) | 2-1/4 in (5.72 cm) |
| Inside Diameter 2 (in) | 2-1/4 in (5.72 cm) |
| Length | 24-13/64 in (61.47 cm) |
| Material | EPDM |
| Modular Hose | No |
| Note | Gates recommends replacing standard worm drive and spring loaded clamps with Gates PowerGrip SB Clamps each time a new coolant hose is installed. |
| Number of Branches | 0 |
| Temperature Range | -40°F @ 275°F (-40°C @ 135°C) |
| Weight | 2.18 lb (0.99 kg) |
Interchanges & Equivalent parts:
| 2055108 |
| 2087305 |
| 60833 |
| 704548 |
| 791812 |
| 208950R31 |
| 208951R21 |
| 208951R3 |
| 208951R31 |
| 208952R21 |
| 208952R3 |
| 208952R31 |
| 24006L |
| 4815420 |
| 535333M1 |
| 7791812 |
| CH401 |
| KM-712 |
| MH0401 |
| MH363 |
| 208950R21 |
