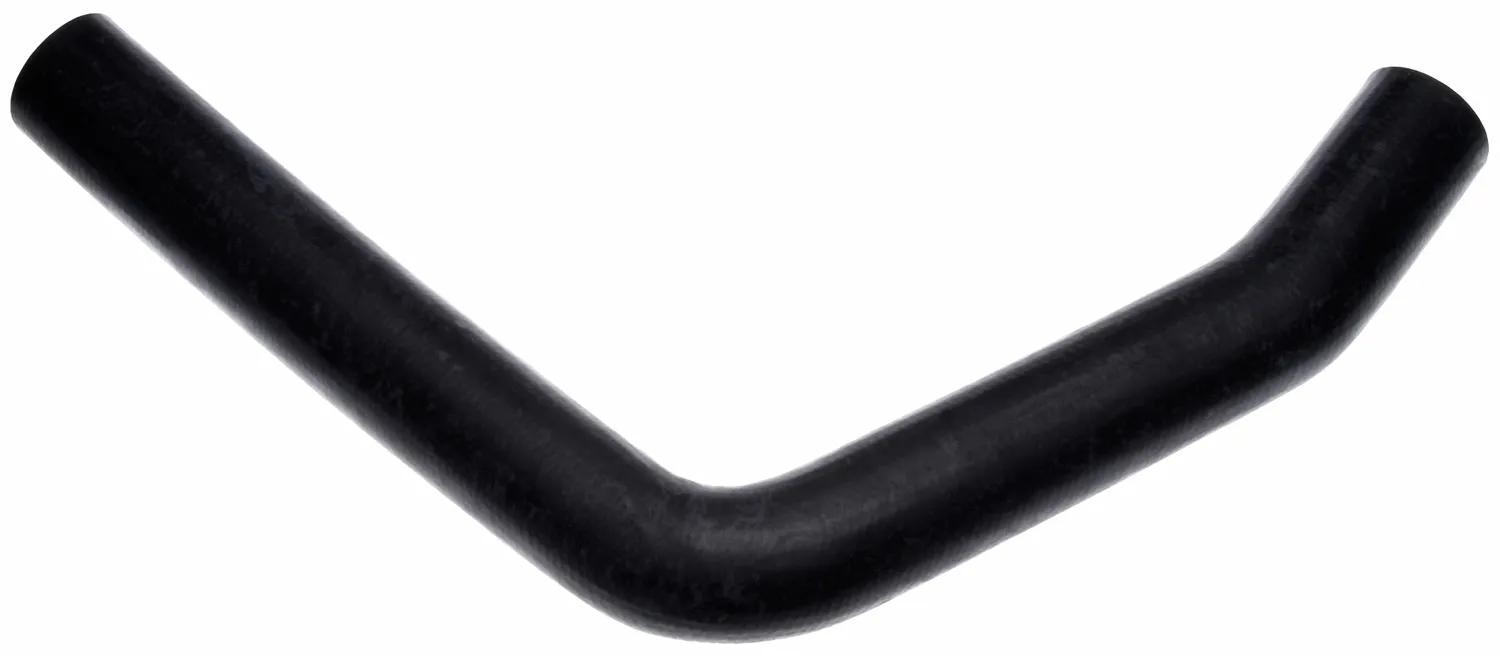

Molded Coolant Hose, EPDM, L: 35-1/2 in, ID: 2-1/2 in
#GAT23171
Caractéristiques et avantages
- Approved for marine applications
- Engineered to resist electrochemical degradation - the leading cause of hose failure
- Meets SAE 20R3 EC Class D1 under 25mm (1") ID, SAE 20R4 EC Class D1 for 25mm (1") ID and over
- Specifically engineered materials resist vacuum collapse to reduce the need for internal springs in many applications
- Custom shapes available with minimum order quantity and setup charge
- Recommended for upper, lower, by-pass, heater and other coolant hose applications
- Note: Gates recommends replacing hose clamps each time a new coolant hose is installed
- EPDM tube, synthetic fiber knit reinforcement, heat- and ozone-resistant EPDM cover
Spécifications
| Caution | Do not use for fuel or oil transfer applications. |
| Contains Spring | No |
| Inside Diameter 1 (in) | 2-1/2 in (6.35 cm) |
| Inside Diameter 2 (in) | 2-1/2 in (6.35 cm) |
| Length | 35-1/2 in (90.17 cm) |
| Material | EPDM |
| Modular Hose | No |
| Note | Gates recommends replacing standard worm drive and spring loaded clamps with Gates PowerGrip SB Clamps each time a new coolant hose is installed. |
| Number of Branches | 0 |
| Temperature Range | -40°F @ 275°F (-40°C @ 135°C) |
| Weight | 2.4 lb (1.09 kg) |
Interchanges et pièces équivalentes:
| 9832 |
| 0522002001 |
| 26556X |
| MH3171 |
| 0522002000 |
