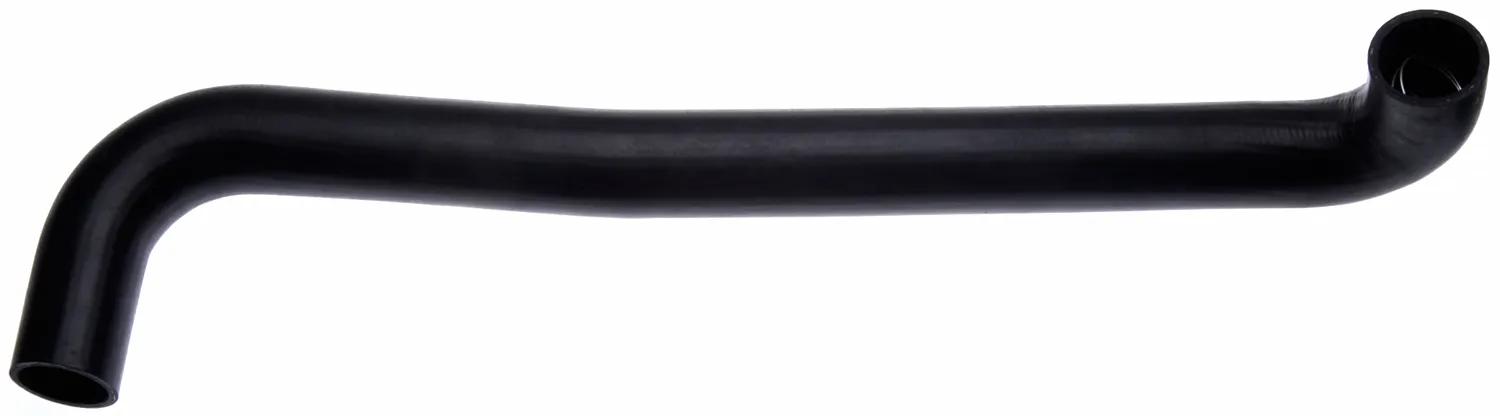

Molded Coolant Hose, EPDM, L: 35-45/64 in, ID: 2-1/64 in
#GAT21854
Features & Benefits
- Approved for marine applications
- Engineered to resist electrochemical degradation - the leading cause of hose failure
- Meets SAE 20R3 EC Class D1 under 25mm (1") ID, SAE 20R4 EC Class D1 for 25mm (1") ID and over
- Specifically engineered materials resist vacuum collapse to reduce the need for internal springs in many applications
- Custom shapes available with minimum order quantity and setup charge
- Recommended for upper, lower, by-pass, heater and other coolant hose applications
- Note: Gates recommends replacing hose clamps each time a new coolant hose is installed
- EPDM tube, synthetic fiber knit reinforcement, heat- and ozone-resistant EPDM cover
Specifications
| Caution | Do not use for fuel or oil transfer applications. |
| Contains Spring | Yes |
| Inside Diameter 1 (in) | 2-1/64 in (5.13 cm) |
| Inside Diameter 2 (in) | 2-1/64 in (5.13 cm) |
| Material | EPDM |
| Modular Hose | No |
| Note | Gates recommends replacing standard worm drive and spring loaded clamps with Gates PowerGrip SB Clamps each time a new coolant hose is installed. |
| Number of Branches | 0 |
| Temperature Range | -40°F @ 275°F (-40°C @ 135°C) |
| Weight | 3.14 lb (1.42 kg) |
Interchanges & Equivalent parts:
| 71505 |
| E8HT 8260 SA |
| E8HZ 8260 N |
| MH1854 |
| 26192X |
