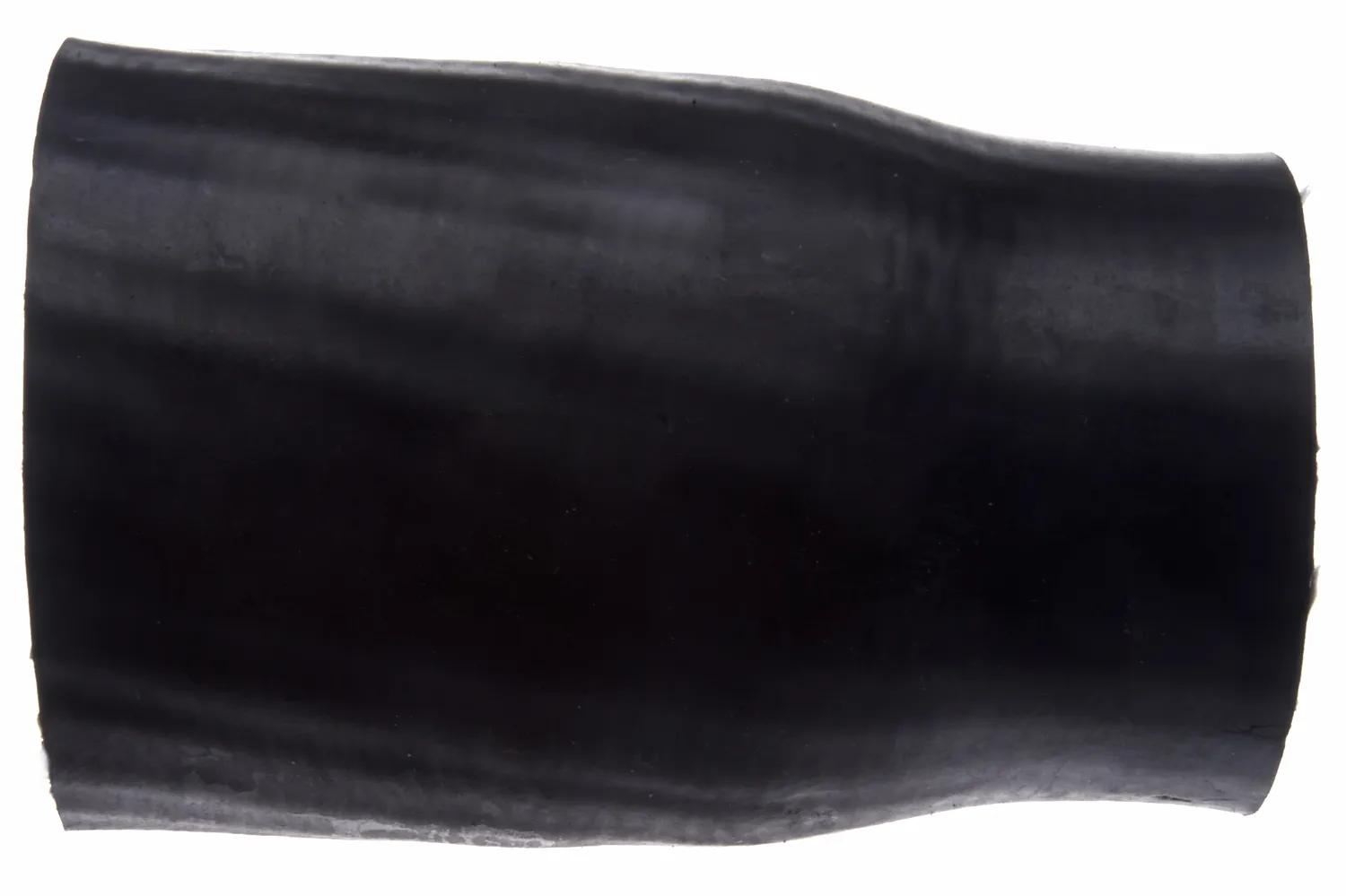

Molded Coolant Hose, EPDM, L: 5 in, ID: 2-1/2 in
#GAT21400
Features & Benefits
- Approved for marine applications
- Engineered to resist electrochemical degradation - the leading cause of hose failure
- Meets SAE 20R3 EC Class D1 under 25mm (1") ID, SAE 20R4 EC Class D1 for 25mm (1") ID and over
- Specifically engineered materials resist vacuum collapse to reduce the need for internal springs in many applications
- Custom shapes available with minimum order quantity and setup charge
- Recommended for upper, lower, by-pass, heater and other coolant hose applications
- Note: Gates recommends replacing hose clamps each time a new coolant hose is installed
- EPDM tube, synthetic fiber knit reinforcement, heat- and ozone-resistant EPDM cover
Specifications
| Caution | Do not use for fuel or oil transfer applications. |
| Contains Spring | No |
| Inside Diameter 1 (in) | 2-1/2 in (6.35 cm) |
| Inside Diameter 2 (in) | 2-1/2 in (6.35 cm) |
| Length | 5 in (12.7 cm) |
| Material | EPDM |
| Modular Hose | No |
| Note | Gates recommends replacing standard worm drive and spring loaded clamps with Gates PowerGrip SB Clamps each time a new coolant hose is installed. |
| Number of Branches | 0 |
| Temperature Range | -40°F @ 275°F (-40°C @ 135°C) |
| Weight | 0.79 lb (0.36 kg) |
Interchanges & Equivalent parts:
| 2044836 |
| 20956 |
| 583942 |
| 61142 |
| 7681 |
| 923 |
| 027068203 |
| 027088203 |
| 20156S |
| 204220001 |
| 204220010 |
| 204220011 |
| 7068203 |
| 8001495 |
| 8001773 |
| 8001783 |
| B70923 |
| B8QH 8286 C |
| KM-1338 |
| MH1400 |
| R33901R |
| R57396 |
| V1092071 |
| 027068202 |
