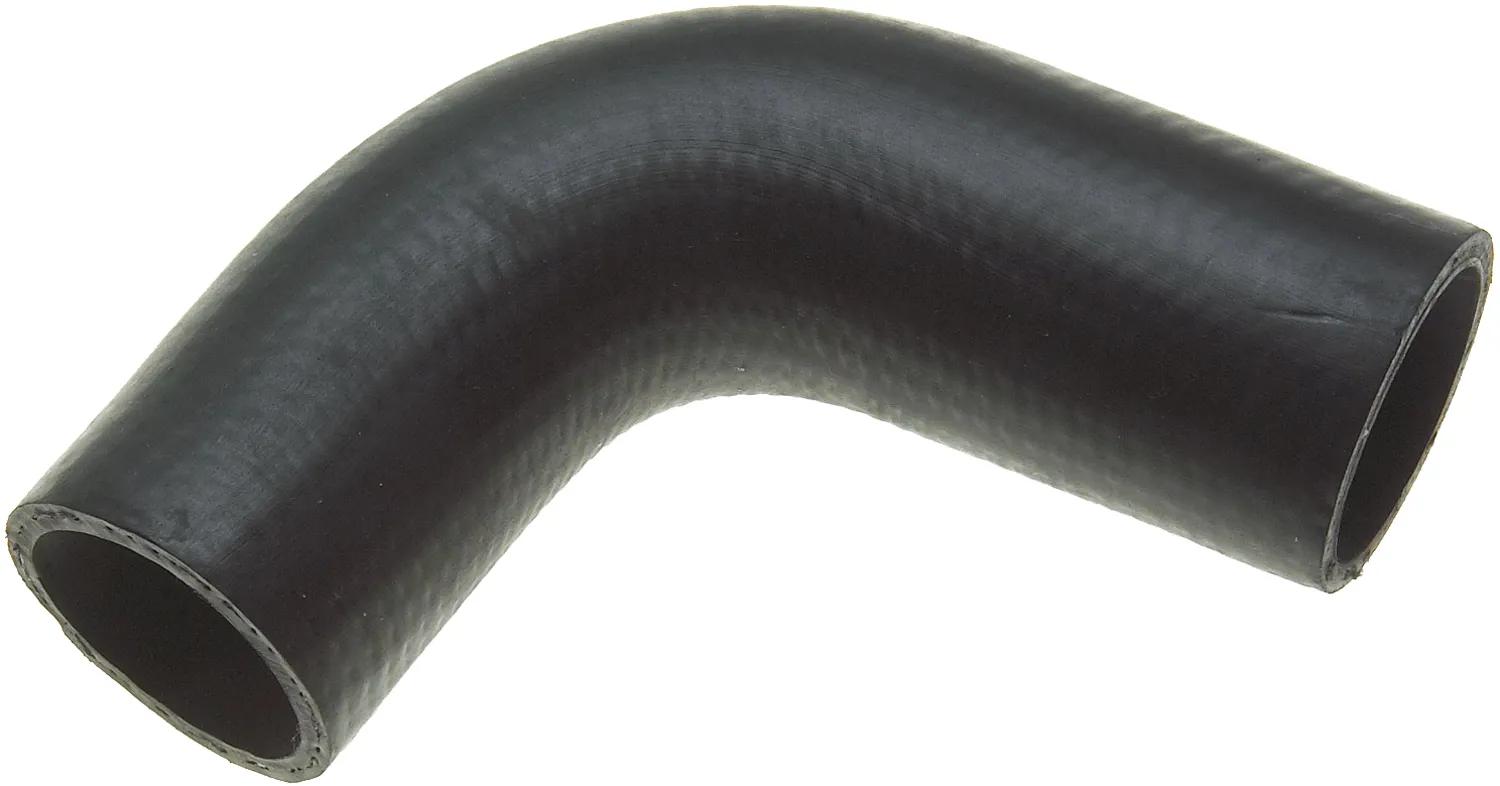

Molded Coolant Hose, L: 7-29/32 in, ID: 1-3/4 in

#GAT20357

Features & Benefits

Engineered to resist electrochemical degradation - the leading cause of hose failure

Meets SAE 20R3 EC Class D1 under 25mm (1") ID, SAE 20R4 EC Class D1 for 25mm (1") ID and over

Specifically engineered materials resist vacuum collapse to reduce the need for internal springs in many applications

Recommended for upper, lower, by-pass, heater and other coolant hose applications

Note: Gates recommends replacing hose clamps each time a new coolant hose is installed

EPDM tube, synthetic fiber knit reinforcement, heat- and ozone-resistant EPDM cover

Caution	Do not use for fuel or oil transfer applications.
Contains Spring	No
Inside Diameter 1 (in)	1-3/4 in (4.45 cm)
Inside Diameter 2 (in)	1-3/4 in (4.45 cm)
Length	7-29/32 in (20.09 cm)
Material	EPDM
Modular Hose	No
Note	Gates recommends replacing standard worm drive and spring loaded clamps with Gates PowerGrip SB Clamps each time a new coolant hose is installed.
Number of Branches	0
Temperature Range	-40°F @ 275°F (-40°C @ 135°C)
Weight	0.53 lb (0.24 kg)
