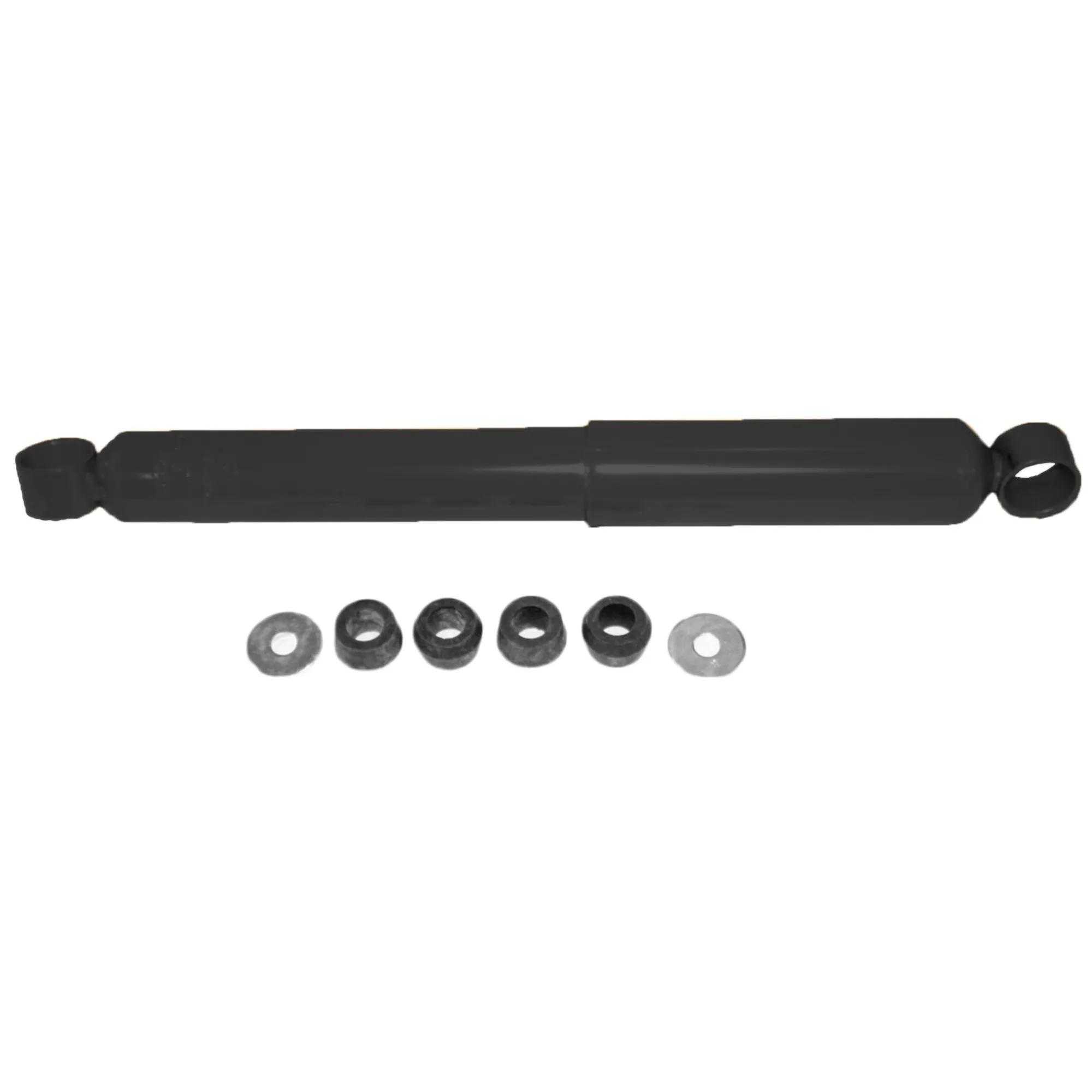

Monroe Gas Charged Shock Absorber, Comp 13-3/8 in, Ext 21-1/2 in, Stroke 8-1/8 in, L3/L3 Mount, w/ Dust Shield
#MON66618
Product Overview
The Monroe® Magnum® shock absorber for class 3-6 vehicles is Gas Charged for quicker response and a stable, more comfortable ride. Designed to handle the demands of high mileage and severe use vehicles, replace worn-out units with Magnum® shocks to help reduce excessive vibration.
Features & Benefits
- 5/8 in (15.9 mm) Diameter Piston Rod (On Most Applications)
- Resistance & Arc-Welded Mounts, Provide 9,500 lbs (4,309 kg) Of Tensile Strength For Maximum Durability (On Most Applications)
- 1-3/8 in (34.9 mm) Bore (On Most Applications)
- Multi-Lip Fluid Seal Designed For Smooth Performance, Long Life & Reduced Friction
- 10-Stage Full Displaced Valving (On Most Applications)
- 2 in Or 2-3/8 in (50.8 mm Or 60.3 mm) Reserve Tube (Where Required)
- Patented Unique Hydraulic Rebound Lockout (When Required)
- BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
Specifications
| Body Diameter | 2 in or 2-3/8 in |
| Compressed Length | 13-3/8 in |
| Dust Shield | Yes |
| Extended Length | 21-1/2 in |
| Lower Mount | L3 |
| Parts Pack | MONP575 |
| Stroke Inch | 8-1/8 in |
| Upper Mount | L3 |
| Finish | Painted |
| Shock Type | Gas Charged |
| Travel Length | 8.125 in |
| Manufacturer Part Number | 66618 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 660183 |
| 66618 |
| M66618 |
| 8516306660 |
| 8971166500 |
| 8971751260 |
| 8972536510 |
| 8972536640 |
| 94033786 |
| 9516306662 |
| 97175126 |
| 97253664 |
| AMS660183 |
| 308646C91 |
| 345605 |
| 57366618 |
| 660183MT |
| 661183 |
| 8160116 |
| 8180259 |
| 83159 |
| 83404 |
| 8972536512 |
| 8972536650 |
| 8972536651 |
| 8980980580 |
| 8980980581 |
| 8980980590 |
| 8980980591 |
| 8983162270 |
| 8983162280 |
| 8983439850 |
| 8983439860 |
| 8983807460 |
| 8983807470 |
| 9160406 |
| 9516306660 |
| 97253651 |
| 97253665 |
| 98098058 |
| 98098059 |
| 98316227 |
| 98343985 |
| 98343986 |
| F347226 |
| HD E144 |
| HD12140571 |
| KG6198 |
| KG6199 |
| MG60128 |
