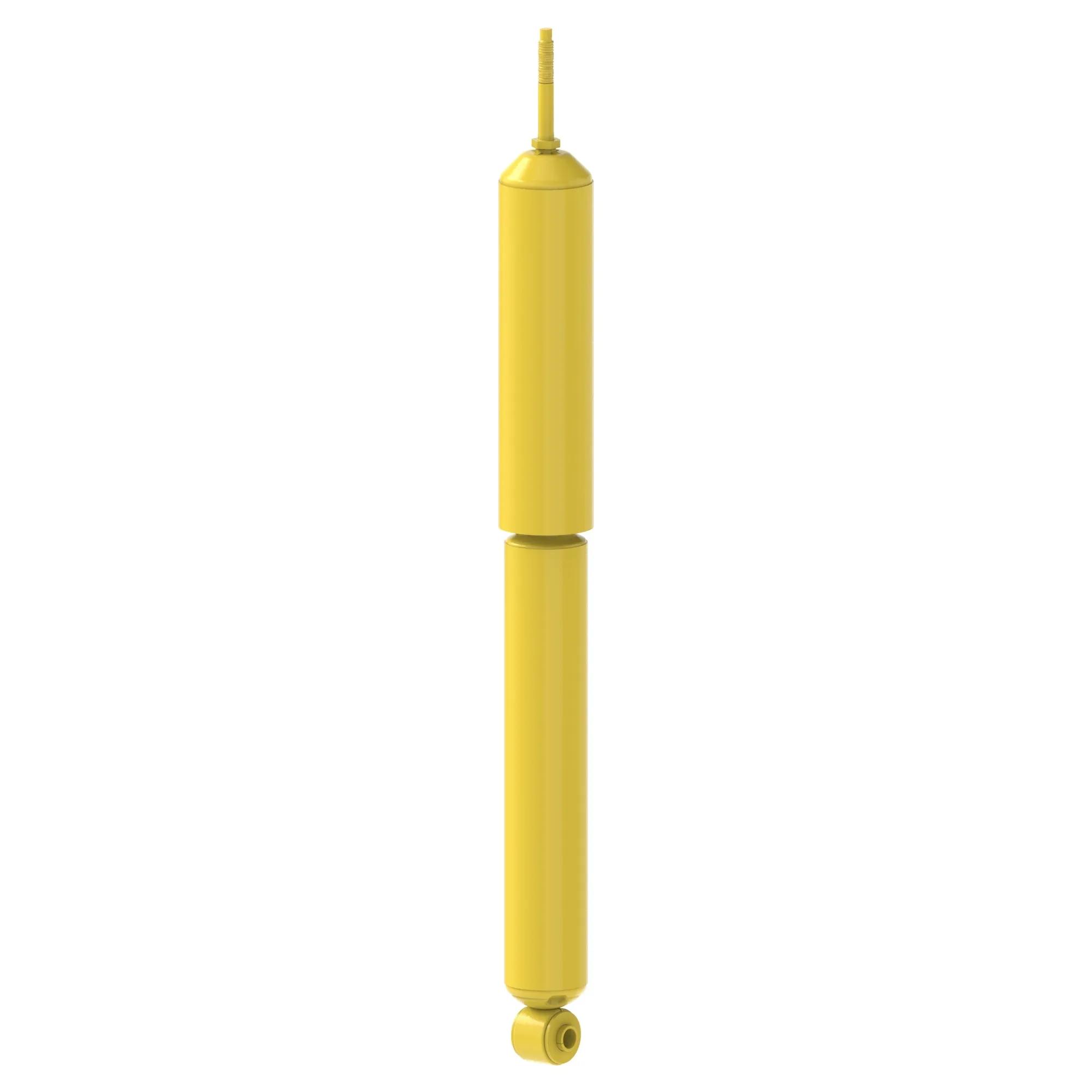

Monroe Gas Charged Shock Absorber for Trucks/Vans, Comp 13-1/8 in, Ext 21-3/4 in, Stroke 8-5/8 in
#MON34761
Product Overview
Designed for midsize and full-size trucks and vans, Monroe® Gas-Magnum® shock absorbers provide firm control without a harsh ride. With up to twice the fluid capacity of standard 1 in bore shocks, Gas-Magnum shocks work more efficiently with less effort. Designed for mid- to full-size light-duty work trucks and vans
Features & Benefits
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- LONGER SERVICE LIFE -- Larger bore and bigger 2 in reserve tube work together to hold more oil for greater capacity to allow the shock to work efficiently for controlled ride and longer service life
- BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
Specifications
| Compressed Bumper Stop | No |
| Compressed Length | 13-1/8 in |
| Cylinder Included | No |
| Dust Shield | Yes |
| Dust Shield Material | Metal |
| Extended Bumper Stop | No |
| Extended Hydraulic Lockout | No |
| Extended Length | 21-3/4 in |
| Lower Mount | Loop Bushing& Sleeve Mount - 15/32 in Sleeve ID x 1-1/2 in Sleeve OAL |
| Stroke Inch | 8-5/8 in |
| Upper Mount | Stem Mount - 2-3/8 in Stem Length x 3/8 in-16 Thread Pitch |
| Shock Type | Gas Charged |
| Travel Length | 8.625 in |
| Manufacturer Part Number | 34761 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 34761 |
| M34761 |
| 91773 |
