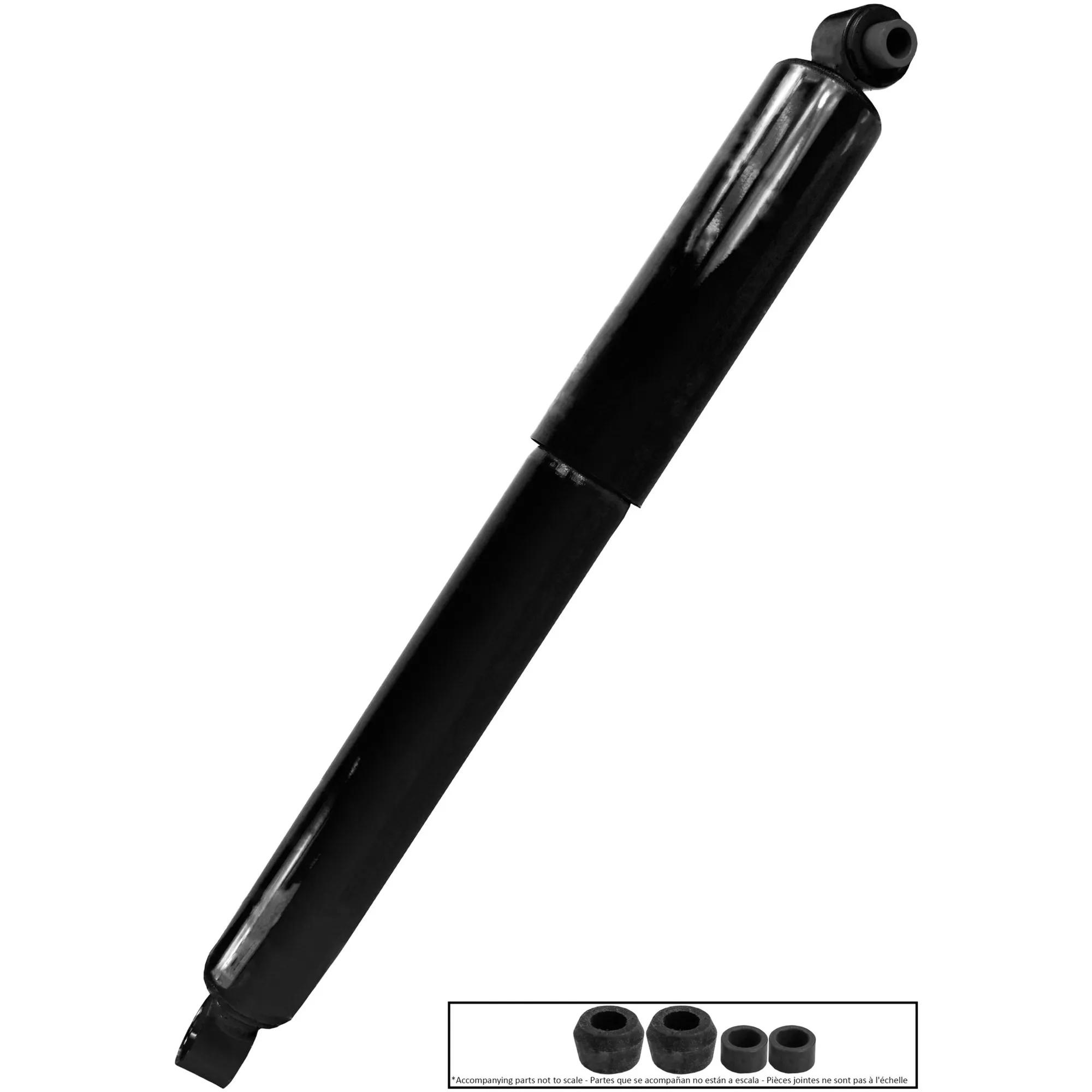

Monroe Gas-Grande 65 Shock Absorber, 16-1/8 in Compressed, 25-1/2 in Extended, 9-3/8 in Stroke, LS62 Upper Mount, L3 Lower Mount
#MON65128
Product Overview
The Monroe® Gas-Grande 65 Shock Absorber is a Gas Charged, large-bore shock specifically designed for air spring and taper leaf suspensions on class 6-8 heavy-duty trucks and buses. Its nitrogen gas charge provides fast response essential for today’s demanding truck suspension systems, maintaining tire-to-road contact by reducing aeration and shock fade for improved ride and handling. Shock Absorber, Painted, Metal, 16.125 in Compressed Length, 25.5 in Extended Length, L3 Lower Mount, 9.375 in Travel Length, LS62 Upper Mount
Features & Benefits
- Large 1-3/4 in (44.5 mm) Piston Bore Provides Efficient Damping Control
- Hardened 23/32 in (18 mm) Diameter Chrome Piston Rod with Nitrocarburized Finish for Durability
- Heavy Wall Drawn Over Mandrel Pressure Tube
- 2-3/8 in (60.3 mm) Reserve Tube Holds More Fluid to Improve Performance (Most Applications)
- Patented Unique Hydraulic Rebound Lockout Prevents Over Extension and Protects Seal Assembly (Most Applications)
- Delivers Exceptional Control and Isolates Impact-Related Noise, Vibration, and Harshness
- 10-Stage Full Displaced Valving Tuned Specifically to Each Vehicle (Most Applications)
- Single-Lip, Low-Friction Oil Seal with PTFE Coating Reduces Friction and Extends Service Life
- Comes with Monroe’s 90-Day Risk-Free Ride Offer and Limited Commercial Warranty
- Shouldered and Bonded Bushings with Sleeve Protect Against Bushing Walkout
- Resistance & Arc-Welded Mounts Provide 15,000 lbs (6,804 kg) Tensile Strength for Maximum Durability
Specifications
| Compressed Length | 16-1/8 in |
| Dust Shield | Yes |
| Extended Length | 25-1/2 in |
| Lower Mount | L3 |
| Parts Pack | MONP1222 |
| Stroke Inch | 9-3/8 in |
| Type | Shock Absorber |
| Upper Mount | LS62 |
| Finish | Painted |
| Material | Metal |
| Shock Type | Gas Charged |
| Travel Length | 9.375 in |
| Manufacturer Part Number | 65128 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 65128 |
| M65128 |
| 1TX665617 |
| 650128 |
| 665617 |
| 85031 |
| B711000 |
| B711000PLUS |
