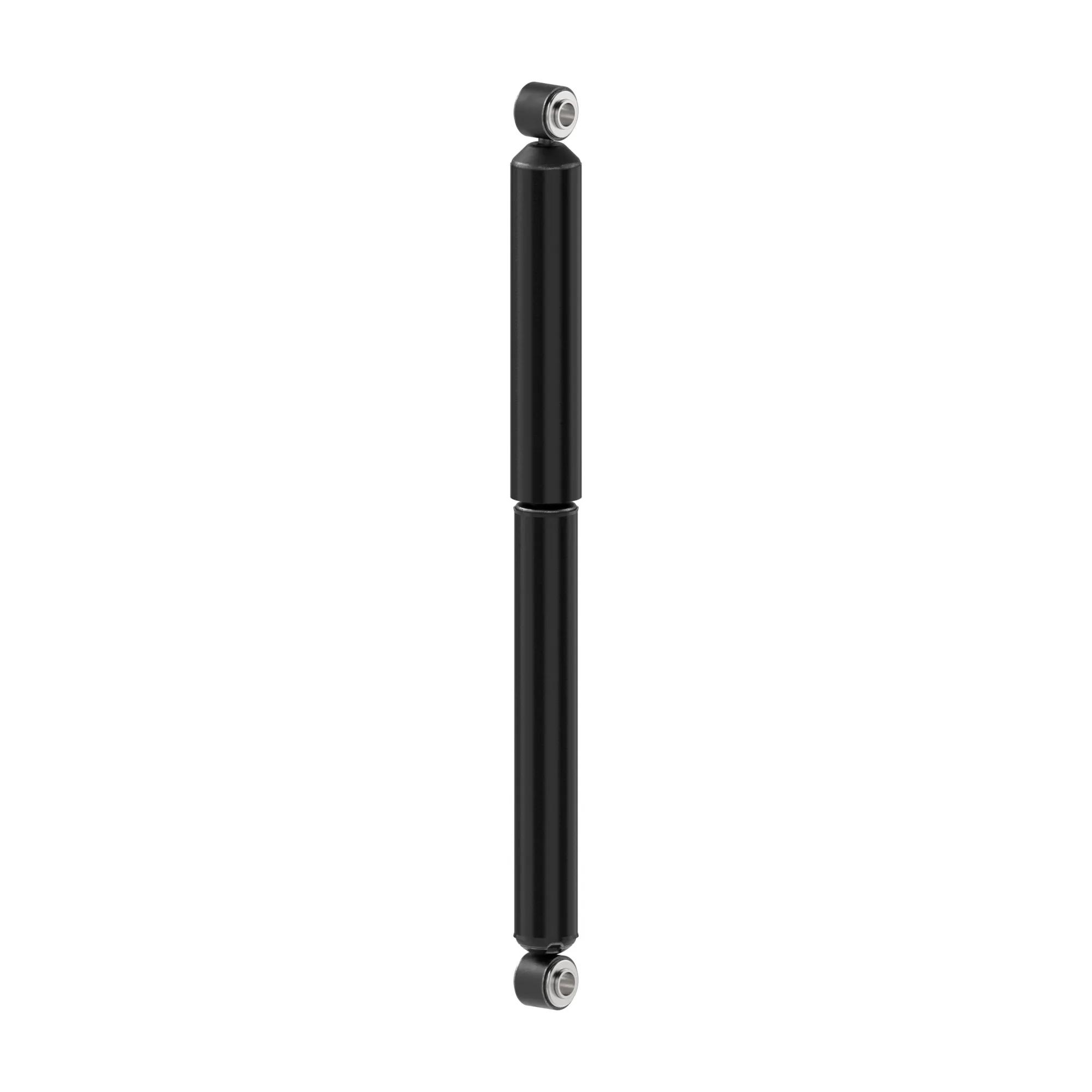

Monroe Gas-Magnum 60 Shock Absorber, 17-1/8 in Compressed Length, 27-1/2 in Extended Length, 1-3/8 in Bore, LS54 Upper/Lower Mount
#MON66884
Product Overview
The Monroe Gas-Magnum 60 Shock Absorber offers comprehensive coverage for hard-working trucks from Class 3 to 6. Gas Charged for quicker response and a stable, more comfortable ride, it is designed to handle the demands of high mileage and severe use vehicles. Replacing worn-out units with Gas-Magnum 60 shocks helps reduce excessive vibration and improves overall vehicle performance.Shock Absorber, Painted, Metal, 17.188 in Compressed Length, 27.953 in Extended Length, LS54 Lower Mount, 10.765 in Travel Length, LS54 Upper Mount
Features & Benefits
- Nitrogen gas charged for improved ride and handling, helps maintain tire-to-road contact by reducing aeration on most applications.
- For hardworking commercial vehicles - designed to handle the demands of high mileage and severe use Class 3-6 trucks and buses.
- Built to last - robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (on most applications).
- Multi-Lip fluid seal designed for smooth performance, long life, and reduced friction.
- Exceptional handling - 10-stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/8 in bore provides more efficient damping control to provide consistency and a smooth ride (most applications).
- Strong and durable - shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360 degrees for durability.
- Longer service life - bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications).
- Buy with confidence - comes with Monroe’s 90-day risk-free ride offer and limited commercial warranty.
- Reduced noise, vibration and harshness - delivers exceptional control and isolates impact-related noise, vibration, and harshness under most driving conditions.
- Consistent ride - all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while 2 in or 2-1/4 in reserve tube holds more fluid to improve performance (when required).
Specifications
| Compressed Length | 17-1/8 in |
| Dust Shield | Yes |
| Extended Length | 27-1/2 in |
| Lower Mount | LS54 |
| Stroke Inch | 1-3/8 in |
| Type | Shock Absorber |
| Upper Mount | LS54 |
| Finish | Painted |
| Material | Metal |
| Shock Type | Gas-Magnum 60 |
| Travel Length | 10.765 in |
| Manufacturer Part Number | 66884 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 660114 |
| 66884 |
| 66898 |
| 83125 |
| E-83201 |
| EE85006 |
| GAB83125 |
| M66884 |
| MON66898 |
| 1083201 |
| 14QK410M |
| 25625234 |
| 31806100 |
| 600114MT |
| 727601 |
| 728618 |
| AMS600114 |
| AMS660114 |
| CAX898 |
| M0044012 |
