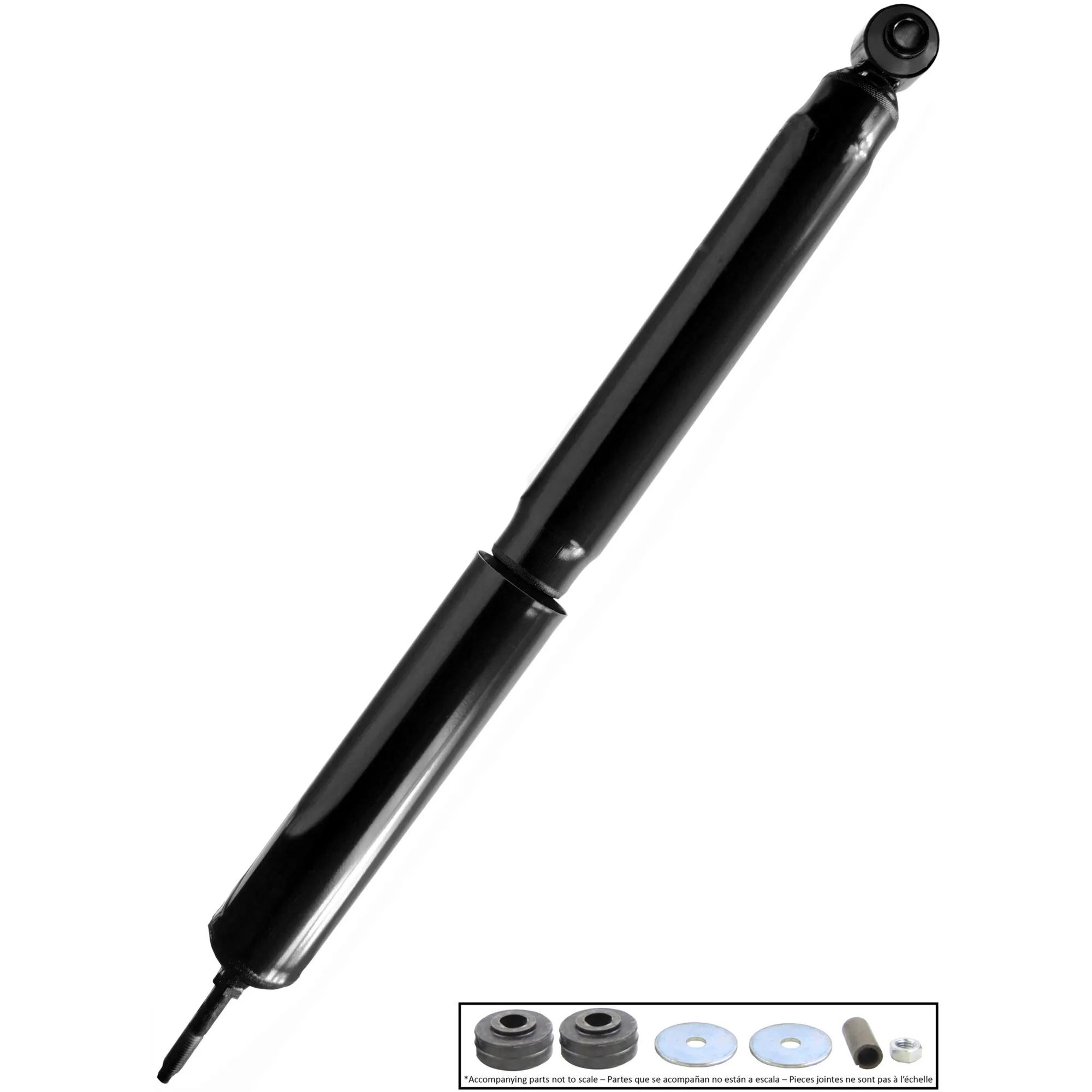

Monroe Gas-Magnum 60 Shock Absorber, Compressed 16-1/8 in, Extended 27-1/2 in, Stroke 11-3/8 in, S5 Upper, LS53 Lower Mount
#MON66924
Product Overview
The Monroe Gas-Magnum 60 Shock Absorber offers comprehensive coverage for hard-working trucks from Class 3 to 6. Gas Charged for quicker response and a stable, more comfortable ride, it is designed to handle the demands of high mileage and severe use vehicles. Replacing worn-out units with Monroe Gas-Magnum 60 shocks helps reduce excessive vibration and improves ride quality.Shock Absorber, Painted, Metal, 16.125 in Compressed Length, 27.5 in Extended Length, LS53 Lower Mount, 11.375 in Travel Length, S5 Upper Mount
Features & Benefits
- Nitrogen gas charged for improved ride and handling, helps maintain tire-to-road contact by reducing aeration on most applications.
- For hardworking commercial vehicles - designed to handle the demands of high mileage and severe use Class 3-6 trucks and buses.
- Built to last - robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (on most applications).
- Multi-Lip fluid seal designed for smooth performance, long life, and reduced friction.
- The Gas-Series 60 Shock Absorber is Gas Charged for quicker response and a stable, more comfortable ride. Replacing worn-out units with hard-working Gas-Series 60 shocks can help reduce excessive vibration.
- Exceptional handling - 10-stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/8 in bore provides more efficient damping control to provide consistency and a smooth ride (most applications).
- Improves performance - nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade.
- Strong and durable - shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360 degrees for durability.
- Longer service life - bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications).
- Buy with confidence - comes with Monroe’s 90-day risk free ride offer and limited commercial warranty.
- Reduced noise, vibration and harshness - delivers exceptional control and isolates impact-related noise, vibration, and harshness under most driving conditions.
- Consistent ride - all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while 2 in or 2-1/4 in reserve tube holds more fluid to improve performance (when required).
Specifications
| Application | 2003-2016 IC Corporation CE School Bus (Rear); 2008-2015 IC Corporation BE School Bus (Rear); 2003-2016 IC Corporation RE School Bus (Rear); 2004-2015 Ford F-650 (Rear); 2004-2015 Ford F-750 (Rear); 2002-2012 International 4300 (Rear); 2002-2012 International 4300LP (Rear); 2002-2012 International 4400 (Rear); 2002-2012 International 4400LP (Rear); 1986-1992 International 1652SC (Rear); 1987-1992 International 1452SC (Rear); 1987-1990 International M1600 Metro II (Rear); 1981-2002 International 2554 (Rear); 1981-2003 International 2574 (Rear); 1989-2002 International 2654 (Rear); 1981-2003 International 2674 (Rear); 1990-1994 International 3700 (Rear) (Body: Bus (School) - Cab Forward); 1987-2004 International 3800 (Rear) (Body: Bus (School) - Cab Forward); 1991-1996 International 3900FC (Rear); 1990-1994 International 4600LP (Rear); 2001-2002 International 4700LP (Rear); 1980-1982 International S1823 (Rear); 1979-1989 International F1954 (Rear); 1989-1994 International 8300 (Rear); 1990-2003 International 8100 (Rear); 1990-1998 International 8200 (Rear); 1980-1984 International 1724 (Rear); 1981-1989 International 1754 (Rear); 1979-1984 International 1824 (Rear); 1981-1989 International 1854 (Rear); 1979-1982 International 1924 S (Rear); 1979-1982 International 1925 S (Rear); 1979-1989 International 1954 (Rear); 1981-1989 International 1955 (Rear); 1984-1989 International 2155 (Rear); 1979-1981 International F1924 (Rear); 1980-1989 International 1654 (Rear) |
| Compressed Length | 16-1/8 in |
| Dust Shield | Yes |
| Extended Length | 27-1/2 in |
| Lower Mount | LS53 |
| Parts Pack | MONP01303 |
| Stroke Inch | 11-3/8 in |
| Upper Mount | S5 |
| Finish | Painted |
| Material | Metal |
| Shock Type | Gas-Magnum 60 |
| Travel Length | 11.375 in |
| Manufacturer Part Number | 66924 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 660129 |
| 66924 |
| E-83301 |
| E-83317 |
| M66924 |
| 3000098C91 |
| 3609400C1 |
| 3609400C2 |
| 501905C91 |
| 501906C1 |
| 501906C91 |
| 501906C92 |
| 506905C91 |
| 727628 |
| 727644 |
| E83301 |
