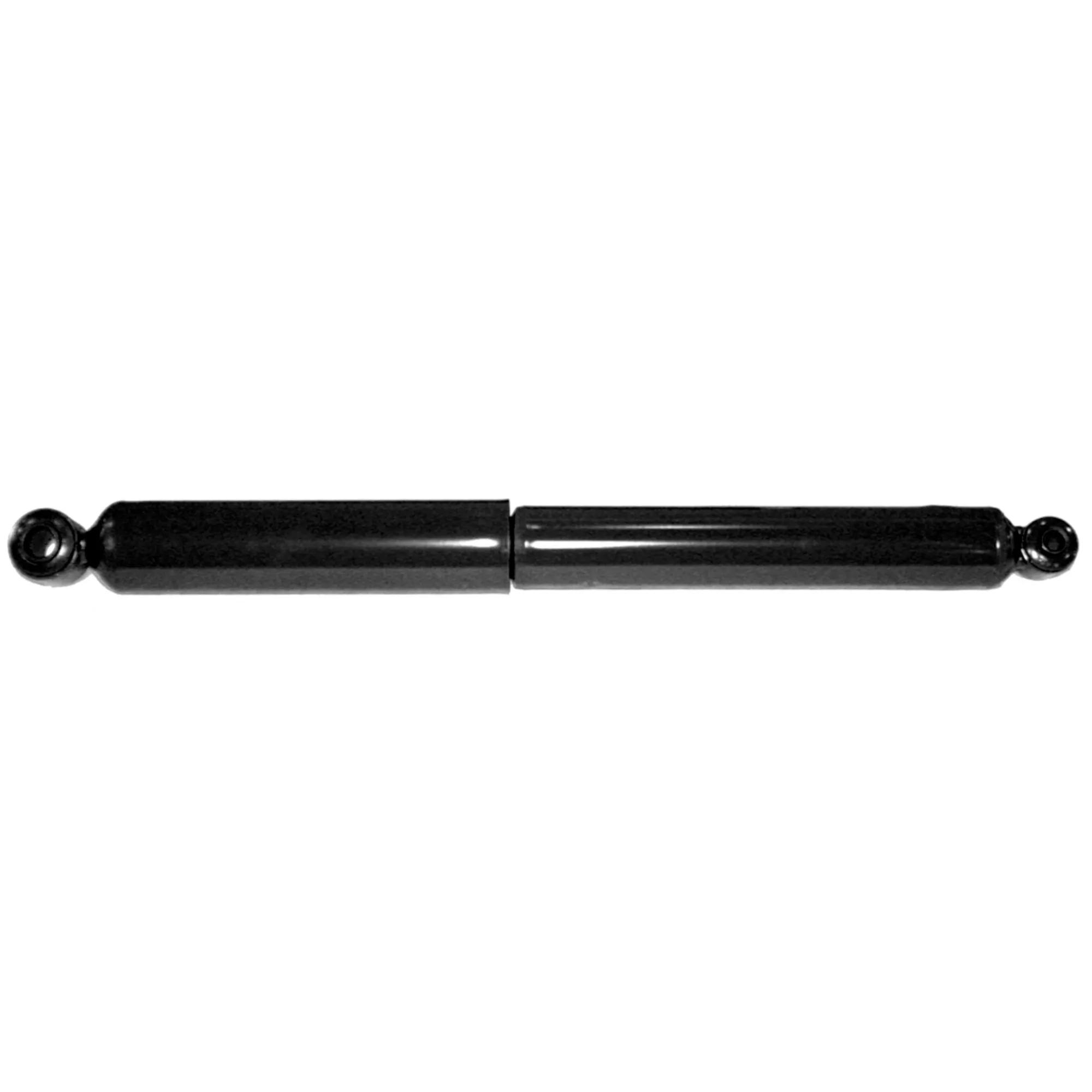

Monroe Gas-Magnum 60 Shock Absorber, Nitrogen Gas Charged, Comp 14-5/8 in, Ext 24-1/4 in, Stroke 9-5/8 in
#MON66697
Product Overview
The Monroe Gas-Magnum 60 Shock Absorber Offers Comprehensive Coverage For Hard-Working Trucks From Class 3 To 6. The Monroe Gas-Magnum 60 Shock Absorber Is Gas Charged For Quicker Respnse And A Stable, More Cofortable Ride. Replacing Worn-out Units With H
Features & Benefits
- FOR HARDWORKING COMMERCIAL VEHICLES -- Designed to handle the demands of high mileage and severe use class 3-6 trucks and buses
- CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while 2 in or 2-1/4 in reserve tube holds more fluid to improve performance (when required)
- EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/8 in bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
- STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
- BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (on most applications)
- LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
- REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration, and harshness under most driving conditions
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
Specifications
| Body Diameter | 2 in or 2-1/4 in |
| Compressed Length | 14-5/8 in |
| Extended Length | 24-1/4 in |
| Lower Mount | LS40 |
| Stroke Inch | 9-5/8 in |
| Type | Shock Absorber |
| Upper Mount | LS54 |
| Shock Type | Gas Charged (Nitrogen) |
| Travel Length | 9.625 in |
| Manufacturer Part Number | 66697 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 66697 |
| M66697 |
| 1615089000 |
| 1615475000 |
| 654958 |
| GAFP117253 |
| P117253 |
