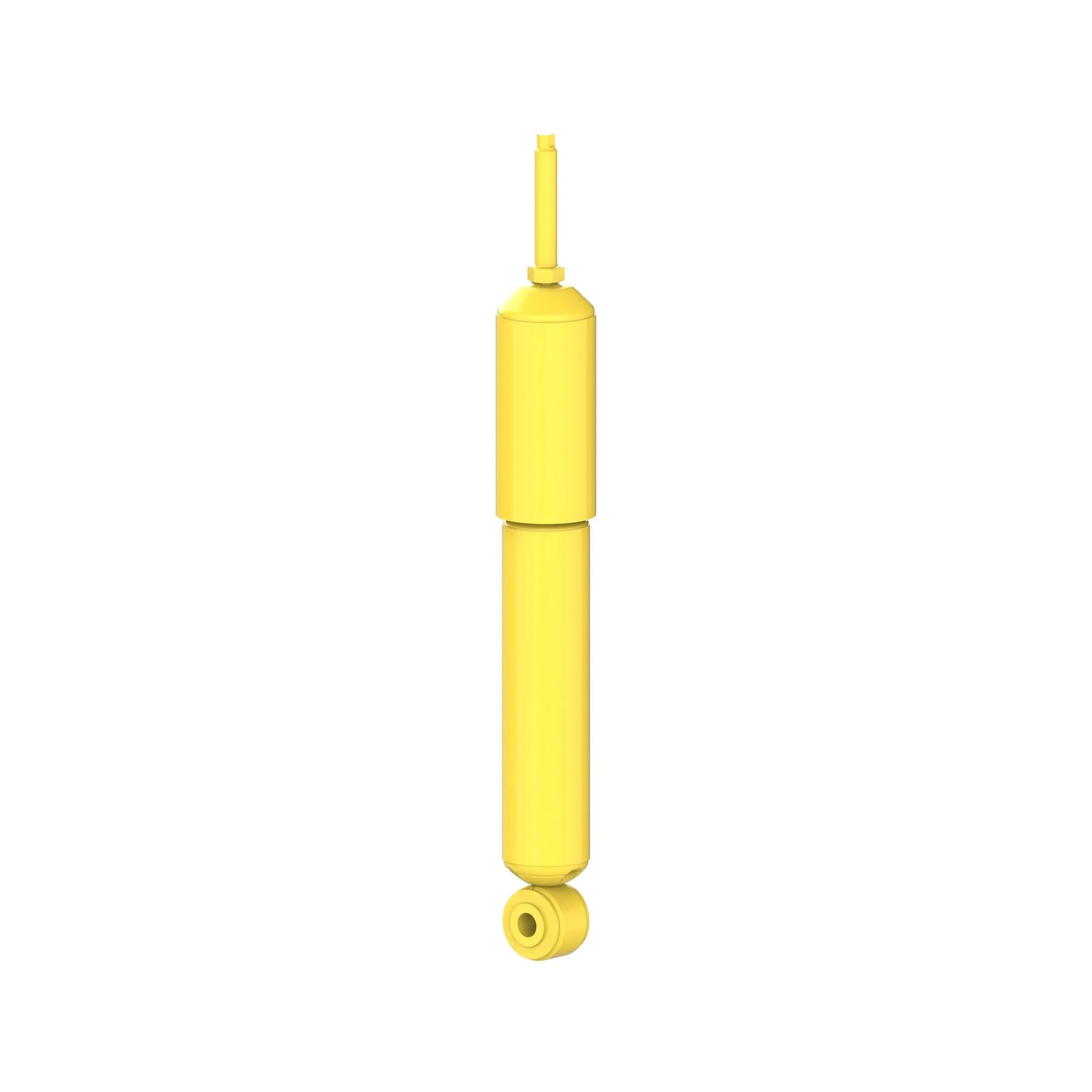

Monroe Gas-Magnum Shock Absorber, Comp 10-3/8 in, Ext 15-1/8 in, Stroke 4-3/4 in
#MON34504
Product Overview
Designed for midsize and full-size trucks and vans, Monroe® Gas-Magnum® shock absorbers provide firm control without a harsh ride. With up to twice the fluid capacity of standard 1 in bore shocks, Gas-Magnum shocks work more efficiently with less effort. Designed for mid- to full-size light-duty work trucks and vans.
Features & Benefits
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- LONGER SERVICE LIFE -- Larger bore and bigger 2 in reserve tube work together to hold more oil for greater capacity to allow the shock to work efficiently for controlled ride and longer service life
- BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
Specifications
| Compressed Bumper Stop | No |
| Compressed Length | 10-3/8 in |
| Dust Shield | Yes |
| Dust Shield Material | Metal |
| Extended Bumper Stop | Yes |
| Extended Hydraulic Lockout | No |
| Extended Length | 15-1/8 in |
| Lower Mount | Loop Bushing& Sleeve Mount - 35/64 in Sleeve ID x 1-5/16 in Sleeve OAL |
| Stroke Inch | 4-3/4 in |
| Upper Mount | Stem Mount - 2-5/8 in Stem Length x 1/2 in-13 Thread Pitch |
| Shock Type | Gas-Magnum |
| Travel Length | 4.75 in |
| Manufacturer Part Number | 34504 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 34504 |
| M34504 |
| 58817 |
| G61158 |
| 12140432 |
| 173696 |
| 19152876 |
| 19152878 |
| 19177927 |
| 19208003 |
| 19208627 |
| 19211023 |
| 20951274 |
| 20951275 |
| 210258 |
| 24060813 |
| 32350 |
| 341598 |
| 344383 |
| 37181 |
| 520135 |
| 530311 |
| 560272 |
| 560614 |
| 76504 |
| 88945479 |
| 88966866 |
| 88983817 |
| 930040 |
| G63817 |
| GM108 |
| HD12140879 |
| KG54340 |
| RS5288 |
| RS5295 |
| RS55288 |
| RS55295 |
| SH81925 |
| TS3431511B |
