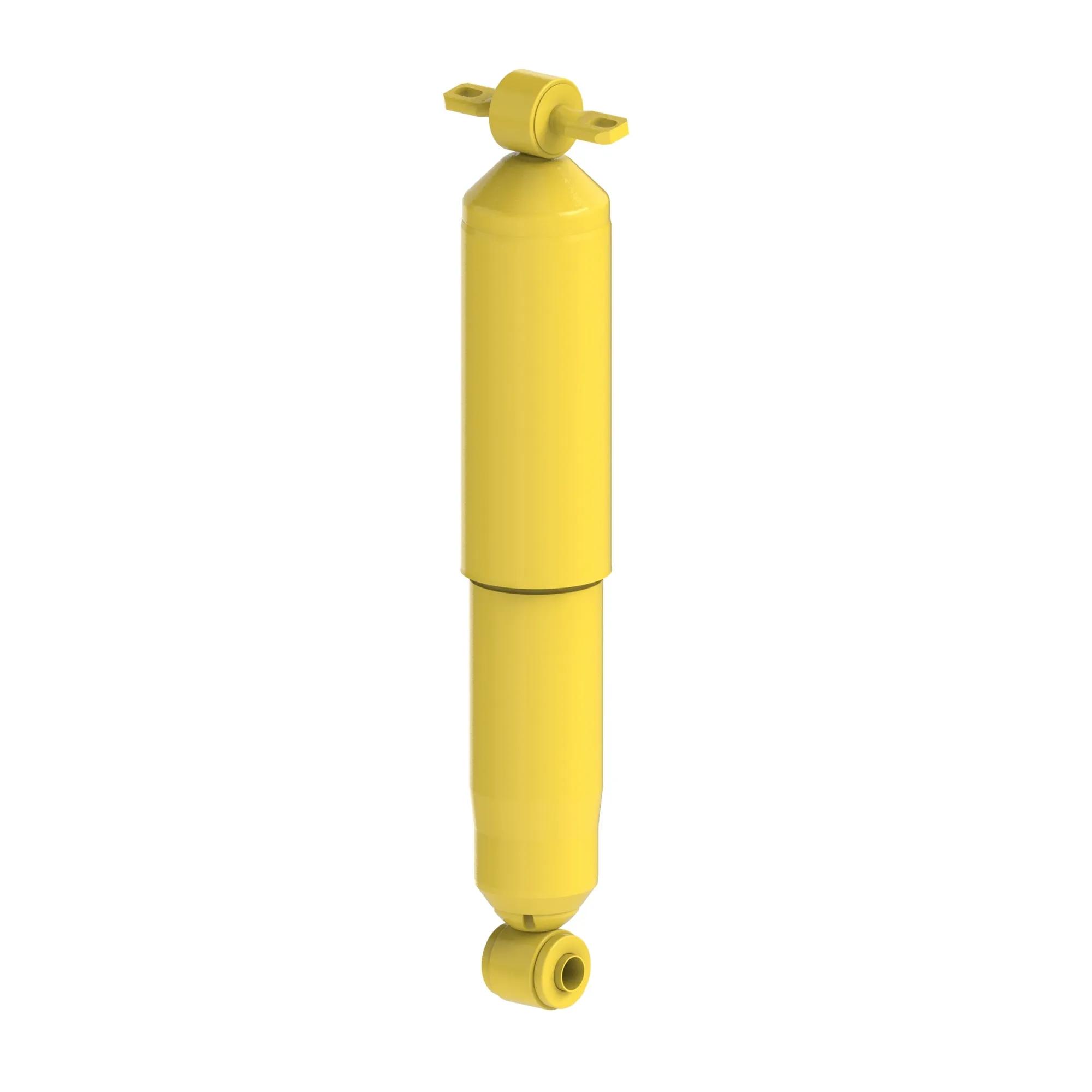

Monroe Gas-Magnum Shock Absorber, Comp: 14-5/8 in, Ext: 23-7/8 in, Stroke: 9-1/4 in
#MON34763
Product Overview
Designed for midsize and full-size trucks and vans, Monroe® Gas-Magnum® shock absorbers provide firm control without a harsh ride. With up to twice the fluid capacity of standard 1 in bore shocks, Gas-Magnum shocks work more efficiently with less effort. Designed for mid- to full-size light-duty work trucks and vans.
Features & Benefits
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- LONGER SERVICE LIFE -- Larger bore and bigger 2 in reserve tube work together to hold more oil for greater capacity to allow the shock to work efficiently for controlled ride and longer service life
- BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
Specifications
| Compressed Bumper Stop | No |
| Compressed Length | 14-5/8 in |
| Cylinder Included | No |
| Dust Shield | Yes |
| Dust Shield Material | Metal |
| Extended Bumper Stop | Yes |
| Extended Hydraulic Lockout | No |
| Extended Length | 23-7/8 in |
| Lower Mount | Loop Bushing& Sleeve Mount - 9/16 in Sleeve ID x 1-5/8 in Sleeve OAL |
| Stroke Inch | 9-1/4 in |
| Upper Mount | Cross Pin Mount - Closed Ended, 5/16 in Hole ID (Both Ends) x 2-7/8 in Pin Length (Hole Center to Center) |
| Shock Type | Gas-Magnum |
| Travel Length | 9.25 in |
| Manufacturer Part Number | 34763 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 34763 |
| M34763 |
| 12140213 |
| 20956377 |
| 23296353 |
| 24221948 |
| 251220 |
| 25856173 |
| 2701424145 |
| 2701711348 |
| 30780 |
| 32265 |
| 342466 |
| 342468 |
| 342524 |
| 342525 |
| 342526 |
| 344262 |
| 344263 |
| 344273 |
| 3450017 |
| 349009 |
| 37086 |
| 5601106 |
| 5601107 |
| 5601108 |
| 560675 |
| 58638 |
| 76763 |
| 84020664 |
| 84020665 |
| 84301663 |
| 84301664 |
| 84301665 |
| 911086 |
| G63638 |
| G63897 |
| GM120 |
| HD12140884 |
| JGT4170S |
| PM6001136 |
| S349009 |
| SBA72160 |
| SH81667 |
| TS3431712B |
