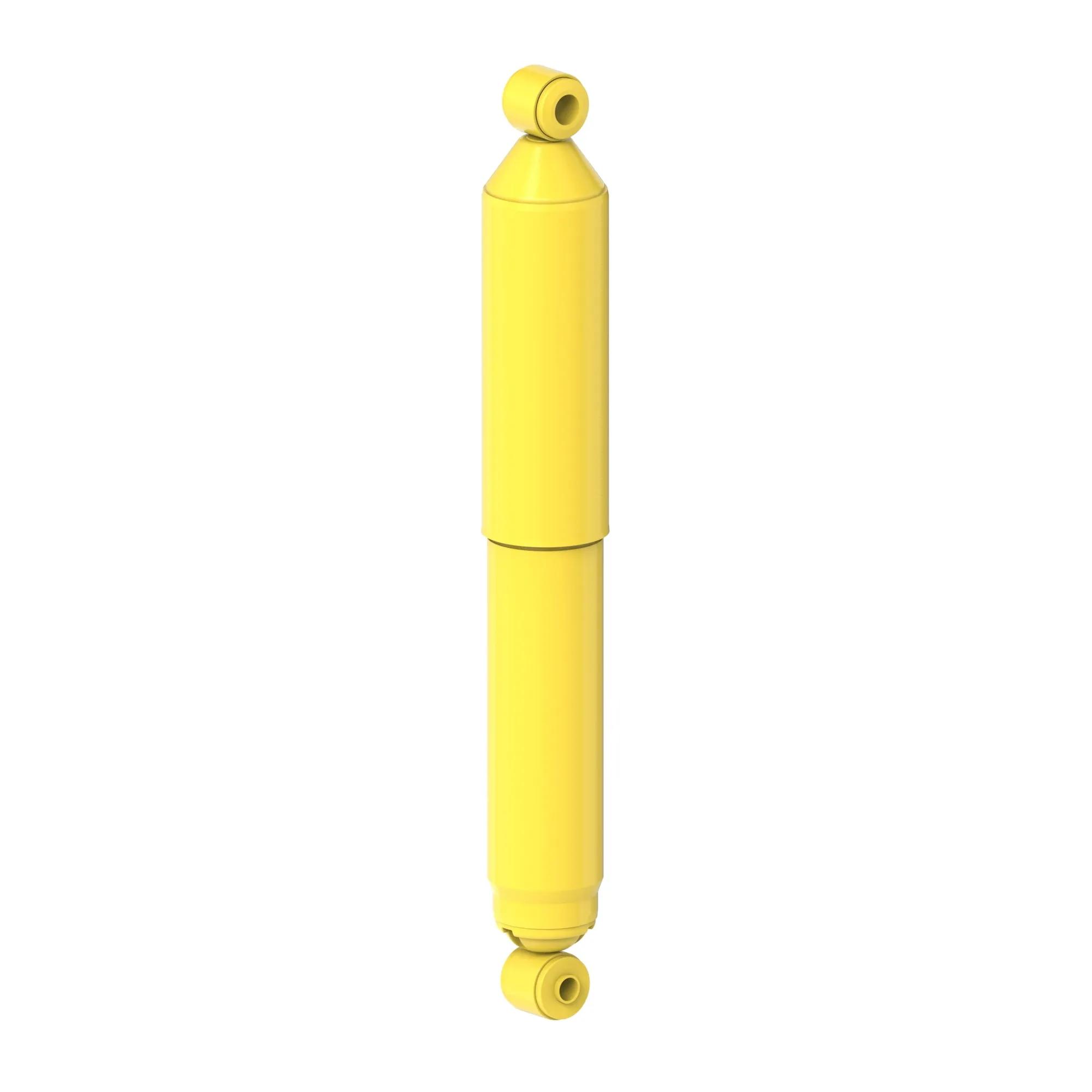

Monroe Gas-Magnum Shock Absorber, Comp 17-9/16 in, Ext 29-5/8 in, Stroke 12-1/16 in
#MON34526
Product Overview
Designed for midsize and full-size trucks and vans, Monroe® Gas-Magnum® shock absorbers provide firm control without a harsh ride. With up to twice the fluid capacity of standard 1 in bore shocks, Gas-Magnum shocks work more efficiently with less effort. Designed for mid- to full-size light-duty work trucks and vans.
Features & Benefits
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- LONGER SERVICE LIFE -- Larger bore and bigger 2 in reserve tube work together to hold more oil for greater capacity to allow the shock to work efficiently for controlled ride and longer service life
- BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
Specifications
| Application | 2005-2016 Ford F-250 Super Duty (Rear) (Drive: 4WD); 2005-2016 Ford F-350 Super Duty (Rear) (Body: Standard Cab Pickup, Extended Cab Pickup, Crew Cab Pickup & Drive: 4WD / Qualifier: with Dual Rear Wheels (DRW)); 2008-2016 Ford F-450 Super Duty (Rear) (Body: Crew Cab Pickup / Qualifier: Standard Duty) |
| Compressed Bumper Stop | No |
| Compressed Length | 17-9/16 in |
| Dust Shield | Yes |
| Dust Shield Material | Metal |
| Extended Bumper Stop | No |
| Extended Hydraulic Lockout | No |
| Extended Length | 29-5/8 in |
| Lower Mount | Loop Bushing& Sleeve Mount - 1/2 in Sleeve ID x 1-1/2 in Sleeve OAL |
| Stroke Inch | 12-1/16 in |
| Upper Mount | Loop Bushing Mount - 5/8 in Bushing ID x 1-5/16 in Bushing OAL |
| Shock Type | Gas-Magnum |
| Travel Length | 12.062 in |
| Manufacturer Part Number | 34526 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 34526 |
| M34526 |
| 12140255 |
| 175448 |
| 210457 |
| 24185981 |
| 316462 |
| 329508 |
| 342501 |
| 342790 |
| 345070 |
| 555056 |
| 565124 |
| 61681 |
| 76526 |
| 77952 |
| 7C3Z18125JBA |
| 7C3Z18125JCA |
| 7C3Z18125JDA |
| 7C3Z18125JEA |
| 7C3Z18125K |
| 7C3Z18125KBA |
| 7C3Z18125KCA |
| 7C3Z18125KDA |
| 813021 |
| 9131092 |
| 929508 |
| ASH1006 |
| ASH1008 |
| ASH12192 |
| ASH12196 |
| ASH12203 |
| ASH12209 |
| BC3Z18125AD |
| BC3Z18125AE |
| BC3Z18125AF |
| BC3Z18125AJ |
| BC3Z18125AL |
| BC3Z18125L |
| BC3Z18125M |
| BC3Z18125R |
| FC3Z18125B |
| G63888 |
| G63964 |
| HD12140651 |
| JGT4880S |
| NS911266 |
| RS5254 |
| RS55254 |
| TS3330992B |
| ZX2021 |
