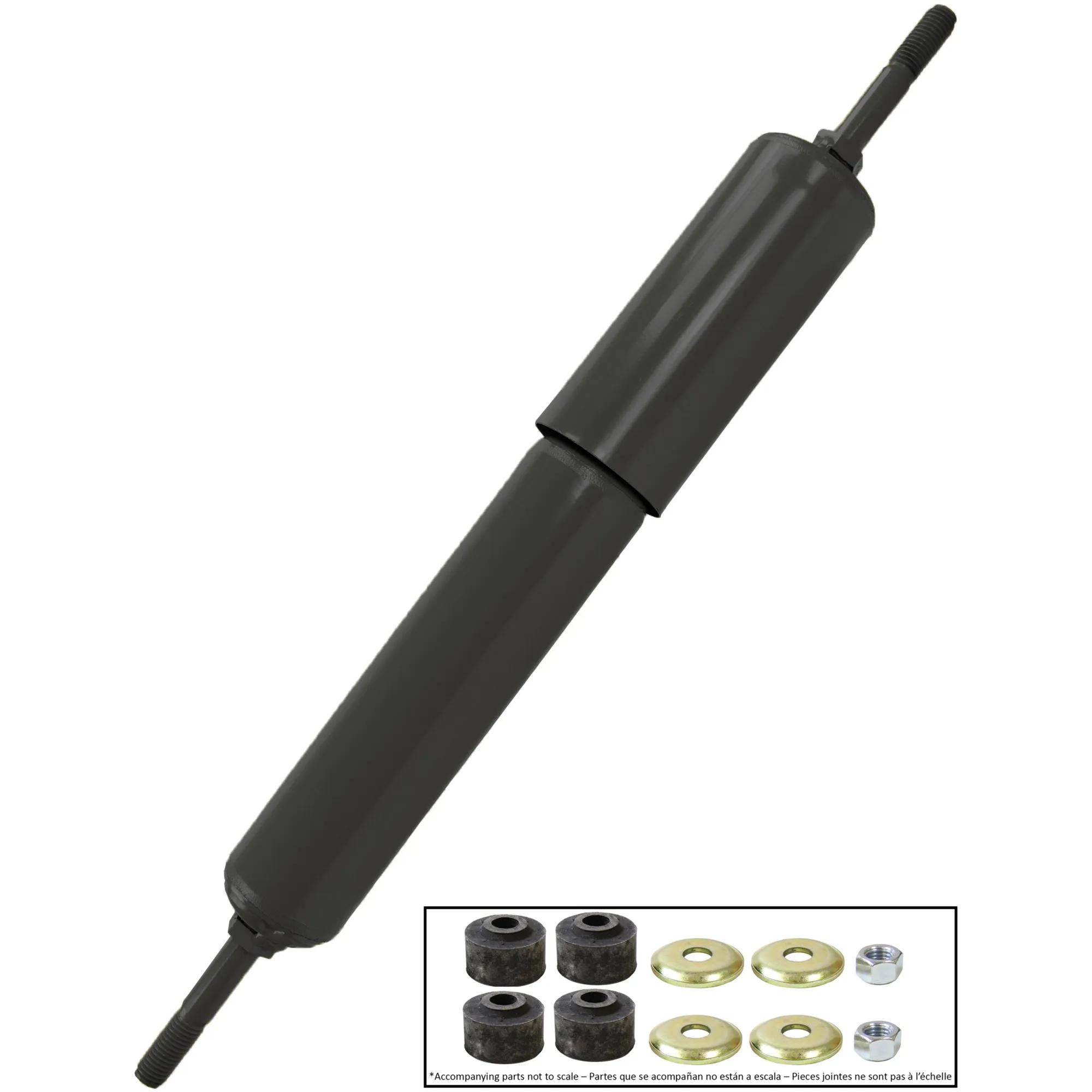

Monroe Heavy Duty Nitrogen Gas Charged Shock Absorber, Comp: 11-5/32 in, Ext: 17-3/4 in, Stroke: 6-19/32 in, 1-3/4 in Body
#MON65173
Product Overview
The Monroe® Magnum® shock absorber for class 6-8 vehicles is the first Gas Charged, large-bore shock for air spring and taper leaf suspensions. The nitrogen gas charge provides the fast response essential for today’s heavy-duty truck suspension systems.
Features & Benefits
- Hardened 23/32 in (18 mm) Diameter Chrome Piston Rod
- Resistance & Arc-Welded Mounts, Provides 15,000 lbs (6,804 kg) Of Tensile Strength For Maximum Durability
- Large 1-3/4 in (44.5 mm) Piston Bore
- Single-Lip, Low-Friction Oil Seal
- Heavy Wall Drawn Over Mandrel Pressure Tube
- 2-3/8 in (60.3 mm) Reserve Tube
- 10-Stage Full Displaced Valving (On Most Applications)
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration.
- Patented Unique Hydraulic Rebound Lockout (When Required)
Specifications
| Application | 2003-2009 Chevrolet C8500 (Rear); 2003-2009 Chevrolet C4500 Kodiak (Rear); 2003-2009 Chevrolet C5500 Kodiak (Rear); 2003-2009 Chevrolet C6500 Kodiak (Rear); 2003-2009 Chevrolet C7500 Kodiak (Rear); 2003-2009 GMC C8500 Topkick (Rear); 2003-2009 GMC C4500 Topkick (Rear); 2003-2009 GMC C5500 Topkick (Rear); 2003-2009 GMC C6500 Topkick (Rear); 2003-2009 GMC C7500 Topkick (Rear) |
| Body Diameter | 1-3/4 in |
| Compressed Length | 11-5/32 in |
| Extended Length | 17-3/4 in |
| Lower Mount | S6 |
| Parts Pack | MONP01482 |
| Stroke Inch | 6-19/32 in |
| Upper Mount | S6 |
| Finish | Painted |
| Shock Type | Gas Charged (Nitrogen) |
| Travel Length | 6.625 in |
| Manufacturer Part Number | 65173 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 65173 |
| M65173 |
| 50724 |
| 88963409 |
