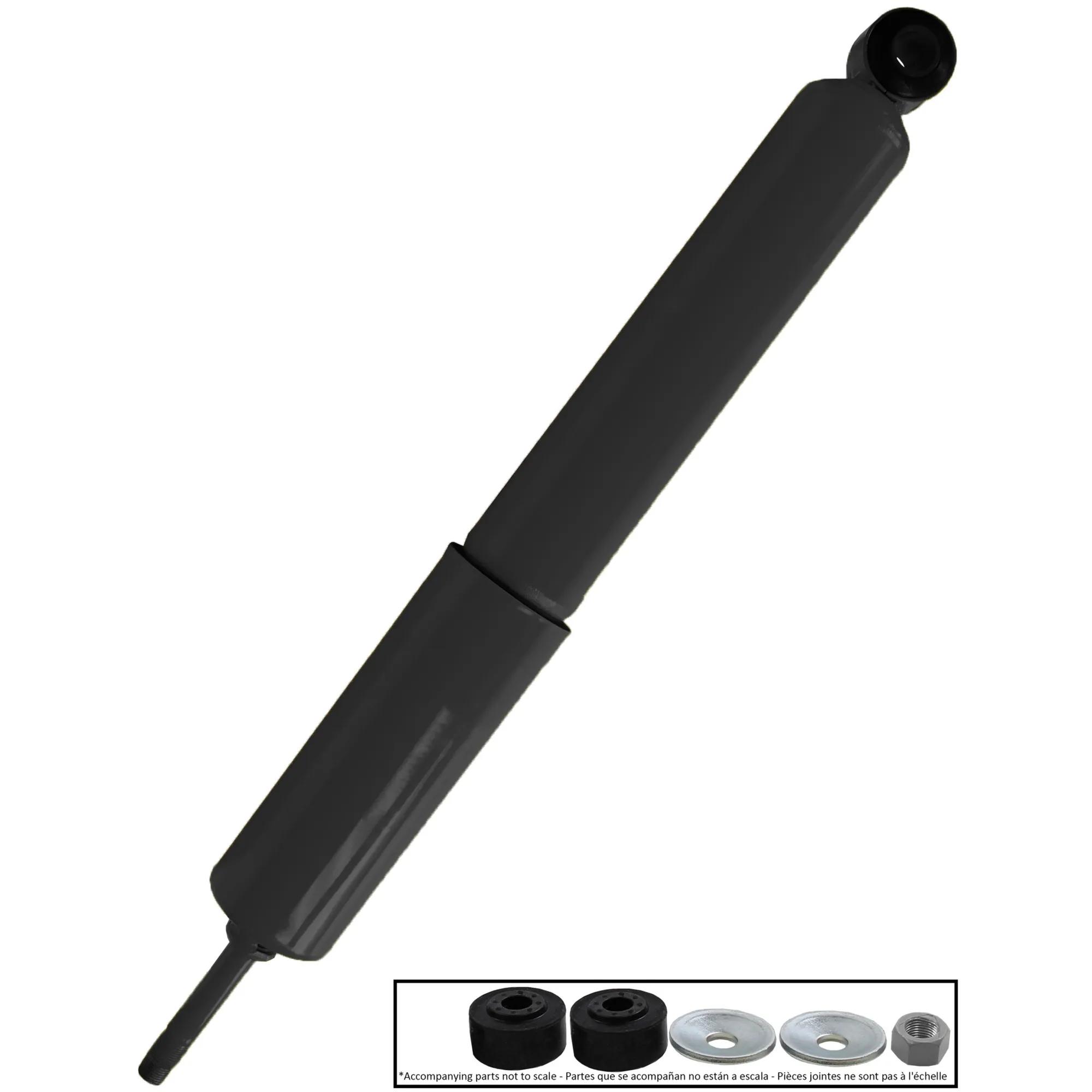

Monroe Heavy Duty Nitrogen Gas Charged Shock Absorber, Large-Bore, Comp: 12-63/64 in, Ext: 20-13/64 in, Stroke: 7-13/64 in
#MON65425
Product Overview
The Monroe® Magnum® shock absorber for class 6-8 vehicles is the first Gas Charged, large-bore shock for air spring and taper leaf suspensions. The nitrogen gas charge provides the fast response essential for today’s heavy-duty truck suspension systems.
Features & Benefits
- 2-3/8 in (60.3 mm) Reserve Tube.
- Large 1-3/4 in (44.5 mm) Piston Bore.
- 10-Stage Full Displaced Valving (On Most Applications)
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration - On Most Applications
- Resistance & Arc-Welded Mounts, Provides 15,000 lbs (6,804 kg) Of Tensile Strength For Maximum Durability.
- Single-Lip, Low-Friction Oil Seal.
- Patented Unique Hydraulic Rebound Lockout (When Required).
- Heavy Wall Drawn Over Mandrel Pressure Tube.
- When Combined, The Gas Charge & Large-Bore Provide The Consistent Control Necessary For Demanding Truck Suspensions.
- Hardened 23/32 in (18 mm) Diameter Chrome Piston Rod
Specifications
| Body Diameter | 2-3/8 in |
| Compressed Length | 12-63/64 in |
| Extended Length | 20-13/64 in |
| Lower Mount | LS54 |
| Parts Pack | MONP1482 |
| Stroke Inch | 7-13/64 in |
| Upper Mount | S6 |
| Material | Chrome/Steel |
| Shock Type | Gas Charged (Nitrogen), Large-Bore |
| Travel Length | 7.21 in |
| Manufacturer Part Number | 65425 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 65425 |
| 90045068 |
| M65425 |
| 57365425 |
| 650425 |
| 650425MT |
| 85056 |
| AMS650425 |
