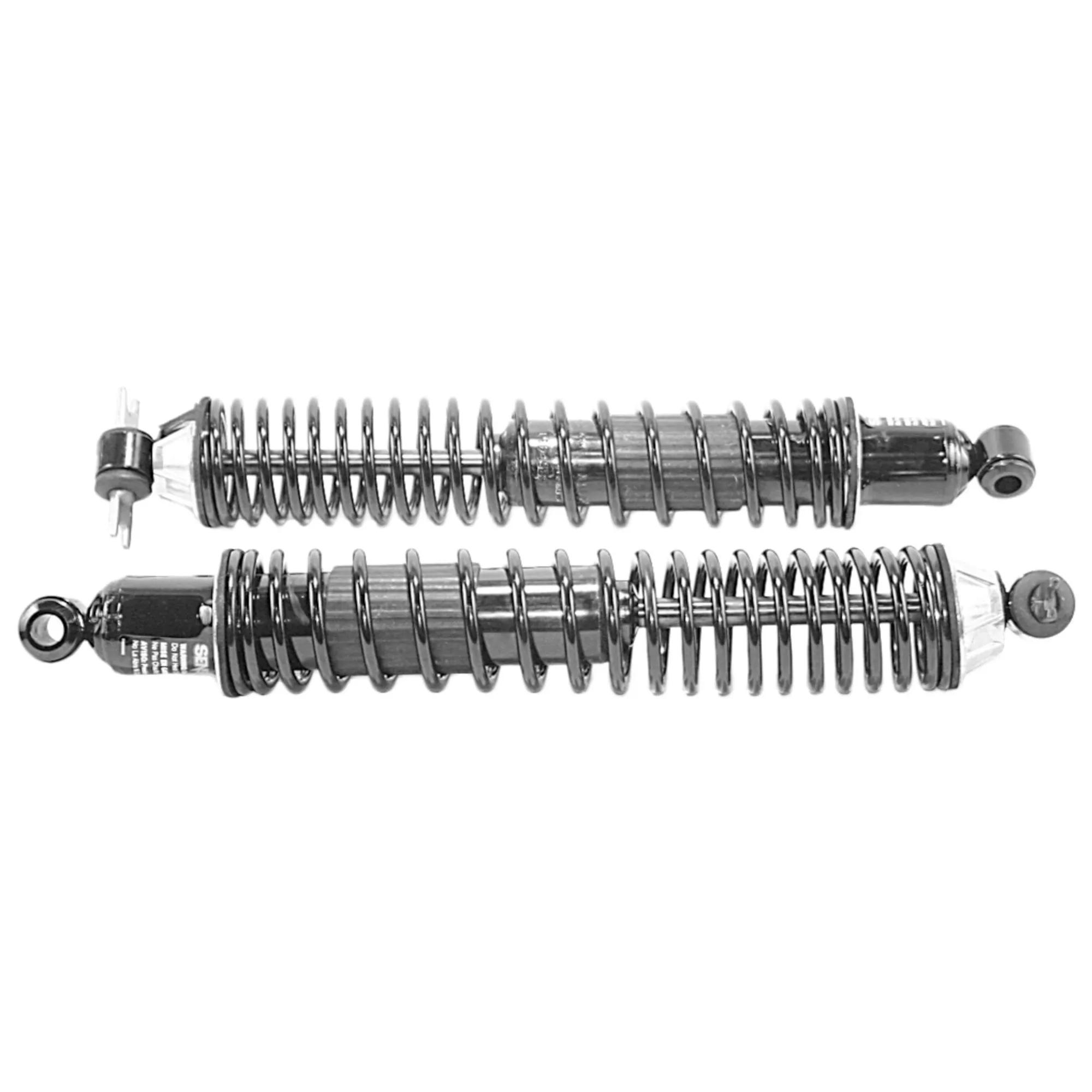

Monroe Load Adjusting Shock Absorber, Comp 12-3/4 in, Ext 20 in, Stroke 7-1/4 in, Nitrogen Gas Charged, Heavy Gauge Coil Spring
#MON58594
Product Overview
Ideal for light trucks that that tow or carry varying loads, Monroe load adjusting shocks include a heavy gauge calibrated spring that adjusts to changing road and weight conditions to provide extra control when operating conditions get more demanding. Ride, Handling, & Safety Characteristics Of The Vehicle. These Units Also Include A Heavy Gauge Calibrated Spring For Extra Control & Comfort. A New Pair Of Monroe OESpectrum Load Adjusting Shock Absorbers Can Assist In Maintaining Ride Height When
Features & Benefits
- Fluon Banded Piston: The Fluon Band Provides Consistent Sealing Between The Piston & Pressure Tube Which Delivers Better Control & Increased Durability
- Heavy Gauge Calibrated Coil Spring: Computer Designed For Maximum Performance w/o An Increase In Ride Harshness
- Full Displaced Valving: Tuned Specifically For Each Application, This Valving Automatically Adjusts To Road Extremes To Provide Consistency & Ride
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration - On Most Applications
- All Weather Fluid: Contains Special Modifiers To Reduce Friction & Ensure Smooth Rod Reaction
- Special Seal: 'self-Lubricating' Fluid Seal Designed To Retain Gas w/o Excessive Wear Or Friction
- 5/8 in Piston Rod: Heavy-Duty Nitrocarburized Rod For Long Service Life. On Non-Dust Shield Units Only - On Most Applications
- Up To 1,200lbs Of Additional Weight Is Loaded (Capacity Is Limited By Vehicle Suspension, Tires & Transmission. See Vehicle Owner's Manual For Details). These Units Are Ideal For Light Trucks That Carry Varying Loads Or Tow Trailers.
- Unique Groove Tube - PSD: Precision Tapered Grooves In The Pressure Tube Perform Like An Additional Stage Of Valving For Optimum Ride Tuning
Specifications
| Compressed Length | 12-3/4 in |
| Extended Length | 20 in |
| Lower Mount | Loop Bushing Mount - 5/8 in Bushing ID X 1-5/16 in Bushing OAL |
| Stroke Inch | 7-1/4 in |
| Upper Mount | XP12 |
| Includes | Heavy Gauge Calibrated Coil Spring |
| Shock Type | Load Adjusting, Nitrogen Gas Charged |
| Travel Length | 7.25 in |
| Manufacturer Part Number | 58594 |
| Product Category | Suspension Shock Absorber and Coil Spring Assembly |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 550054 |
| MON550054 |
