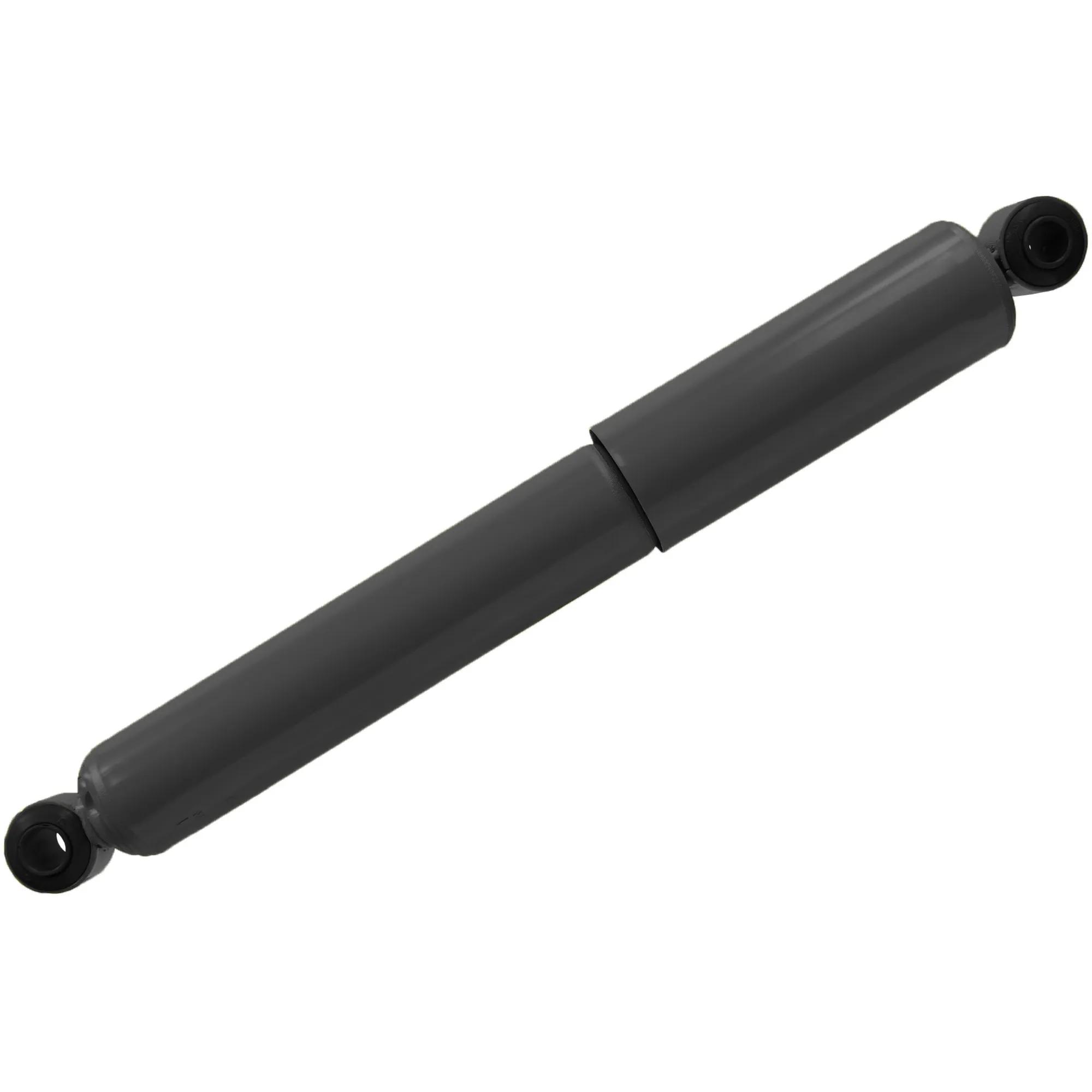

Monroe Magnum Gas Charged Shock Absorber, Comp: 13-15/16 in, Ext: 21-21/32 in, Stroke: 7-23/32 in, 2-3/8 in Body, 1-3/4 in Piston Bore
#MON65542
Product Overview
The Monroe® Magnum® shock absorber for class 6-8 vehicles is the first Gas Charged, large-bore shock for air spring and taper leaf suspensions. The nitrogen gas charge provides the fast response essential for today’s heavy-duty truck suspension systems. The nitrogen gas charge provides the fast response essential for today’s heavy-duty truck suspension systems.
Features & Benefits
- 2-3/8 in (60.3 mm) Reserve Tube.
- Large 1-3/4 in (44.5 mm) Piston Bore.
- Resistance & Arc-Welded Mounts, Provides 15,000 lbs (6,804 kg) Of Tensile Strength For Maximum Durability.
- Single-Lip, Low-Friction Oil Seal.
- Patented Unique Hydraulic Rebound Lockout (When Required).
- When Combined, The Gas Charge & Large-Bore Provide The Consistent Control Necessary For Demanding Truck Suspensions.
- Hardened 23/32 in (18 mm) Diameter Chrome Piston Rod.
- BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
Specifications
| Body Diameter | 2-3/8 in |
| Compressed Length | 13-15/16 in |
| Contents | Shock |
| Extended Length | 21-21/32 in |
| Lower Mount | LS75 |
| Stroke Inch | 7-23/32 in |
| Upper Mount | LS75 |
| Shock Type | Gas Charged |
| Travel Length | 7.72 in |
| Manufacturer Part Number | 65542 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 85102 |
