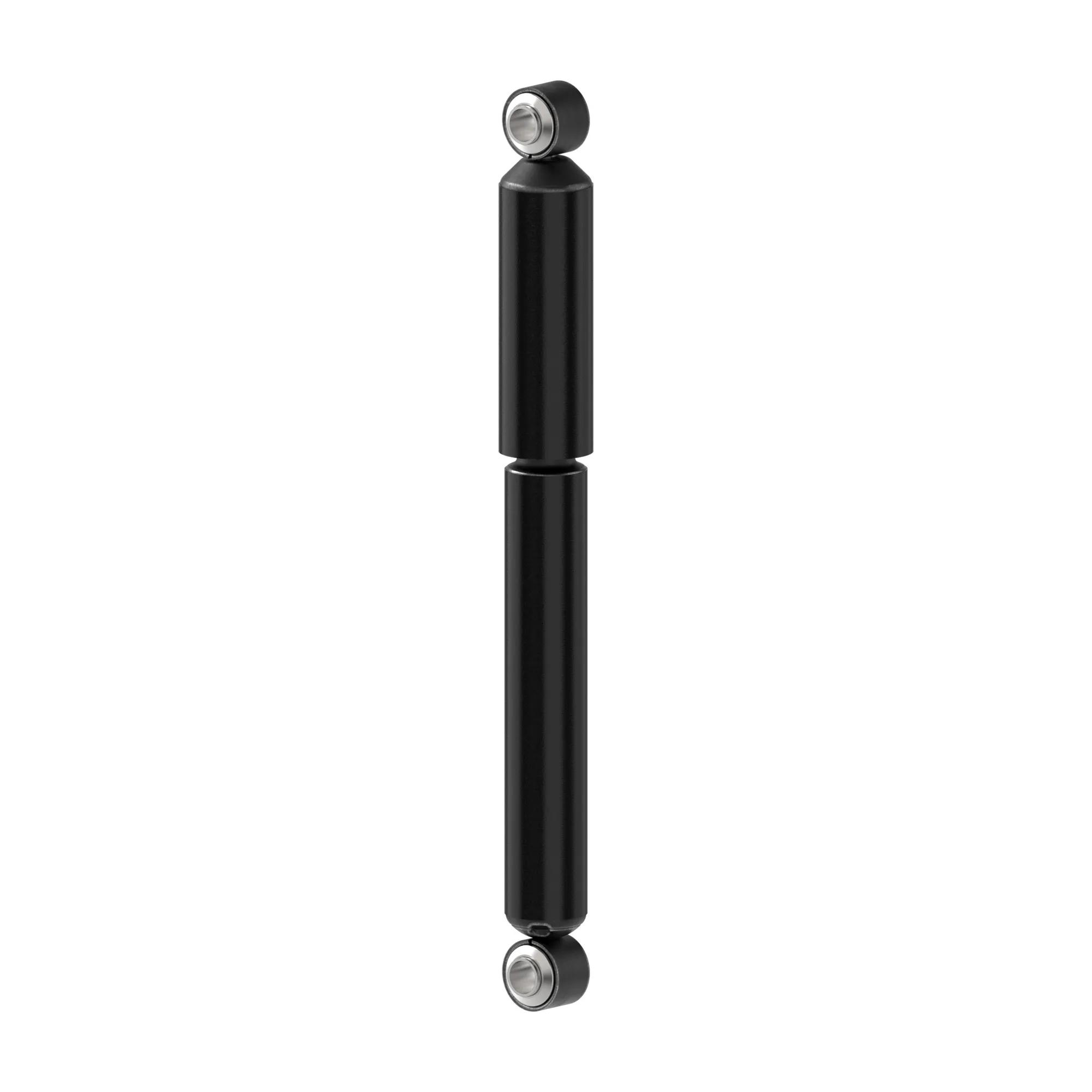

Monroe Magnum Gas Charged Shock Absorber for Class 3-6, 1.988 in Body Dia, 13.89 in Comp Length, 20.74 in Ext Length
#MON66458
Product Overview
The Monroe® Magnum® shock absorber is designed for class 3-6 commercial vehicles, delivering a Gas Charged, quick response for a stable and comfortable ride. Built to withstand high mileage and severe use, these shocks reduce excessive vibration and improve vehicle handling and performance.Shock Absorber, 1.988 in Body Dia, 13.89 in Compressed Length, 20.74 in Extended Length, LS75 Lower Mount, 6.85 in Travel Length, LS75 Upper Mount
Features & Benefits
- Exceptional handling - 10-stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/8 in bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
- Strong and durable - shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360 deg for durability
- Improves performance - nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- Consistent ride - all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while 2 in or 2-1/4 in reserve tube holds more fluid to improve performance (when required)
- For hardworking commercial vehicles - designed to handle the demands of high mileage and severe use class 3-6 trucks and buses
- Longer service life - Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
- Reduced noise, vibration and harshness - delivers exceptional control and isolates impact-related noise, vibration, and harshness under most driving conditions
- Buy with confidence - comes with Monroe’s 90-day risk free ride offer and limited commercial warranty
- Built to last - robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (on most applications)
Specifications
| Body Diameter | 1.988 in |
| Compressed Length | 13.89 in |
| Extended Length | 20.74 in |
| Lower Mount | LS75 |
| Upper Mount | LS75 |
| Shock Type | Gas Charged |
| Travel Length | 6.85 in |
| Manufacturer Part Number | 66458 |
| Product Category | Shock Absorber |
| Quantity | 1 |
