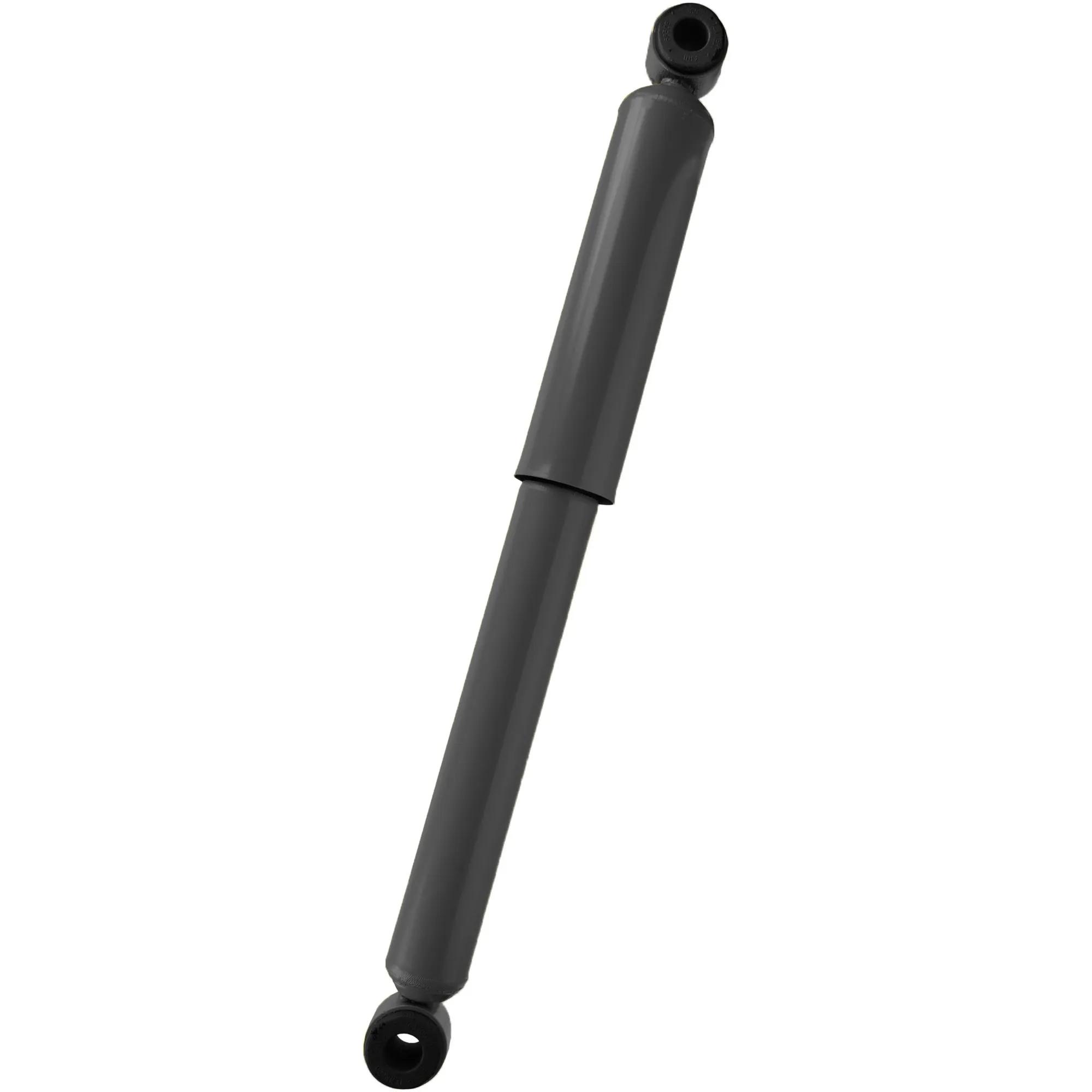

Monroe Magnum Gas Charged Shock Absorber for Class 3-6 Vehicles, 15-1/2 in Compressed, 25-5/8 in Extended, 10-1/8 in Stroke
#MON66624
Product Overview
The Monroe® Magnum® shock absorber for class 3-6 vehicles is Gas Charged for quicker response and a stable, more comfortable ride. Designed to handle the demands of high mileage and severe use vehicles, replace worn-out units with Magnum® shocks to help reduce excessive vibration and improve handling. Shock Absorber, Metal, 15.5 in Compressed Length, 25.625 in Extended Length, L3 Lower Mount, 10.125 in Travel Length, L3 Upper Mount
Features & Benefits
- 5/8 in (15.9 mm) Diameter Piston Rod (On Most Applications)
- Resistance & Arc-Welded Mounts, Provide 9,500 lbs (4,309 kg) Of Tensile Strength For Maximum Durability (On Most Applications)
- 2 in Or 2-3/8 in (50.8 mm Or 60.3 mm) Reserve Tube (Where Required)
- 1-3/8 in (34.9 mm) Bore (On Most Applications)
- Multi-Lip Fluid Seal Designed For Smooth Performance, Long Life & Reduced Friction
- 10-Stage Full Displaced Valving (On Most Applications)
- Exceptional handling - 10-stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/8 in bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
- For hardworking commercial vehicles - designed to handle the demands of high mileage and severe use class 3-6 trucks and buses
- Strong and durable - shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360 deg for durability
Specifications
| Compressed Length | 15-1/2 in |
| Dust Shield | Yes |
| Extended Length | 25-5/8 in |
| Lower Mount | L3 |
| Stroke Inch | 10-1/8 in |
| Type | Gas Charged |
| Upper Mount | L3 |
| Material | Metal |
| Travel Length | 10.125 in |
| Manufacturer Part Number | 66624 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 66624 |
| M66624 |
| 485001940 |
| 485001941 |
| 485003720 |
| 83141 |
