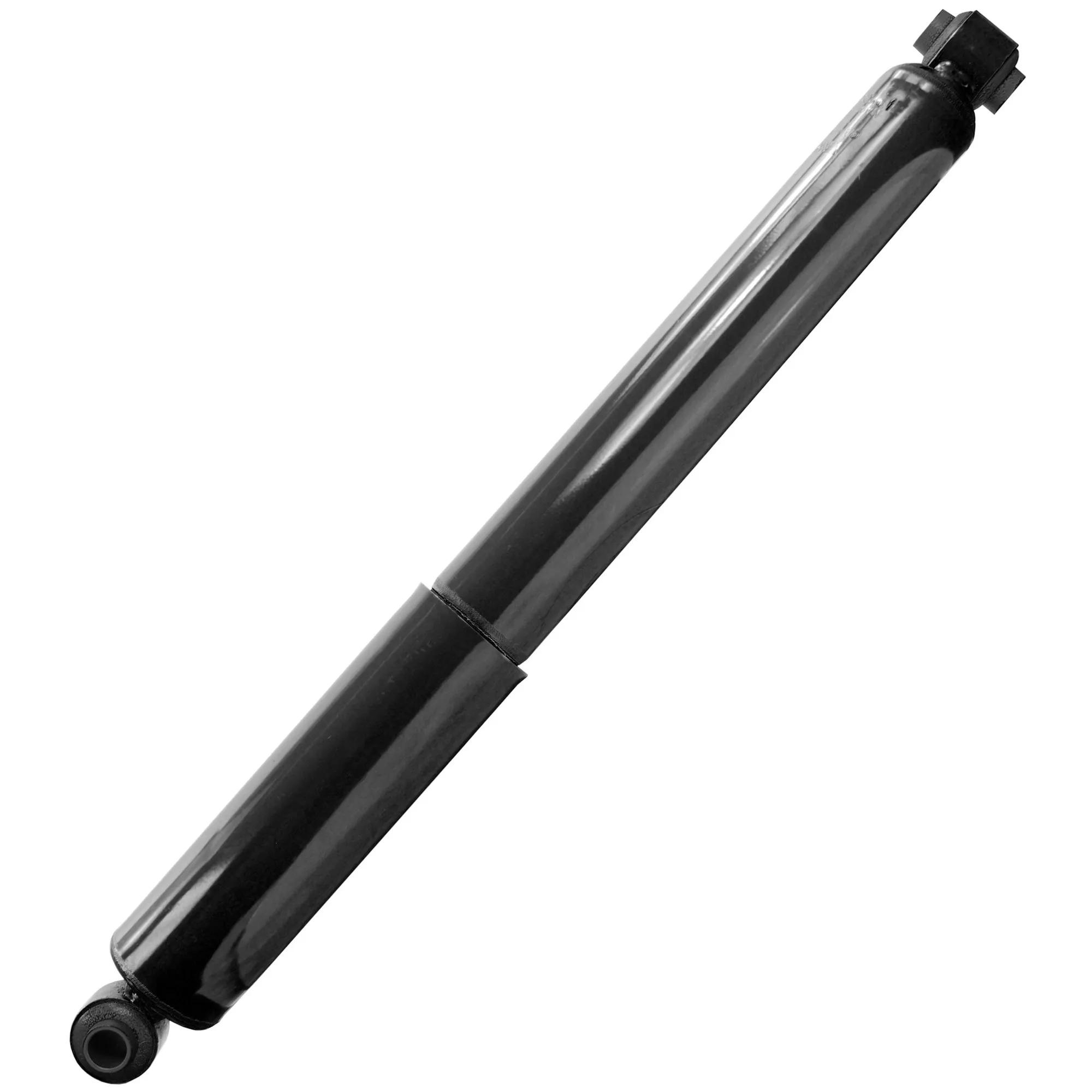

Monroe Magnum Gas Charged Shock Absorber for Class 6-8 Vehicles, 2.381 in Body, 26.45 in Extended Length
#MON65183
Product Overview
The Monroe® Magnum® shock absorber for class 6-8 vehicles is the first Gas Charged, large-bore shock for air spring and taper leaf suspensions. The nitrogen gas charge provides the fast response essential for today’s heavy-duty truck suspension systems.
Features & Benefits
- FOR HARDWORKING COMMERCIAL VEHICLES -- Designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
- CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8 in reserve tube holds more fluid to improve performance (most applications)
- EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/4 in bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
- STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
- BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (most applications)
- LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
- REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
Specifications
| Body Diameter | 2.381 in |
| Compressed Length | 17.14 in |
| Extended Length | 26.45 in |
| Lower Mount | Loop Bushing and Sleeve Mount - 3/4 in Sleeve ID X 2.1/4 in Sleeve OAL |
| Type | Shock Absorber |
| Upper Mount | Loop Bushing and Sleeve Mount - 3/4 in Sleeve ID X 2.1/4 in Sleeve OAL |
| Finish | Painted |
| Shock Type | Gas Charged |
| Travel Length | 9.31 in |
| Manufacturer Part Number | 65183 |
| Product Category | Shock Absorber |
| Quantity | 1 |
