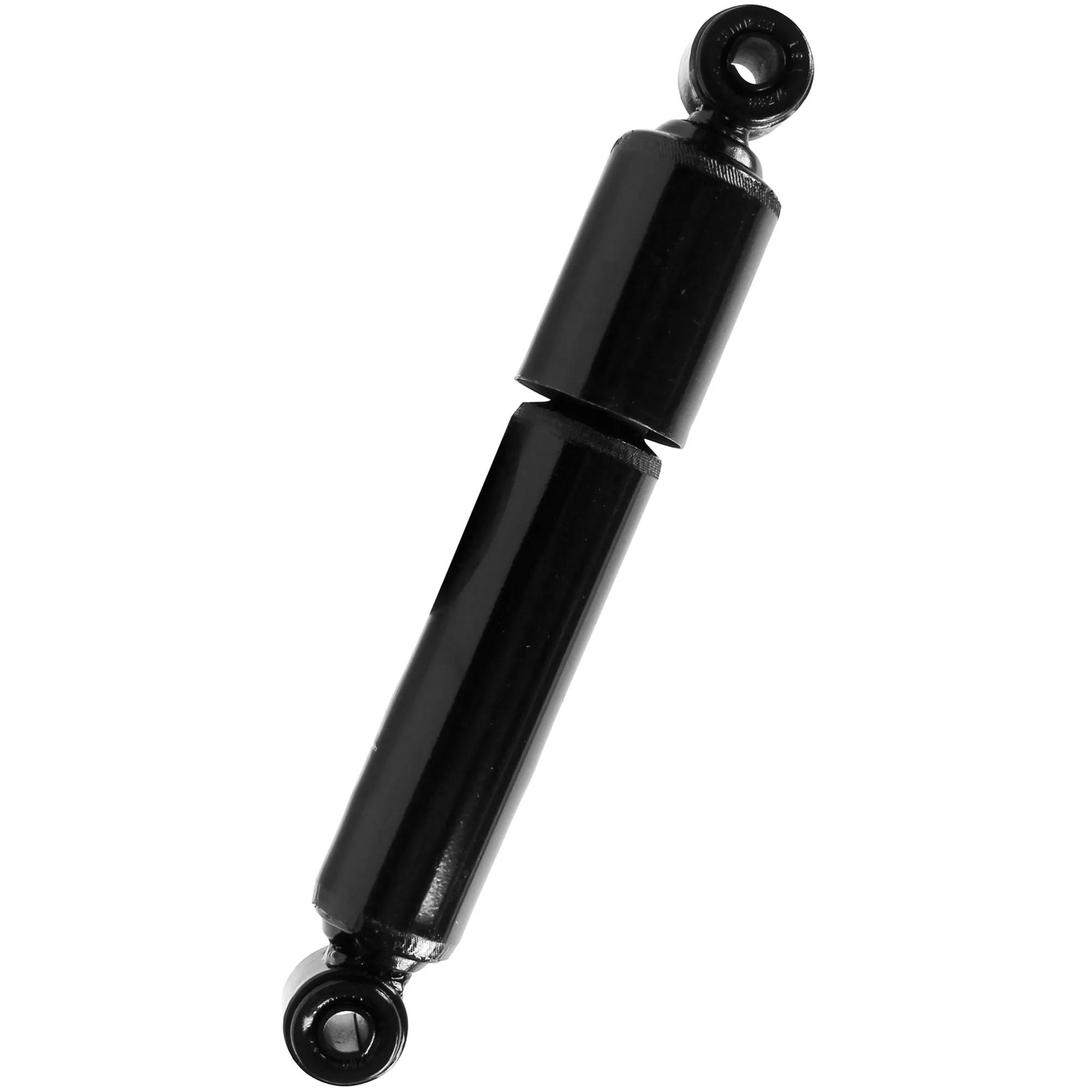

Monroe Magnum Gas Charged Shock Absorber for Heavy-Duty Cab, 8.5 in Compressed, 11.5 in Extended, 3 in Stroke
#MON66159
Product Overview
Designed for heavy-duty cab suspensions, the Gas Charged Monroe® Magnum® cab shock isolates the cab from the frame for a smoother, more comfortable ride. Utilizes velocity-sensitive valving to deliver a new standard in driver comfort in most applications. Shock Absorber, Metal, 8.47 in Compressed Length, 11.58 in Extended Length, LS24 Lower Mount, 3.09 in Travel Length, LS24 Upper Mount
Features & Benefits
- Resistance & Arc-Welded Mounts, Provides 15,000 lbs (6,804 kg) Of Tensile Strength For Maximum Durability
- Urethane Rebound Bumper (When Required)
- For hardworking commercial vehicles - designed to handle the demands of high mileage and severe use vehicles with cab suspensions
- 1-3/8 in Bore: Lower Operating Pressure Than Standard 1 in Bore Units
- Multi-Lip Fluid Seal Designed For Smooth Performance, Long Life & Reduced Friction
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration.
- Strong and durable - shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360 deg for durability
- 2 in Or 2-3/8 in (50.8 mm Or 60.3 mm) Reserve Tube (Where Required)
- Consistent ride - all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2 in reserve tube holds more fluid to improve performance (when required)
- Longer service life - Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
Specifications
| Compressed Length | 8-1/2 in |
| Dust Shield | Yes |
| Extended Length | 11-1/2 in |
| Lower Mount | LS24 |
| Stroke Inch | 3 in |
| Type | Shock Absorber |
| Upper Mount | LS24 |
| Material | Metal |
| Shock Type | Gas Charged |
| Travel Length | 3.09 in |
| Manufacturer Part Number | 66159 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 66159 |
| M66159 |
| T71-1001 |
| 66159-MS |
| AMS66159 |
| MAE 66159 |
| MON66159 |
| T71-1002 |
| ZZSA66159 |
| 66659 |
| 12021064 |
| 12021065 |
| 12021164 |
| 12021264 |
| 83031 |
| C711016 |
| T711002 |
