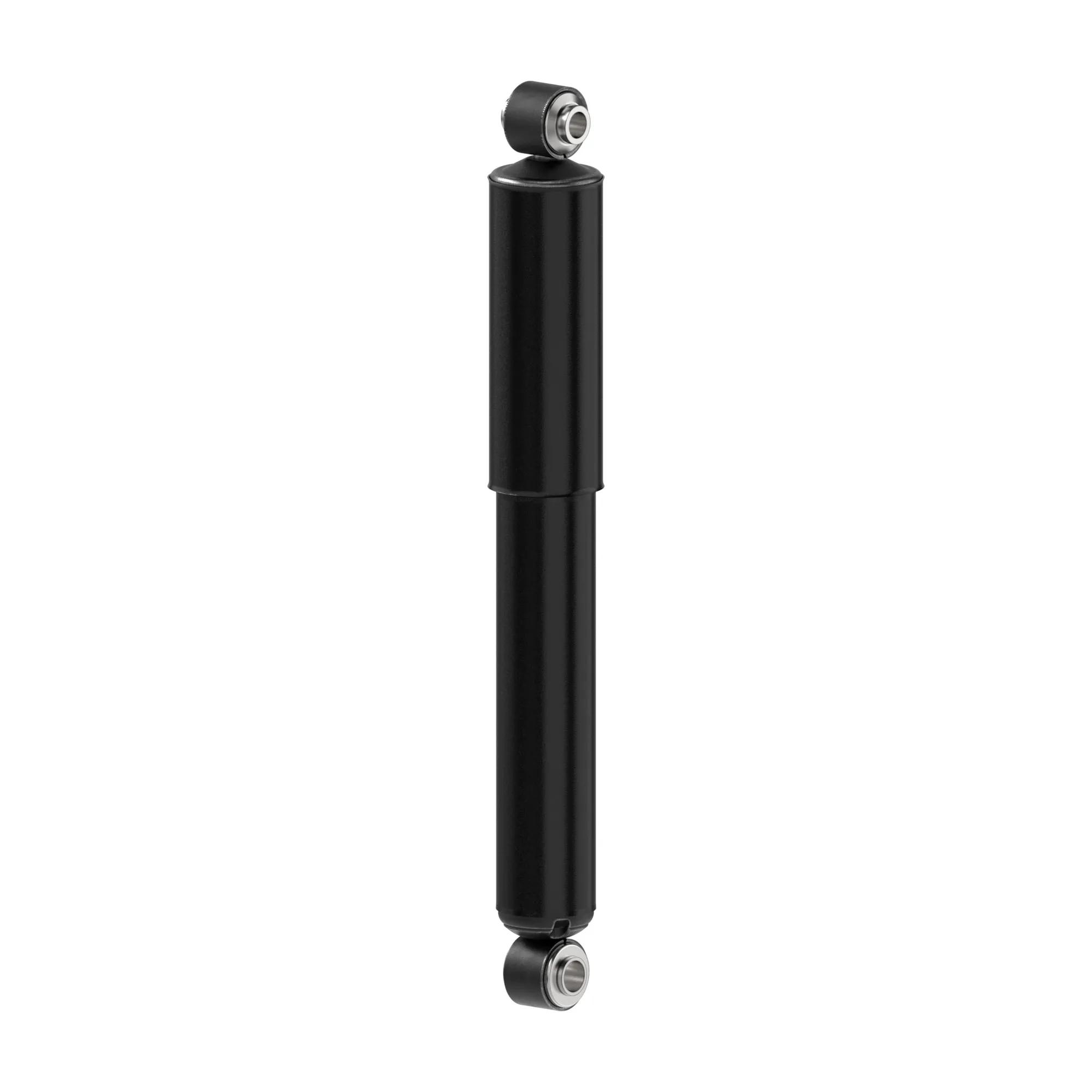

Monroe Magnum Gas Charged Shock Absorber, Painted Metal, 13.19 in Compressed, 20.73 in Extended, 7.54 in Stroke, 1-3/4 in Piston Bore
#MON65158
Product Overview
The Monroe® Magnum® shock absorber for class 6-8 vehicles is the first Gas Charged, large-bore shock designed for air spring and taper leaf suspensions. The nitrogen gas charge provides fast response essential for today’s heavy-duty truck suspension systems, improving ride and handling by maintaining tire-to-road contact and reducing aeration and shock fade. Shock Absorber, Painted, Metal, 13.19 in Compressed Length, 20.73 in Extended Length, LS54 Lower Mount, 7.54 in Travel Length, LS53 Upper Mount
Features & Benefits
- Hardened 23/32 in (18 mm) Diameter Chrome Piston Rod
- Resistance & Arc-Welded Mounts, Provides 15,000 lbs (6,804 kg) Of Tensile Strength For Maximum Durability
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration.
- Large 1-3/4 in (44.5 mm) Piston Bore
- Single-Lip, Low-Friction Oil Seal
- Heavy Wall Drawn Over Mandrel Pressure Tube
- Consistent ride - all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8 in reserve tube holds more fluid to improve performance (most applications)
- 10-Stage Full Displaced Valving (On Most Applications)
- 2-3/8 in (60.3 mm) Reserve Tube
- Exceptional handling - 10-stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/4 in bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
Specifications
| Body Diameter | 2-3/8 in |
| Compressed Length | 13-3/16 in |
| Dust Shield | Yes |
| Extended Length | 20.73 in |
| Lower Mount | LS54 |
| Stroke Inch | 7.54 in |
| Upper Mount | LS53 |
| Finish | Painted |
| Material | Metal |
| Shock Mounting | Air Spring and Taper Leaf Suspensions |
| Shock Type | Gas Charged |
| Travel Length | 7.54 in |
| Manufacturer Part Number | 65158 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 3606857C2 |
| 65158 |
| M65158 |
| 3581109C1 |
| 3581109C3 |
| 3581109C4 |
| 3668566C1 |
| 3737575C1 |
| 3810584C1 |
| 4050444C2 |
| 85954 |
| 316817 |
| 341615 |
| 3606857C1 |
| 3674348C1 |
| 4050443C1 |
| 4050443C2 |
| 4050444C1 |
| 44185954 |
| 85994 |
| 98031024 |
| A85901 |
| A85954 |
| AMS65158 |
| BC3Z18125G |
| BC3Z18125H |
| F347221 |
| M85954 |
| OE22252 |
| OE22253 |
| SA55084 |
