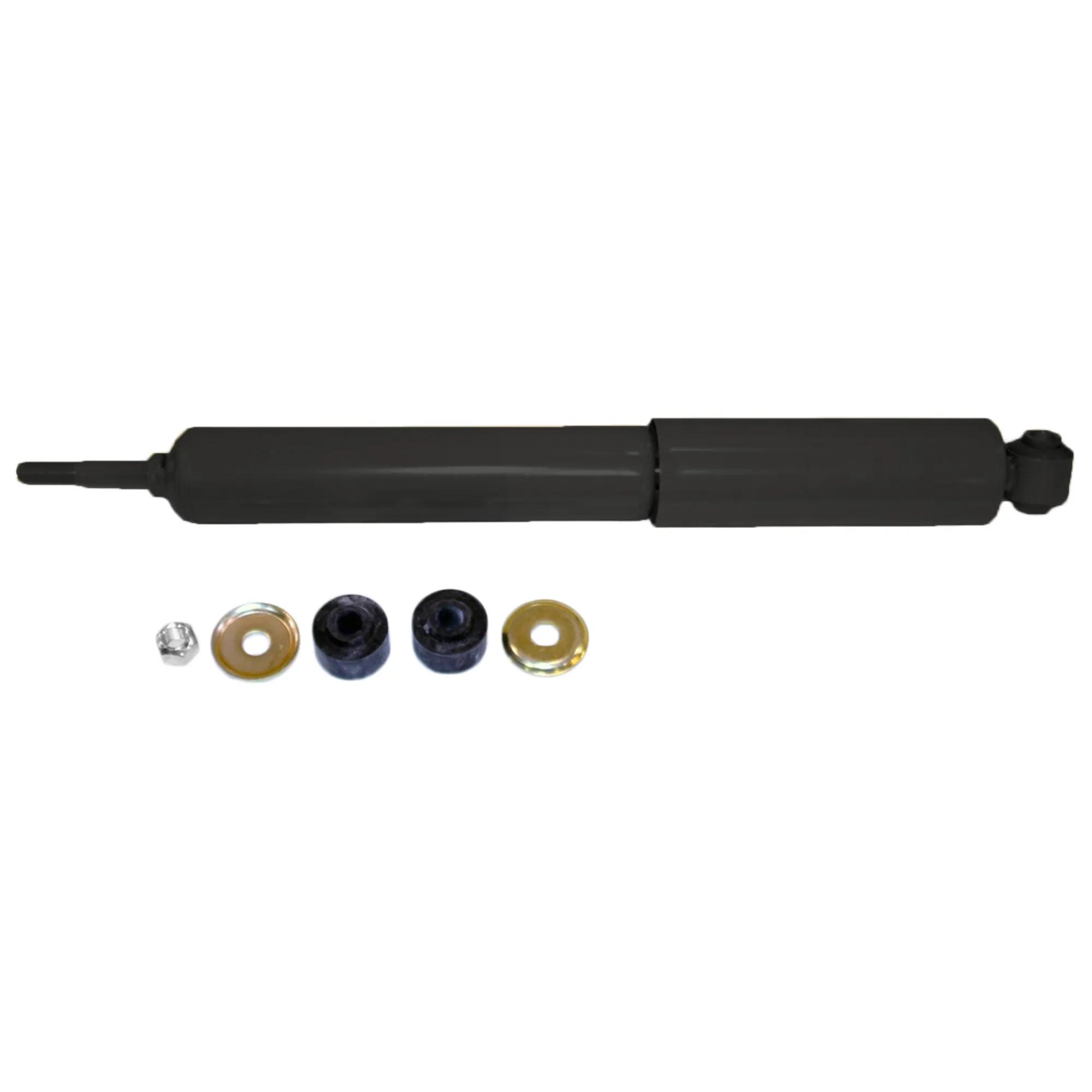

Monroe Magnum Gas Charged Shock Absorber, Painted Metal, 13-53/64 in Comp, 22-17/32 in Ext, 8-45/64 in Stroke
#MON65160
Product Overview
The Monroe® Magnum® shock absorber for class 6-8 vehicles is the first Gas Charged, large-bore shock designed for air spring and taper leaf suspensions. The nitrogen gas charge provides fast response essential for today’s heavy-duty truck suspension systems, helping maintain tire-to-road contact by reducing aeration and shock fade.Shock Absorber, Painted, Metal, 13.875 in Compressed Length, 22.5625 in Extended Length, S6 Lower Mount, 8.688 in Travel Length, LS53 Upper Mount
Features & Benefits
- Hardened 23/32 in (18 mm) Diameter Chrome Piston Rod
- Resistance & Arc-Welded Mounts, Provides 15,000 lbs (6,804 kg) Of Tensile Strength For Maximum Durability
- Large 1-3/4 in (44.5 mm) Piston Bore
- Single-Lip, Low-Friction Oil Seal
- Heavy Wall Drawn Over Mandrel Pressure Tube
- Consistent ride - all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8 in reserve tube holds more fluid to improve performance (most applications)
- 10-Stage Full Displaced Valving (On Most Applications)
- 2-3/8 in (60.3 mm) Reserve Tube
- Exceptional handling - 10-stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/4 in bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
- For hardworking commercial vehicles - designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
- Patented Unique Hydraulic Rebound Lockout (When Required)
Specifications
| Compressed Length | 13-7/8 in |
| Dust Shield | Yes |
| Extended Length | 22-17/32 in |
| Lower Mount | S6 |
| Parts Pack | MONP01482 |
| Stroke Inch | 8-45/64 in |
| Upper Mount | LS53 |
| Finish | Painted |
| Material | Metal |
| Shock Mounting | Air spring and taper leaf suspensions |
| Shock Type | Gas Charged |
| Travel Length | 8.688 in |
| Manufacturer Part Number | 65160 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 65160 |
| M65160 |
| 12QK428M |
| 14QK3108 |
| 14QK427M |
| 14QK428M |
| 20433426 |
| 20863239 |
| 85080 |
