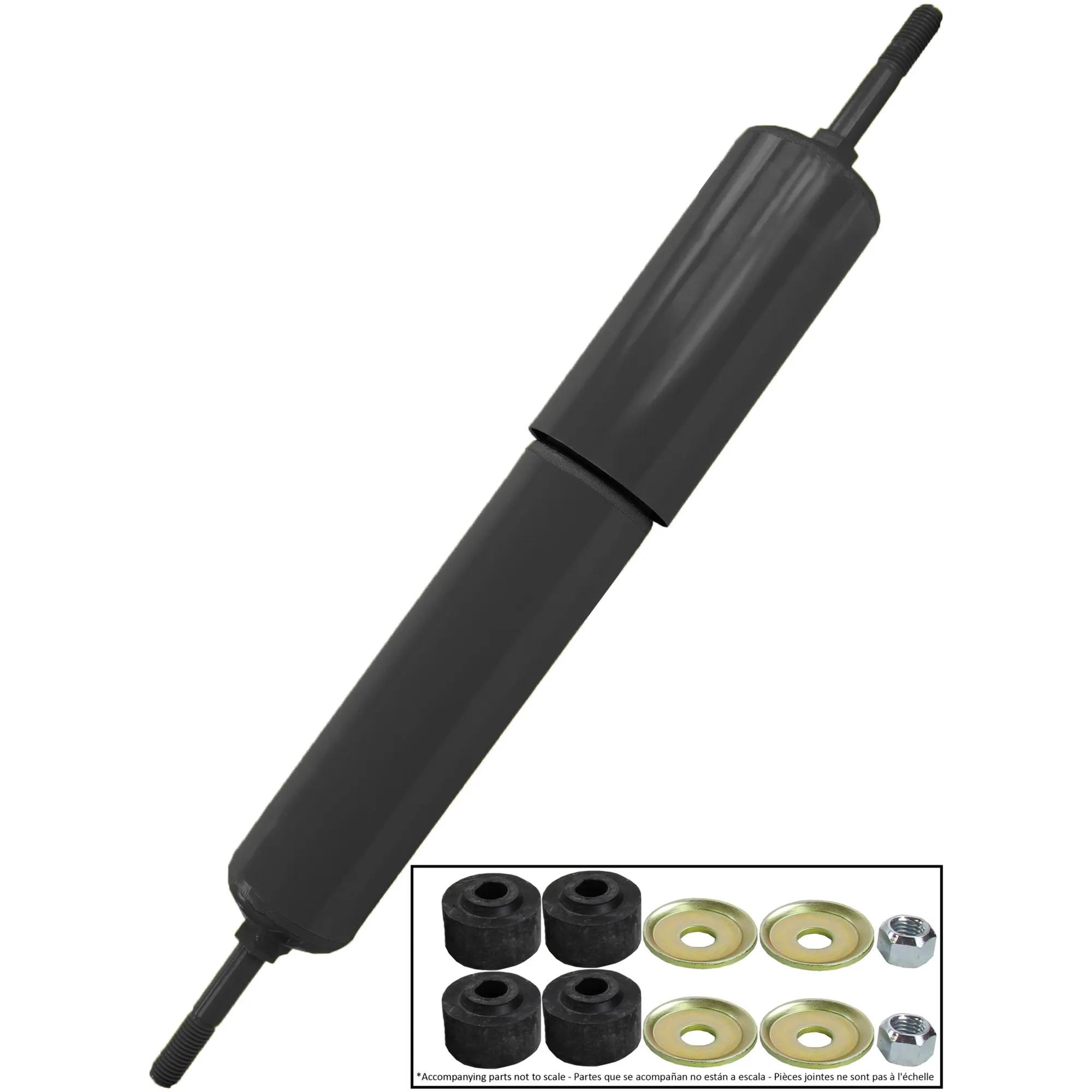

Monroe Magnum Gas Charged Shock Absorber, S6 Mount, 2-3/8 in Body, Comp 14-5/8 in, Ext 23-3/8 in, Stroke 8-3/4 in
#MON65413
Product Overview
The Monroe® Magnum® shock absorber for class 6-8 vehicles is the first Gas Charged, large-bore shock for air spring and taper leaf suspensions. The nitrogen gas charge provides the fast response essential for today’s heavy-duty truck suspension systems.
Features & Benefits
- 2-3/8 in (60.3 mm) Reserve Tube.
- Large 1-3/4 in (44.5 mm) Piston Bore.
- 10-Stage Full Displaced Valving (On Most Applications)
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration - On Most Applications
- Resistance & Arc-Welded Mounts, Provides 15,000 lbs (6,804 kg) Of Tensile Strength For Maximum Durability.
- Single-Lip, Low-Friction Oil Seal.
- Patented Unique Hydraulic Rebound Lockout (When Required).
- Heavy Wall Drawn Over Mandrel Pressure Tube.
- When Combined, The Gas Charge & Large-Bore Provide The Consistent Control Necessary For Demanding Truck Suspensions.
- Hardened 23/32 in (18 mm) Diameter Chrome Piston Rod
Specifications
| Application | 1997-2003 Isuzu FTR (Rear); 1997-2002 Isuzu FVR (Rear); 1997-2002 Isuzu FSR (Rear, Front); 1993-1996 Chevrolet B7 (Rear); 1990 Chevrolet C50 (Rear); 1990 Chevrolet C60 (Rear); 1990 Chevrolet C70 (Rear); 1990-1991 Chevrolet C5500 Kodiak (Rear); 1990-1996 Chevrolet C60 Kodiak (Rear); 1990-1996 Chevrolet C70 Kodiak (Rear); 1997-2002 Chevrolet C6500 Kodiak (Rear); 1997-2002 Chevrolet C7500 Kodiak (Rear); 1997-2002 Chevrolet T6500 (Rear, Front); 1997-2002 Chevrolet T7500 (Rear, Front); 1990 GMC C5000 (Rear); 1990 GMC C6000 (Rear); 1990 GMC C7000 (Rear); 1990-1991 GMC C5000 Topkick (Rear); 1990-1996 GMC C6000 Topkick (Rear); 1990-1996 GMC C7000 Topkick (Rear); 1997-2002 GMC C6500 Topkick (Rear); 1997-2002 GMC C7500 Topkick (Rear); 1997-2002 GMC T6500 (Front, Rear); 1997-2002 GMC T7500 (Front, Rear) |
| Body Diameter | 2-3/8 in |
| Compressed Length | 14-5/8 in |
| Extended Length | 23-3/8 in |
| Lower Mount | S6 |
| Parts Pack | (2) MONP1482 |
| Stroke Inch | 8-3/4 in |
| Type | Shock Absorber |
| Upper Mount | S6 |
| Finish | Painted |
| Includes | (2) MONP1482 |
| Material | Chrome |
| Shock Type | Gas Charged |
| Travel Length | 8.75 in |
| Manufacturer Part Number | 65413 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 65413 |
| M65413 |
| 22064233 |
| 22064804 |
| 22165187 |
| 57365413 |
| 650413 |
| 8220642330 |
| 8220642340 |
| 85325 |
| AMS650413 |
