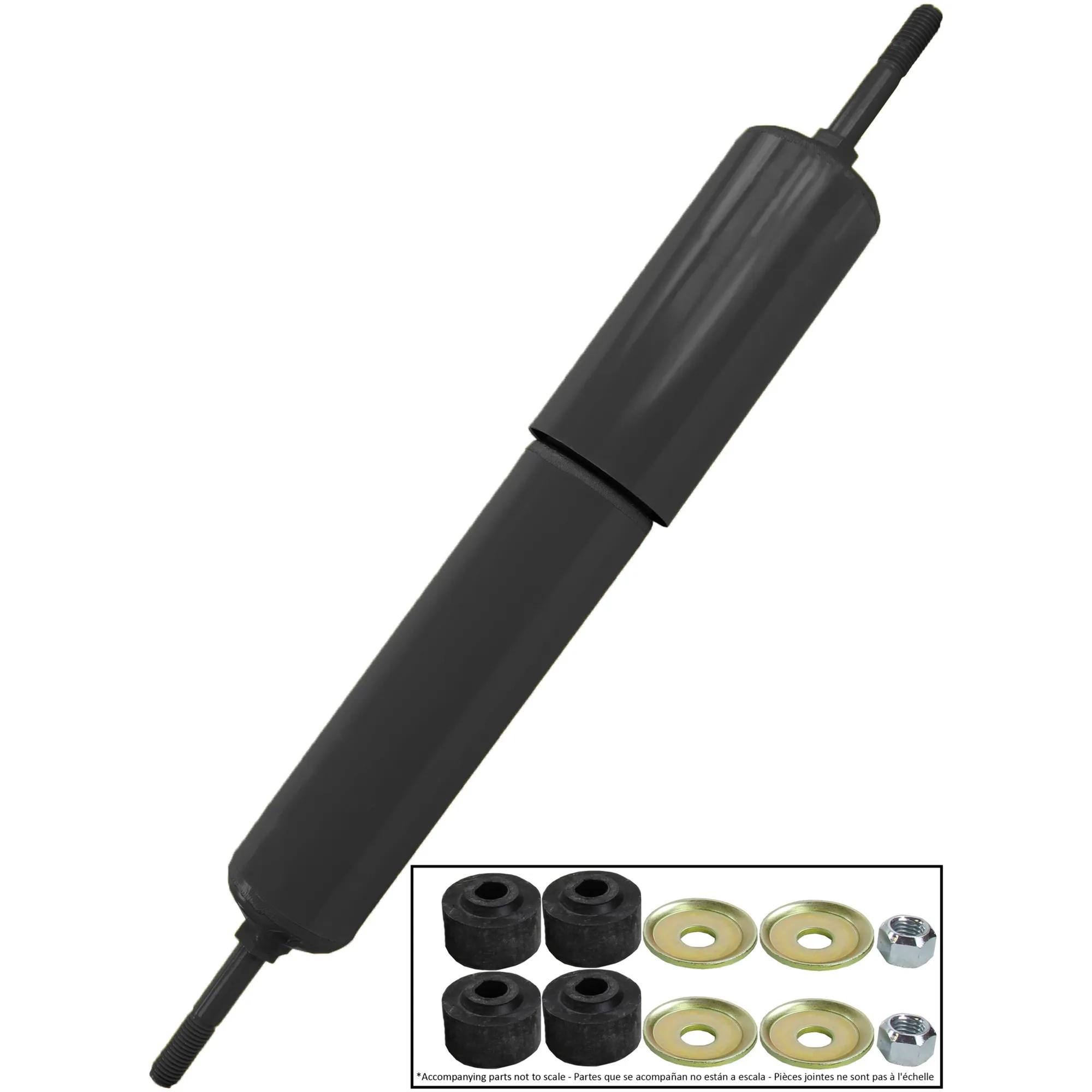

Monroe Magnum Heavy Duty Gas Charged Shock Absorber, Comp: 13-63/64 in, Ext: 23-23/64 in, Stroke: 9-3/8 in, 2-3/8 in Body
#MON65169
Product Overview
The Monroe® Magnum® shock absorber for class 6-8 vehicles is the first Gas Charged, large-bore shock for air spring and taper leaf suspensions. The nitrogen gas charge provides the fast response essential for today’s heavy-duty truck suspension systems.
Features & Benefits
- Hardened 23/32 in (18 mm) Diameter Chrome Piston Rod
- Resistance & Arc-Welded Mounts, Provides 15,000 lbs (6,804 kg) Of Tensile Strength For Maximum Durability
- Large 1-3/4 in (44.5 mm) Piston Bore
- Single-Lip, Low-Friction Oil Seal
- Heavy Wall Drawn Over Mandrel Pressure Tube
- 2-3/8 in (60.3 mm) Reserve Tube
- 10-Stage Full Displaced Valving (On Most Applications)
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration.
- Patented Unique Hydraulic Rebound Lockout (When Required)
Specifications
| Application | 2004-2008 Chevrolet C8500 (Rear) (Qualifier: Replaces OE Part Number(s) 15174901, Low Profile Vehicle, with 12,000 (lb) - 17,000 (lb) Leaf Springs, For additional OE Part Number cross reference information, please refer to the product interchange, Shock Absorbers are 1.75 (in) Bore Diameter, Replaces OE Part Number(s) 15174903, with 19,000 (lb) Leaf Springs); 2006-2009 Chevrolet T8500 (Rear) (Qualifier: Replaces OE Part Number(s) 88982687 , with 15,000 (lb) - 23,000 (lb) Axle, For additional OE Part Number cross reference information, please refer to the product interchange, Shock Absorbers are 1.75 (in) Bore Diameter); 2004-2008 Chevrolet C6500 Kodiak (Rear) (Qualifier: Replaces OE Part Number(s) 15174901, with 19,000 (lb) Leaf Springs, For additional OE Part Number cross reference information, please refer to the product interchange, Shock Absorbers are 1.75 (in) Bore Diameter, Low Profile Vehicle, with 12,000 (lb) - 17,000 (lb) Leaf Springs); 2004-2008 Chevrolet C7500 Kodiak (Rear) (Qualifier: Replaces OE Part Number(s) 15174901, with 19,000 (lb) Leaf Springs, For additional OE Part Number cross reference information, please refer to the product interchange, Shock Absorbers are 1.75 (in) Bore Diameter, Low Profile Vehicle, with 12,000 (lb) - 17,000 (lb) Leaf Springs); 2006-2009 Chevrolet T6500 (Rear) (Qualifier: Replaces OE Part Number(s) 88982687 , with 15,000 (lb) - 23,000 (lb) Axle, For additional OE Part Number cross reference information, please refer to the product interchange, Shock Absorbers are 1.75 (in) Bore Diameter); 2006-2009 Chevrolet T7500 (Rear) (Qualifier: Replaces OE Part Number(s) 88982687 , with 15,000 (lb) - 23,000 (lb) Axle, For additional OE Part Number cross reference information, please refer to the product interchange, Shock Absorbers are 1.75 (in) Bore Diameter) |
| Body Diameter | 2-3/8 in |
| Compressed Length | 13-63/64 in |
| Extended Length | 23-23/64 in |
| Lower Mount | S6 |
| Parts Pack | (2) MONP1482 |
| Stroke Inch | 9-3/8 in |
| Upper Mount | S6 |
| Finish | Painted |
| Shock Type | Gas Charged Shock Absorber |
| Travel Length | 9.385 in |
| Manufacturer Part Number | 65169 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 65169 |
| M65169 |
| 15174901 |
| 15174903 |
| 50723 |
| 88982685 |
| 88982687 |
| B711001PLUS |
