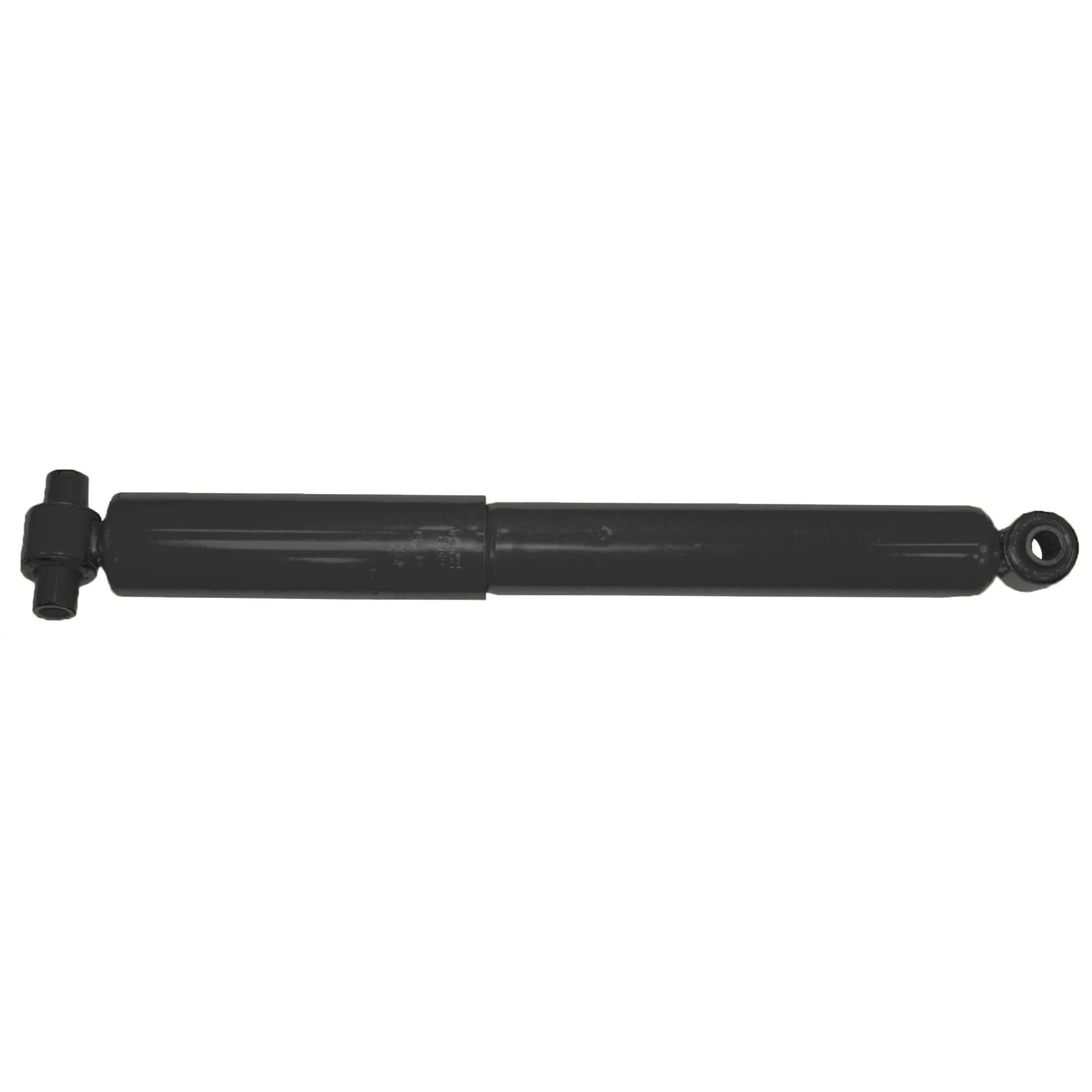

Monroe Magnum Heavy-Duty Gas Charged Shock Absorber, Comp: 15-29/32 in, Ext: 25-25/64 in, Stroke: 9-31/64 in
#MON65529
Product Overview
The Monroe® Magnum® shock absorber for class 6-8 vehicles is the first Gas Charged, large-bore shock for air spring and taper leaf suspensions. The nitrogen gas charge provides the fast response essential for today’s heavy-duty truck suspension systems.
Features & Benefits
- Hardened 23/32 in (18 mm) Diameter Chrome Piston Rod
- Resistance & Arc-Welded Mounts, Provides 15,000 lbs (6,804 kg) Of Tensile Strength For Maximum Durability
- Large 1-3/4 in (44.5 mm) Piston Bore
- Single-Lip, Low-Friction Oil Seal
- Heavy Wall Drawn Over Mandrel Pressure Tube
- 2-3/8 in (60.3 mm) Reserve Tube
- 10-Stage Full Displaced Valving (On Most Applications)
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration.
- Patented Unique Hydraulic Rebound Lockout (When Required)
Specifications
| Compressed Length | 15-29/32 in |
| Extended Length | 25-25/64 in |
| Lower Mount | LS86 |
| Stroke Inch | 9-31/64 in |
| Type | Shock Absorber |
| Upper Mount | LS59 |
| Shock Type | Gas Charged |
| Travel Length | 9.485 in |
| Manufacturer Part Number | 65529 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 65529 |
| M65529 |
| 1012594000 |
