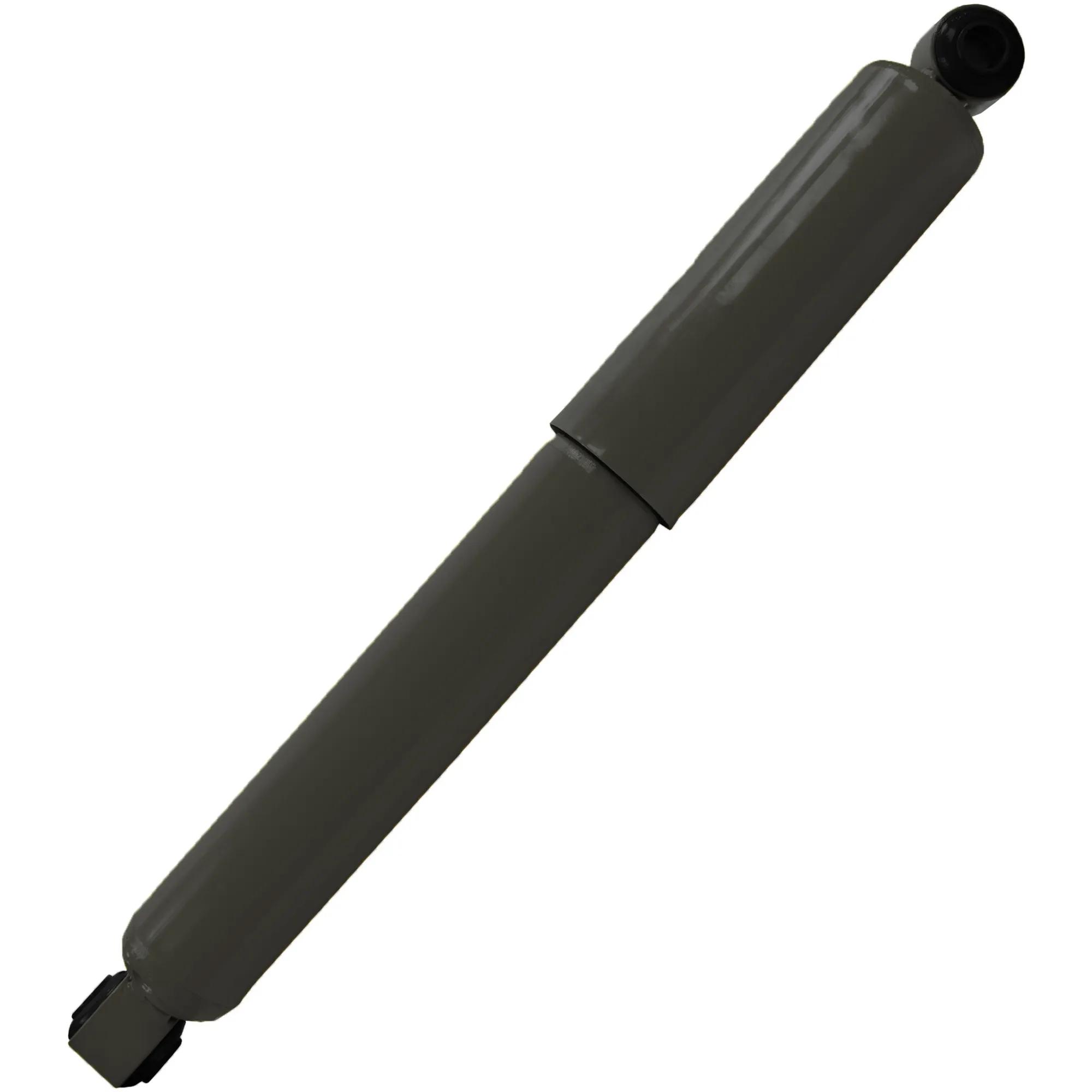

Monroe Magnum Heavy-Duty Shock Absorber, 14 in Compressed, 22-1/2 in Extended, 8-1/2 in Stroke, Painted Metal, Nitrogen Gas Charged
#MON65109
Sommaire du produit
The Monroe® Magnum® shock absorber is designed for class 6-8 heavy-duty trucks and buses, featuring a nitrogen gas charge and large bore for fast response and consistent control. It is ideal for air spring and taper leaf suspensions, providing improved ride, handling, and durability under demanding conditions. Shock Absorber, Painted, Metal, 14 in Compressed Length, 22.5 in Extended Length, LS54 Lower Mount, 8.5 in Travel Length, LS54 Upper Mount
Caractéristiques et avantages
- Large 1-3/4 in (44.5 mm) Piston Bore.
- Hardened 23/32 in (18 mm) Diameter Chrome Piston Rod
- Heavy Wall Drawn Over Mandrel Pressure Tube.
- 2-3/8 in (60.3 mm) Reserve Tube.
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration - On Most Applications
- Patented Unique Hydraulic Rebound Lockout (When Required).
- For hardworking commercial vehicles - designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
- 10-Stage Full Displaced Valving (On Most Applications)
- When Combined, The Gas Charge & Large-Bore Provide The Consistent Control Necessary For Demanding Truck Suspensions.
- Consistent ride - all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8 in reserve tube holds more fluid to improve performance (most applications)
- Single-Lip, Low-Friction Oil Seal.
- Resistance & Arc-Welded Mounts, Provides 15,000 lbs (6,804 kg) Of Tensile Strength For Maximum Durability.
Spécifications
| Application | 1988-2006 Thomas School Bus (Front); 1990-1994 International 4600 (Front); 1990-2003 International 4700 (Front); 1990-2003 International 4800 (Front); 1990-2003 International 4900 (Front); 1989-1994 International 8300 (Front); 1989-1999 International 9300 (Front); 1989-1996 International 9600 (Front); 1989-1996 International 9700 (Front); 1990-2003 International 8100 (Front); 1990-1998 International 8200 (Front); 1990-1999 International 9400 (Front); 1999-2014 International 5600i (Front) |
| Compressed Length | 14 in |
| Dust Shield | Yes |
| Extended Length | 22-1/2 in |
| Lower Mount | LS54 |
| Stroke Inch | 8-1/2 in |
| Upper Mount | LS54 |
| Finish | Painted |
| Material | Metal |
| Travel Length | 8.5 in |
| Manufacturer Part Number | 65109 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges et pièces équivalentes:
| 65109 |
| M65109 |
| 1667520C1 |
| 20849243 |
| 3919939 |
| 65109-MS |
| AMS65109 |
| F65109 |
| MAE 65109 |
| MON65109 |
| ZZSA65109 |
| 57365109 |
| SA65109 |
| 650109 |
| 650109MT |
| 654953 |
| AMS650109 |
