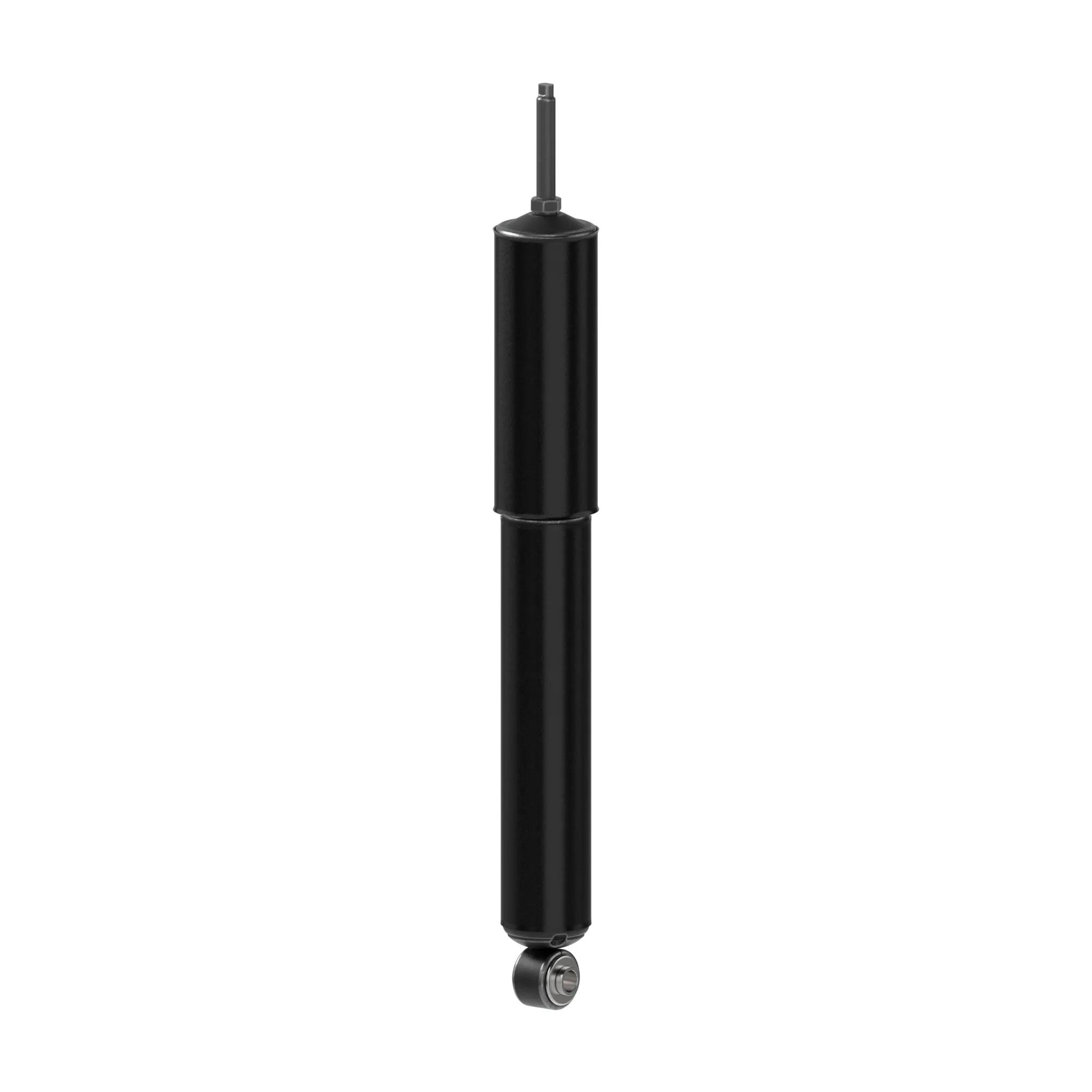

Monroe Magnum Heavy Duty Shock Absorber, Gas Charged Large-Bore, Comp 13-3/8 in, Ext 20-7/8 in, Stroke 7-1/2 in, 2-3/8 in Body
#MON65167
Product Overview
The Monroe® Magnum® shock absorber for class 6-8 vehicles is the first Gas Charged, large-bore shock for air spring and taper leaf suspensions. The nitrogen gas charge provides the fast response essential for today’s heavy-duty truck suspension systems.
Features & Benefits
- 2-3/8 in (60.3 mm) Reserve Tube.
- Large 1-3/4 in (44.5 mm) Piston Bore.
- 10-Stage Full Displaced Valving (On Most Applications)
- Resistance & Arc-Welded Mounts, Provides 15,000 lbs (6,804 kg) Of Tensile Strength For Maximum Durability.
- Single-Lip, Low-Friction Oil Seal.
- Patented Unique Hydraulic Rebound Lockout (When Required).
- Heavy Wall Drawn Over Mandrel Pressure Tube.
- When Combined, The Gas Charge & Large-Bore Provide The Consistent Control Necessary For Demanding Truck Suspensions.
- Hardened 23/32 in (18 mm) Diameter Chrome Piston Rod
Specifications
| Body Diameter | 2-3/8 in |
| Compressed Length | 13-3/8 in |
| Dust Shield | Yes |
| Extended Length | 20-7/8 in |
| Lower Mount | LS47 |
| Parts Pack | MONP01167 |
| Stroke Inch | 7-1/2 in |
| Upper Mount | S5 |
| Finish | Painted |
| Shock Type | Gas Charged, Large-bore |
| Travel Length | 7.5 in |
| Manufacturer Part Number | 65167 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 65167 |
| M65167 |
| 7C3418045HB |
| 05-472 |
| 12150006 |
| 24186674 |
| 2725539647 |
| 349004 |
| 565121 |
| 7C3Z18124HA |
| 7C3Z18124NJA |
| ASH12171 |
| ASH24498 |
| BC3Z18124AC |
| BC3Z18124J |
| BC3Z18124Q |
| BC3Z18124W |
| FC3Z18124A |
| FC3Z18124B |
| G63969 |
| HC3Z18124J |
| HC3Z18124Q |
| HC3Z18124W |
| HD E144 |
| LC3Z18124F |
| LC3Z18124G |
| LC3Z18124S |
| PC3C18045CGA |
| PC3C18045CHA |
| PC3C18045HA |
| PC3C18045SGA |
| PC3Z18124CGA |
| PC3Z18124CHA |
| PC3Z18124HA |
| PC3Z18124SGA |
