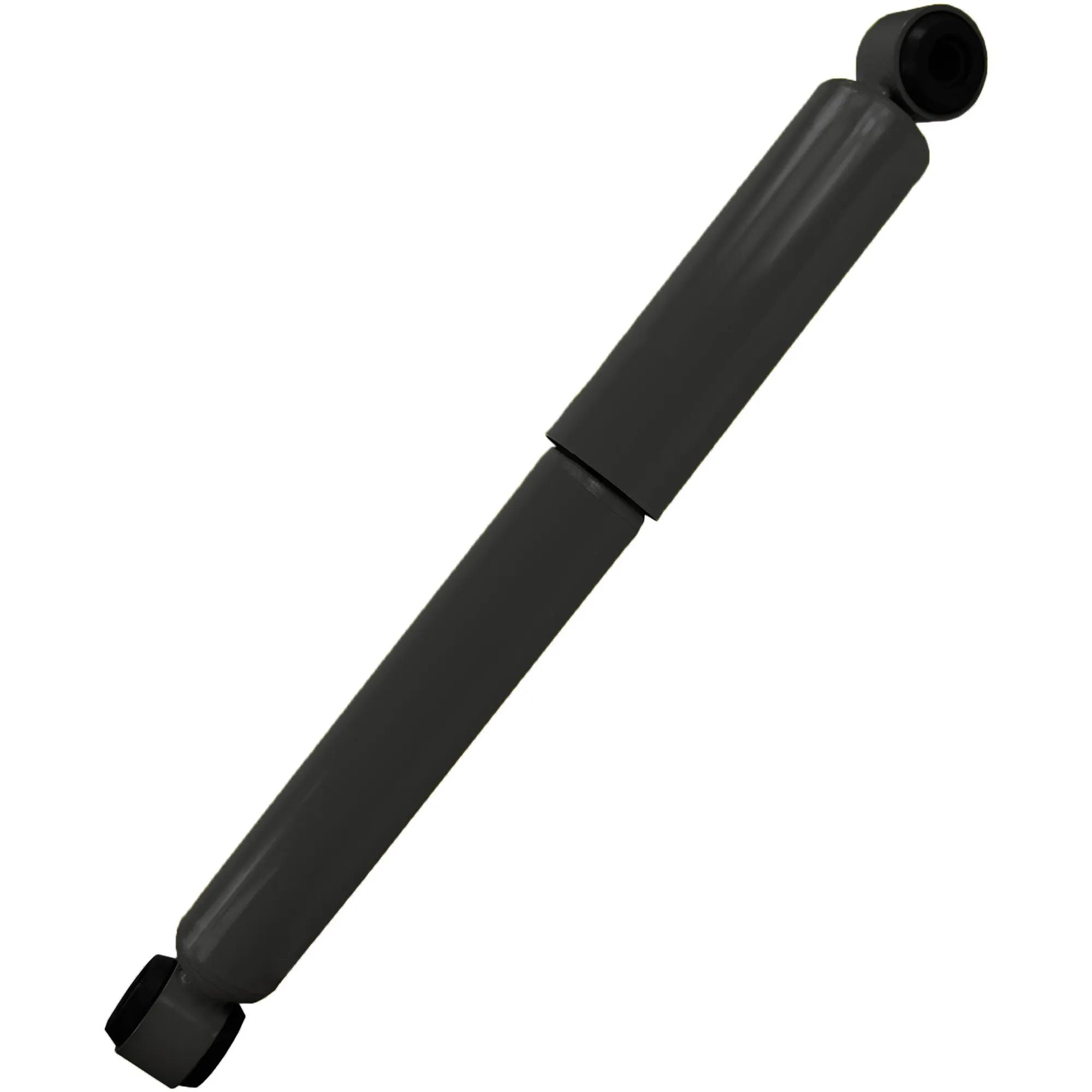

Monroe Magnum Heavy-Duty Shock Absorber, Nitrogen Gas Charged, 15.5 in Compressed, 24.5 in Extended, 9 in Stroke, Painted Metal, LS54 Mounts
#MON65124
Product Overview
The Monroe® Magnum® shock absorber is designed for class 6-8 heavy-duty trucks and buses, featuring a nitrogen gas charge for fast response and improved ride quality. Its large bore and 2-3/8 in reserve tube provide consistent control and durability for demanding air spring and taper leaf suspensions, maintaining tire-to-road contact by reducing aeration and shock fade. Shock Absorber, Painted, Metal, 15.5 in Compressed Length, 24.5 in Extended Length, LS54 Lower Mount, 9 in Travel Length, LS54 Upper Mount
Features & Benefits
- Large 1-3/4 in (44.5 mm) Piston Bore.
- Hardened 23/32 in (18 mm) Diameter Chrome Piston Rod
- Heavy Wall Drawn Over Mandrel Pressure Tube.
- 2-3/8 in (60.3 mm) Reserve Tube.
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration - On Most Applications
- Patented Unique Hydraulic Rebound Lockout (When Required).
- For hardworking commercial vehicles - designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
- 10-Stage Full Displaced Valving (On Most Applications)
- When Combined, The Gas Charge & Large-Bore Provide The Consistent Control Necessary For Demanding Truck Suspensions.
- Consistent ride - all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8 in reserve tube holds more fluid to improve performance (most applications)
- Single-Lip, Low-Friction Oil Seal.
- Resistance & Arc-Welded Mounts, Provides 15,000 lbs (6,804 kg) Of Tensile Strength For Maximum Durability.
Specifications
| Body Diameter | 2-3/8 in |
| Compressed Length | 15-1/2 in |
| Dust Shield | Yes |
| Extended Length | 24-1/2 in |
| Lower Mount | LS54 |
| Stroke Inch | 9 in |
| Type | Nitrogen Gas Charged |
| Upper Mount | LS54 |
| Finish | Painted |
| Includes | Nitrogen Gas Charge |
| Material | Metal |
| Travel Length | 9 in |
| Manufacturer Part Number | 65124 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 65124 |
| 85053 |
| M65124 |
| 32988 |
| 373013405 |
| 373013409 |
| 373904402 |
| 373904403 |
| 665682 |
| 66568240Y |
| 89442 |
