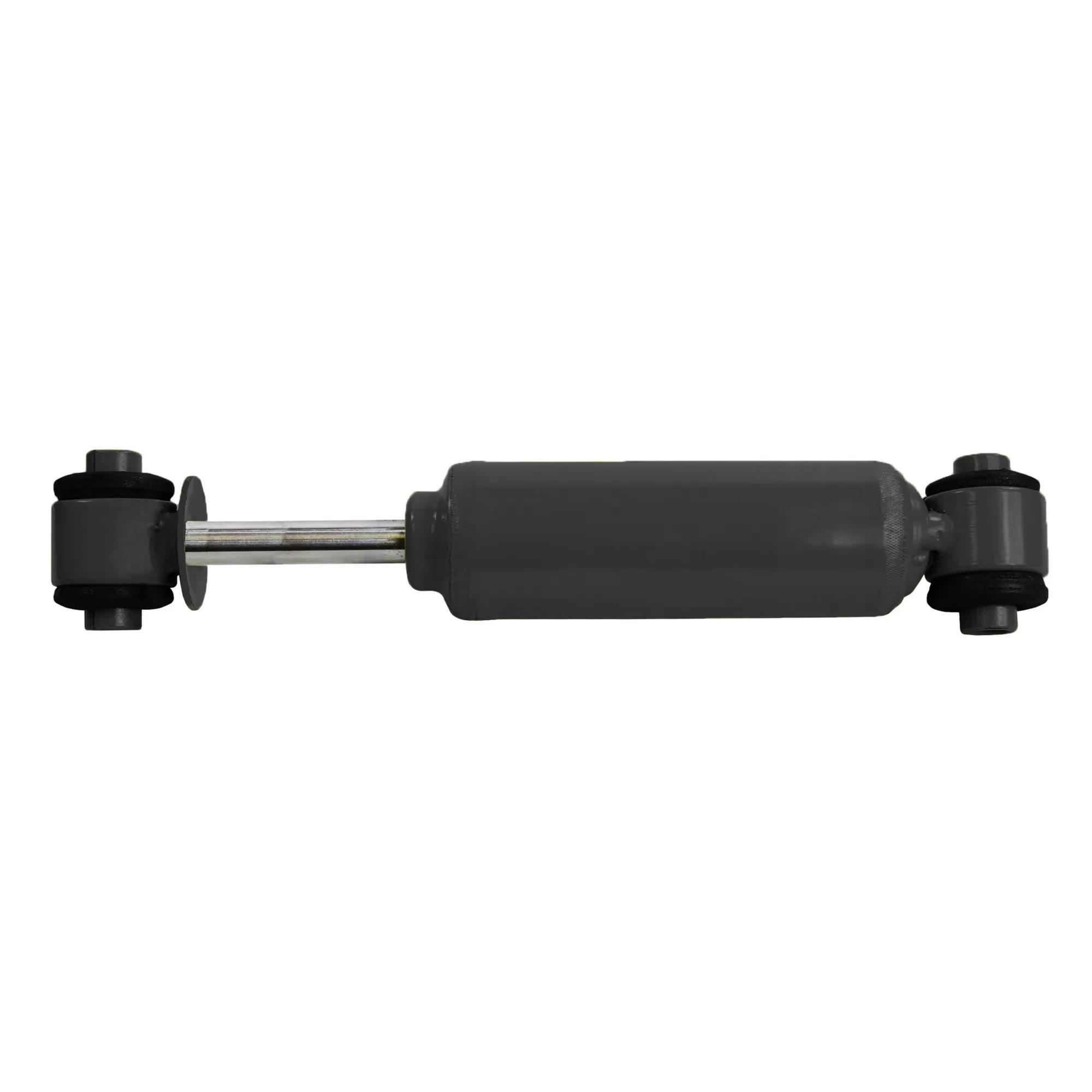

Monroe Magnum Nitrogen Gas Charged Heavy Duty Cab Shock Absorber, Comp 7-3/8 in, Ext 9-3/4 in, Stroke 2-3/8 in, 1-3/8 in Bore, LS8 Mounts
#MON66193
Product Overview
Designed for heavy-duty cab suspensions, the Gas Charged Monroe® Magnum® Cab shock isolates the cab from the frame for a smoother, more comfortable ride. Utilizes velocity-sensitive valving to deliver a new standard in driver comfort (most applications).
Features & Benefits
- Resistance & Arc-Welded Mounts, Provides 15,000 lbs (6,804 kg) Of Tensile Strength For Maximum Durability
- Urethane Rebound Bumper (When Required)
- 1-3/8 in Bore: Lower Operating Pressure Than Standard 1 in Bore Units
- Multi-Lip Fluid Seal Designed For Smooth Performance, Long Life & Reduced Friction
- 2 in Or 2-3/8 in (50.8 mm Or 60.3 mm) Reserve Tube (Where Required)
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration.
- Exclusive Groove Tube Technology (On Most Applications)
- BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
Specifications
| Application | 1999-2008 Sterling Truck AT9500 (Cab) (Qualifier: Replaces OE Part Number(s) F7HT5K407BA, For additional OE Part Number cross reference information, please refer to the product interchange); 1996-1998 Ford AT9513 (Cab) (Qualifier: Replaces OE Part Number(s) F7HT5K407BA, For additional OE Part Number cross reference information, please refer to the product interchange); 1997-1998 Ford AT9522 (Cab) (Qualifier: Replaces OE Part Number(s) F7HT5K407BA, For additional OE Part Number cross reference information, please refer to the product interchange) |
| Body Diameter | 2-3/8 in |
| Compressed Length | 7-3/8 in |
| Dust Shield | No |
| Extended Length | 9-3/4 in |
| Lower Mount | LS8 |
| Stroke Inch | 2-3/8 in |
| Upper Mount | LS8 |
| Shock Type | Gas Charged (Nitrogen) |
| Travel Length | 2.375 in |
| Manufacturer Part Number | 66193 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 66193 |
| M66193 |
| 1845067000 |
| 83025 |
| 83034 |
| F6HT5K407AB |
| D5166 |
