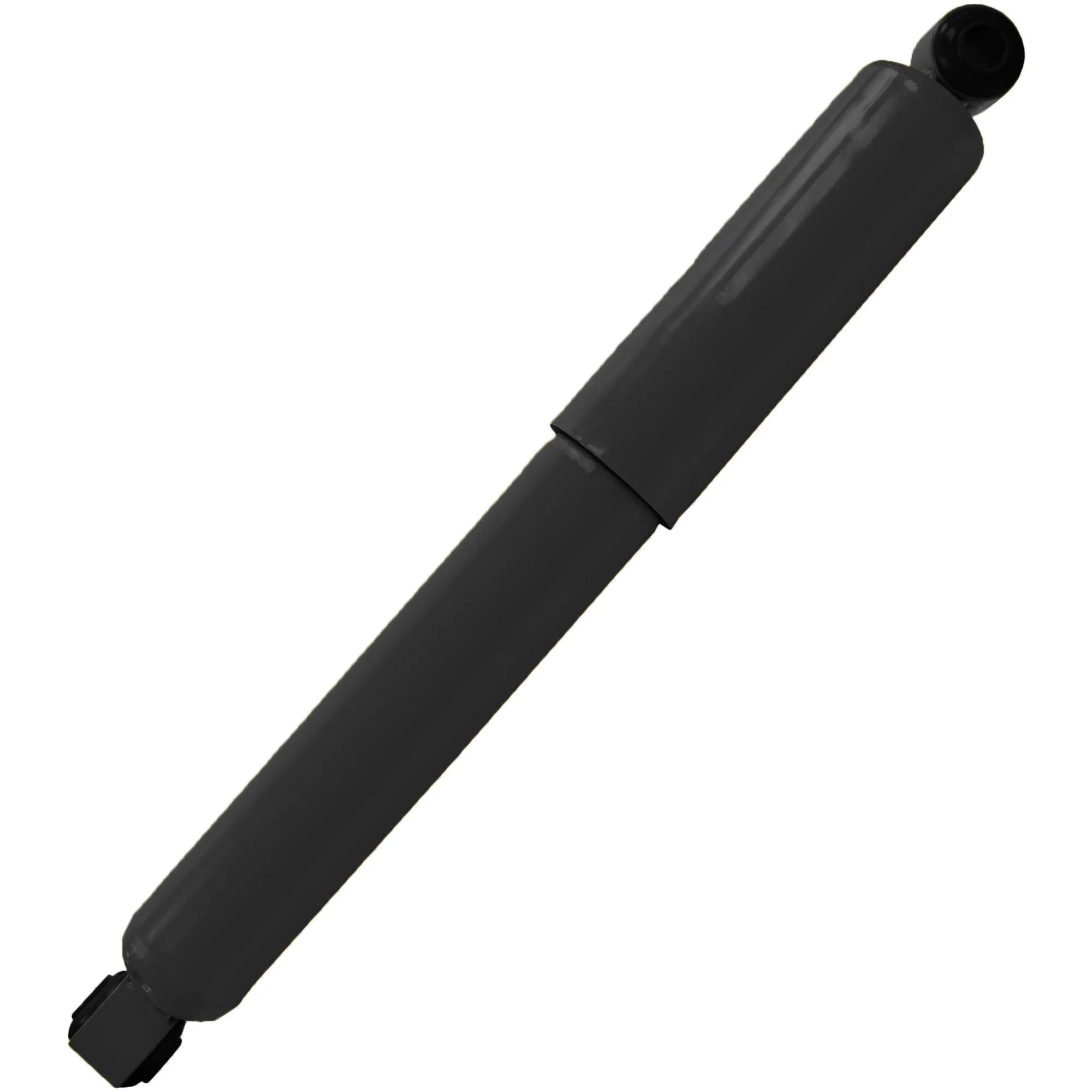

Monroe Magnum Nitrogen Gas Charged Heavy-Duty Shock Absorber, 2.38 in Body Dia, 13.59 in Compressed, 20.61 in Extended, 7.02 in Stroke
#MON65433
Product Overview
The Monroe® Magnum® shock absorber is designed for class 6-8 heavy-duty trucks and buses, featuring a nitrogen gas charge for fast response and improved ride quality. Its large bore and reserve tube provide consistent control and durability for demanding air spring and taper leaf suspensions, maintaining tire-to-road contact by reducing aeration and shock fade. Shock Absorber, Painted, Metal, 2.38 in Body Dia, 13.5938 in Compressed Length, 20.6094 in Extended Length, LS54 Lower Mount, 7.015 in Travel Length, LS54 Upper Mount
Features & Benefits
- Large 1-3/4 in (44.5 mm) Piston Bore.
- Hardened 23/32 in (18 mm) Diameter Chrome Piston Rod
- Heavy Wall Drawn Over Mandrel Pressure Tube.
- 2-3/8 in (60.3 mm) Reserve Tube.
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration - On Most Applications
- Patented Unique Hydraulic Rebound Lockout (When Required).
- For hardworking commercial vehicles - designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
- 10-Stage Full Displaced Valving (On Most Applications)
- When Combined, The Gas Charge & Large-Bore Provide The Consistent Control Necessary For Demanding Truck Suspensions.
- Consistent ride - all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8 in reserve tube holds more fluid to improve performance (most applications)
Specifications
| Application | 2000-2012 Spartan Motors Summit (Rear); 2002 Freightliner XC (Front); 2001-2020 Freightliner Coronado (Rear); 1995-1997 Freightliner V Line (Front); 1987-2021 Kenworth T800 (Rear); 2010-2020 Kenworth T400 (Rear); 2000-2011 Peterbilt 387 (Rear); 1986-2008 Peterbilt 357 (Rear); 1988-2007 Peterbilt 378 (Rear); 1986-2007 Peterbilt 379 (Rear); 1987-1996 Peterbilt 375 (Rear); 2008-2018 Peterbilt 365 (Rear); 2014-2020 Peterbilt 567 (Rear); 1981-2006 Peterbilt 362 (Rear); 1987-2001 Peterbilt 377 (Rear); 1989-1997 Peterbilt 372 (Rear); 2008-2018 Peterbilt 367 (Rear); 2008-2024 Peterbilt 389 (Rear); 2018-2024 International HX520 (Rear); 2019-2025 International HV613 (Rear) |
| Body Diameter | 2.38 in |
| Compressed Length | 13.59 in |
| Dust Shield | Yes |
| Extended Length | 20.61 in |
| Lower Mount | LS54 |
| Stroke Inch | 7-1/64 in |
| Upper Mount | LS54 |
| Finish | Painted |
| Material | Metal |
| Travel Length | 7.015 in |
| Manufacturer Part Number | 65433 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 557013 |
| 65433 |
| 90045083 |
| M65433 |
| MON557013 |
| 665174 |
| 57365433 |
| 650433MT |
| 680570 |
| 85326 |
| 85910 |
| 89437 |
| 90044083 |
| AMS650433 |
| B23316 |
| S23316 |
| 10-13760-000 |
