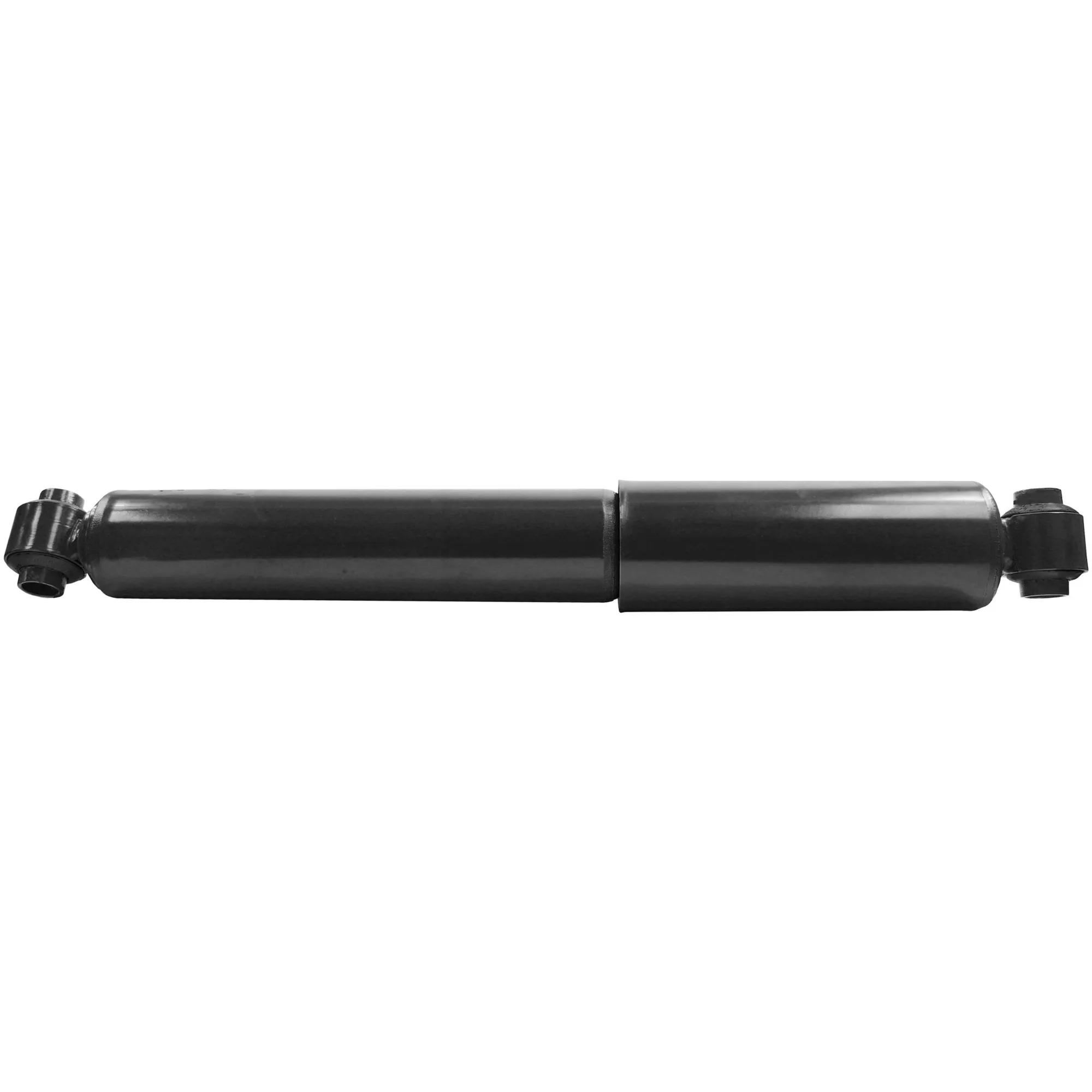

Monroe Magnum Nitrogen Gas Charged Heavy Duty Shock Absorber, Class 6-8, 13.78 in Compressed, 21.31 in Extended, 7.53 in Stroke
#MON65541
Product Overview
The Monroe® Magnum® shock absorber for class 6-8 vehicles is the first Gas Charged, large-bore shock designed for air spring and taper leaf suspensions. The nitrogen gas charge provides fast response essential for today’s heavy-duty truck suspension systems, maintaining tire-to-road contact by reducing aeration and shock fade for improved ride and handling. Shock Absorber, 13.78 in Compressed Length, 21.31 in Extended Length, LS95 Lower Mount, 7.53 in Travel Length, LS95 Upper Mount
Features & Benefits
- Large 1-3/4 in (44.5 mm) Piston Bore.
- Hardened 23/32 in (18 mm) Diameter Chrome Piston Rod.
- Heavy Wall Drawn Over Mandrel Pressure Tube.
- 2-3/8 in (60.3 mm) Reserve Tube.
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration - On Most Applications
- Patented Unique Hydraulic Rebound Lockout (When Required).
- For hardworking commercial vehicles - designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
- 10-Stage Full Displaced Valving (On Most Applications).
- When Combined, The Gas Charge & Large-Bore Provide The Consistent Control Necessary For Demanding Truck Suspensions.
- Consistent ride - all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8 in reserve tube holds more fluid to improve performance (most applications)
- Single-Lip, Low-Friction Oil Seal.
- Resistance & Arc-Welded Mounts, Provides 15,000 lbs (6,804 kg) Of Tensile Strength For Maximum Durability.
Specifications
| Compressed Length | 13-25/32 in |
| Dust Shield | Yes |
| Extended Length | 21-5/16 in |
| Lower Mount | LS95 |
| Stroke Inch | 7-17/32 in |
| Upper Mount | LS95 |
| Includes | Shock |
| Shock Type | Gas Charged (Nitrogen) |
| Travel Length | 7.53 in |
| Manufacturer Part Number | 65541 |
| Product Category | Shock Absorber |
| Quantity | 1 |
