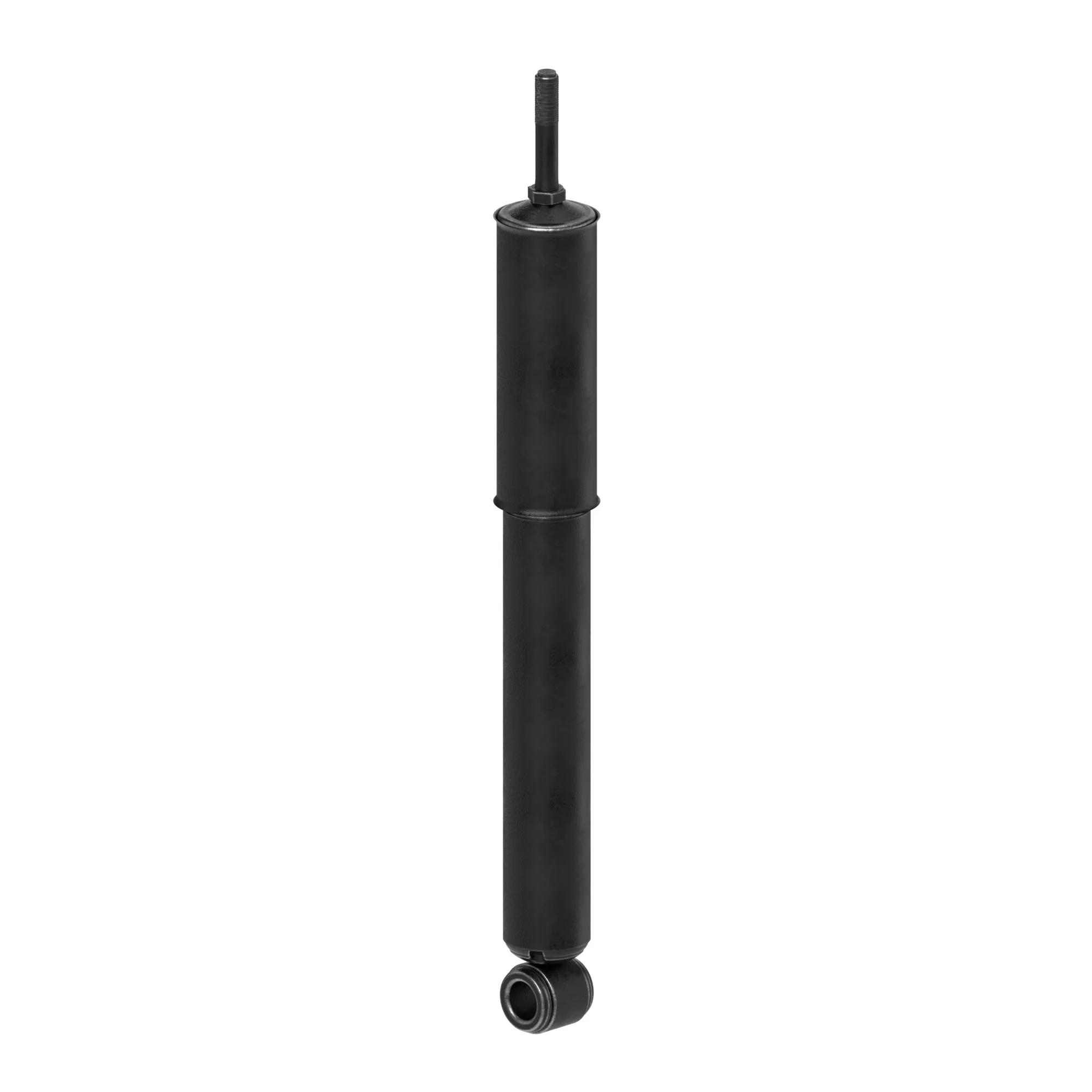

Monroe Magnum Nitrogen Gas Charged Shock Absorber, 15-13/16 in Compressed, 23-61/64 in Extended, 8-5/32 in Stroke, S6/L4 Mounts for Class 6-8 Trucks
#MON65534
Product Overview
The Monroe® Magnum® shock absorber is designed for class 6-8 heavy-duty trucks and buses, featuring a nitrogen gas charge and large bore for fast response and consistent control. It is ideal for air spring and taper leaf suspensions, providing improved ride and handling by maintaining tire-to-road contact and reducing aeration and shock fade.Shock Absorber, 15.81 in Compressed Length, 23.96 in Extended Length, L4 Lower Mount, 8.15 in Travel Length, S6 Upper Mount
Features & Benefits
- Large 1-3/4 in (44.5 mm) Piston Bore.
- Hardened 23/32 in (18 mm) Diameter Chrome Piston Rod.
- Heavy Wall Drawn Over Mandrel Pressure Tube.
- 2-3/8 in (60.3 mm) Reserve Tube.
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration - On Most Applications
- Patented Unique Hydraulic Rebound Lockout (When Required).
- For hardworking commercial vehicles - designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
- 10-Stage Full Displaced Valving (On Most Applications).
- When Combined, The Gas Charge & Large-Bore Provide The Consistent Control Necessary For Demanding Truck Suspensions.
- Consistent ride - all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8 in reserve tube holds more fluid to improve performance (most applications)
- Single-Lip, Low-Friction Oil Seal.
- Resistance & Arc-Welded Mounts, Provides 15,000 lbs (6,804 kg) Of Tensile Strength For Maximum Durability.
Specifications
| Compressed Length | 15-13/16 in |
| Dust Shield | Yes |
| Extended Length | 23-61/64 in |
| Lower Mount | L4 |
| Parts Pack | MONP01482 |
| Stroke Inch | 8-5/32 in |
| Type | Shock Absorber |
| Upper Mount | S6 |
| Shock Type | Gas Charged (Nitrogen) |
| Travel Length | 8.15 in |
| Manufacturer Part Number | 65534 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 308350 |
| 671656 |
| C711013 |
| C716004 |
| 62-858 |
