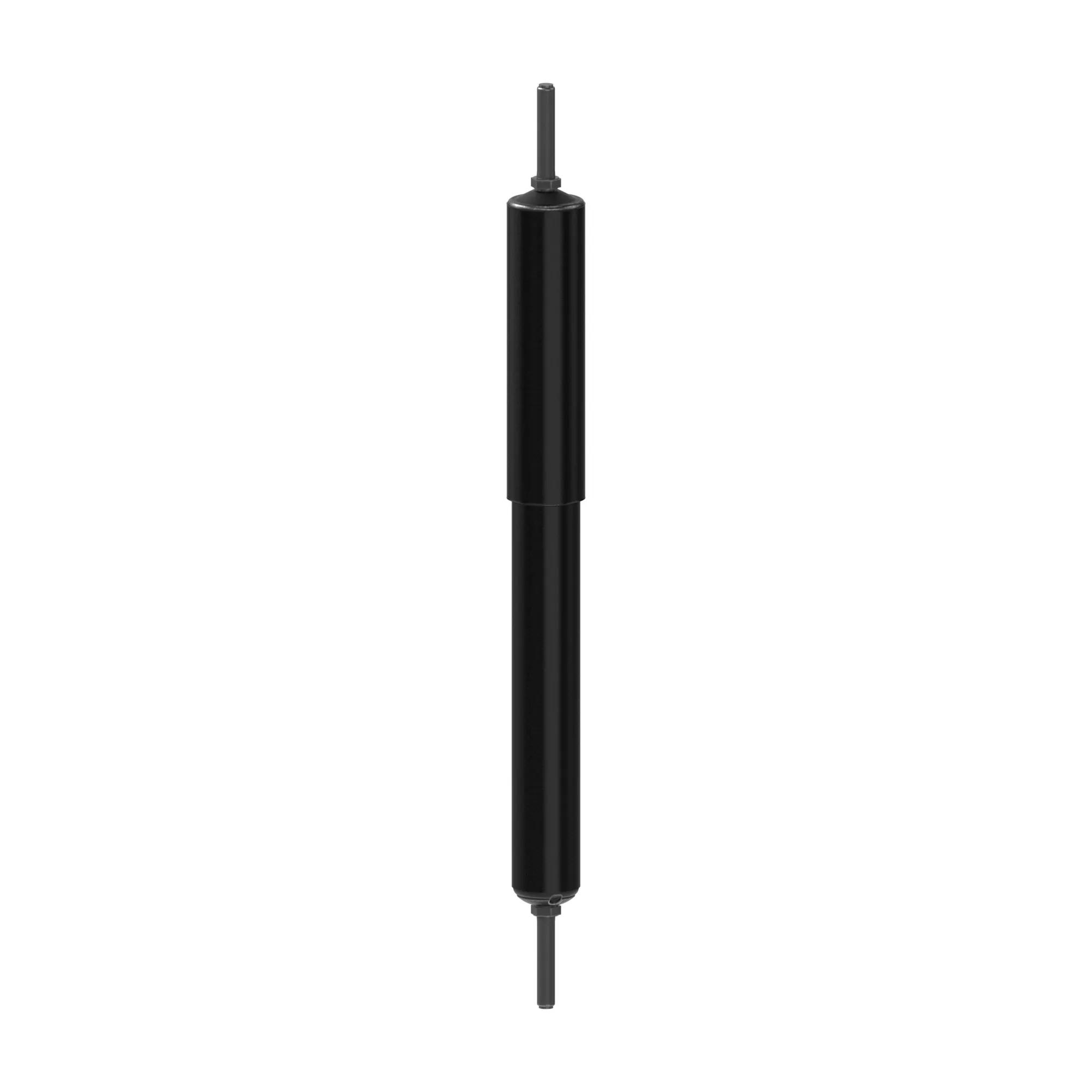

Monroe Magnum Nitrogen Gas Charged Shock Absorber, 15-5/8 in Compressed, 26 in Extended, 10-3/8 in Stroke, S6 Mount, Painted Metal
#MON65468
Product Overview
The Monroe® Magnum® shock absorber is designed for class 6-8 heavy-duty trucks and buses, featuring a nitrogen gas charge and large bore for superior ride control. It is engineered for air spring and taper leaf suspensions, providing fast response and consistent damping to maintain tire-to-road contact and reduce shock fade, ensuring improved ride and handling under demanding conditions. Shock Absorber, Painted, Metal, 15.625 in Compressed Length, 26 in Extended Length, S6 Lower Mount, 10.375 in Travel Length, S6 Upper Mount
Features & Benefits
- Large 1-3/4 in (44.5 mm) Piston Bore.
- Hardened 23/32 in (18 mm) Diameter Chrome Piston Rod
- Heavy Wall Drawn Over Mandrel Pressure Tube.
- 2-3/8 in (60.3 mm) Reserve Tube.
- Patented Unique Hydraulic Rebound Lockout (When Required).
- For hardworking commercial vehicles - designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
- 10-Stage Full Displaced Valving (On Most Applications)
- When Combined, The Gas Charge & Large-Bore Provide The Consistent Control Necessary For Demanding Truck Suspensions.
- Consistent ride - all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8 in reserve tube holds more fluid to improve performance (most applications)
- Single-Lip, Low-Friction Oil Seal.
- Resistance & Arc-Welded Mounts, Provides 15,000 lbs (6,804 kg) Of Tensile Strength For Maximum Durability.
Specifications
| Body Diameter | 2-3/8 in |
| Compressed Length | 15-5/8 in |
| Extended Length | 26 in |
| Lower Mount | S6 |
| Stroke Inch | 10-3/8 in |
| Type | Shock Absorber |
| Upper Mount | S6 |
| Finish | Painted |
| Includes | (2) MONP1482 |
| Material | Metal |
| Shock Mounting | Air spring and taper leaf suspensions |
| Shock Type | Gas Charged (Nitrogen) |
| Travel Length | 10.375 in |
| Manufacturer Part Number | 65468 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 65468 |
| 85069 |
| EUC85069 |
| M65468 |
| 15642863 |
| 665826 |
| 665844 |
| 8220648050 |
| 8220648060 |
| 8220648070 |
| C716005 |
| C716005PLUS |
| GAB85069 |
| M85069 |
