Product Overview

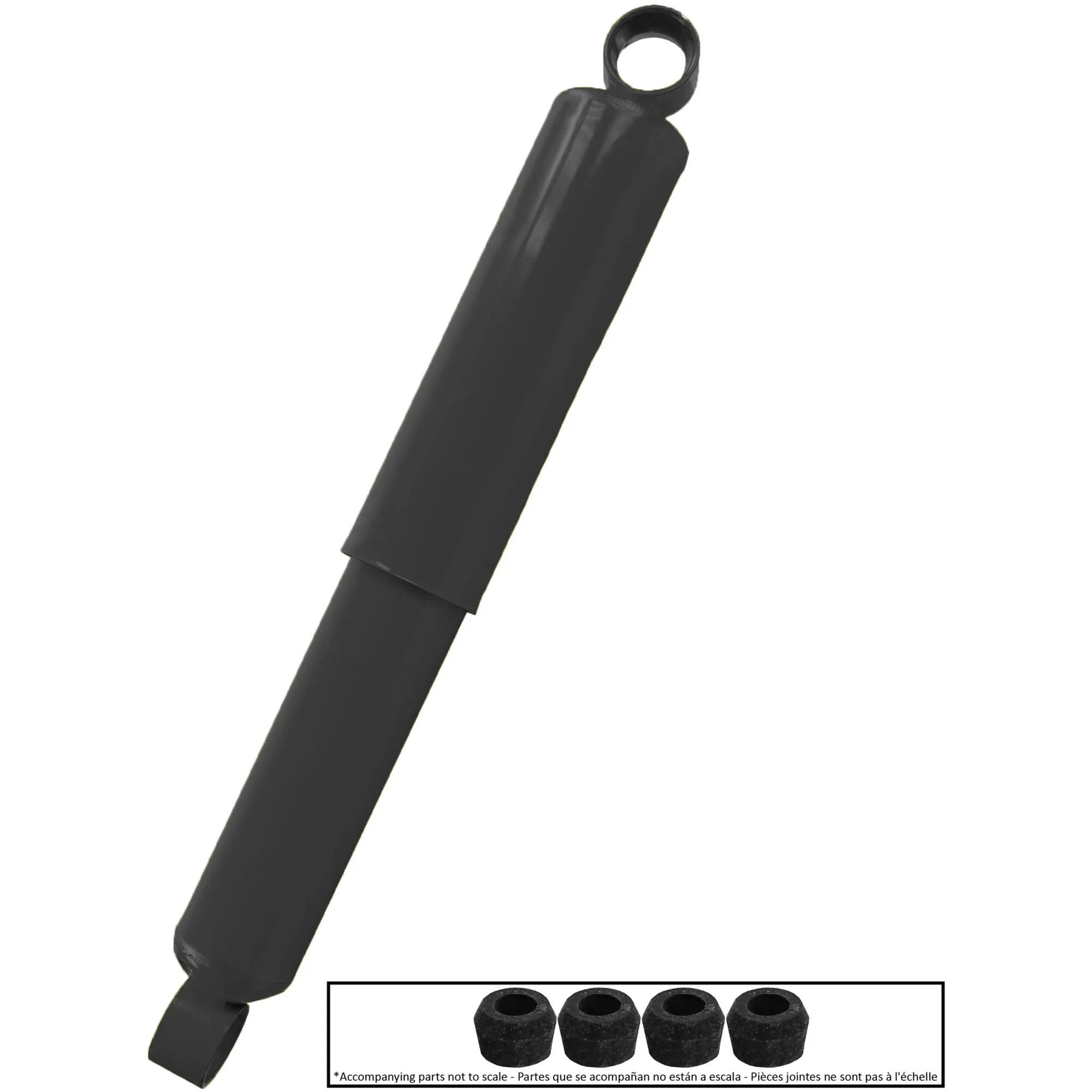

The Monroe® Magnum® shock absorber is designed for class 6-8 heavy-duty trucks and buses, featuring a nitrogen gas charge and large bore for fast response and consistent control. It is ideal for air spring and taper leaf suspensions, providing improved ride, handling, and durability under severe use conditions. Shock Absorber, Metal, 15.875 in Compressed Length, 24.75 in Extended Length, L3 Lower Mount, 8.875 in Travel Length, L3 Upper Mount
Features & Benefits
- Large 1-3/4 in (44.5 mm) Piston Bore.
- Hardened 23/32 in (18 mm) Diameter Chrome Piston Rod
- Heavy Wall Drawn Over Mandrel Pressure Tube.
- 2-3/8 in (60.3 mm) Reserve Tube.
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration - On Most Applications
- Patented Unique Hydraulic Rebound Lockout (When Required).
- Designed for hardworking commercial vehicles - handles demands of high mileage and severe use class 6-8 trucks and buses.
- 10-Stage Full Displaced Valving (On Most Applications)
- When Combined, The Gas Charge & Large-Bore Provide The Consistent Control Necessary For Demanding Truck Suspensions.
- All-weather fluid with special additives reduces oil breakdown and improves performance in extreme temperatures.
Specifications
| Application | 1999-2008 Sterling Truck LT9500 (Front); 1999-2008 Sterling Truck LT8500 (Front); 1999-2008 Sterling Truck AT9500 (Front); 1997-1998 Ford L8501 (Front); 1998 Ford L8511 (Front); 1996-1998 Ford L8513 (Front); 1998 Ford L9522 (Front); 1997-1998 Ford LT8501 (Front); 1996-1998 Ford LT8513 (Front); 1997-1998 Ford LT9501 (Front); 1996-1998 Ford AT9513 (Front); 1997-1998 Ford L9501 (Front); 1996-1998 Ford L9513 (Front); 1996-1997 Ford LT9513 (Front); 1997 Ford LT9522 (Front); 1997-1998 Ford AT9522 (Front) |
| Compressed Length | 15-7/8 in |
| Dust Shield | Yes |
| Extended Length | 24-3/4 in |
| Lower Mount | L3 |
| Parts Pack | MONP00119 |
| Stroke Inch | 8-7/8 in |
| Upper Mount | L3 |
| Material | Metal |
| Shock Mounting | Resistance & Arc-Welded Mounts |
| Shock Type | Gas Charged (Nitrogen) |
| Travel Length | 8.875 in |
| Manufacturer Part Number | 65429 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 65429 |
| M65429 |
| 3946228 |
| 65429-MS |
| 85055 |
| AMS650429 |
| AMS65429 |
| F65429 |
| F6HT18045EB |
| MAE 65429 |
| MON65429 |
| MSP65429 |
| ZZSA65429 |
| 57365429 |
| SA65429 |
| 650429MT |
| F6HT18045EC |
| F6HT18045EL |
| F6HT18045GB |
| F6HT18045GC |
| F6HZ18124E |
| F6HZ18124G |
