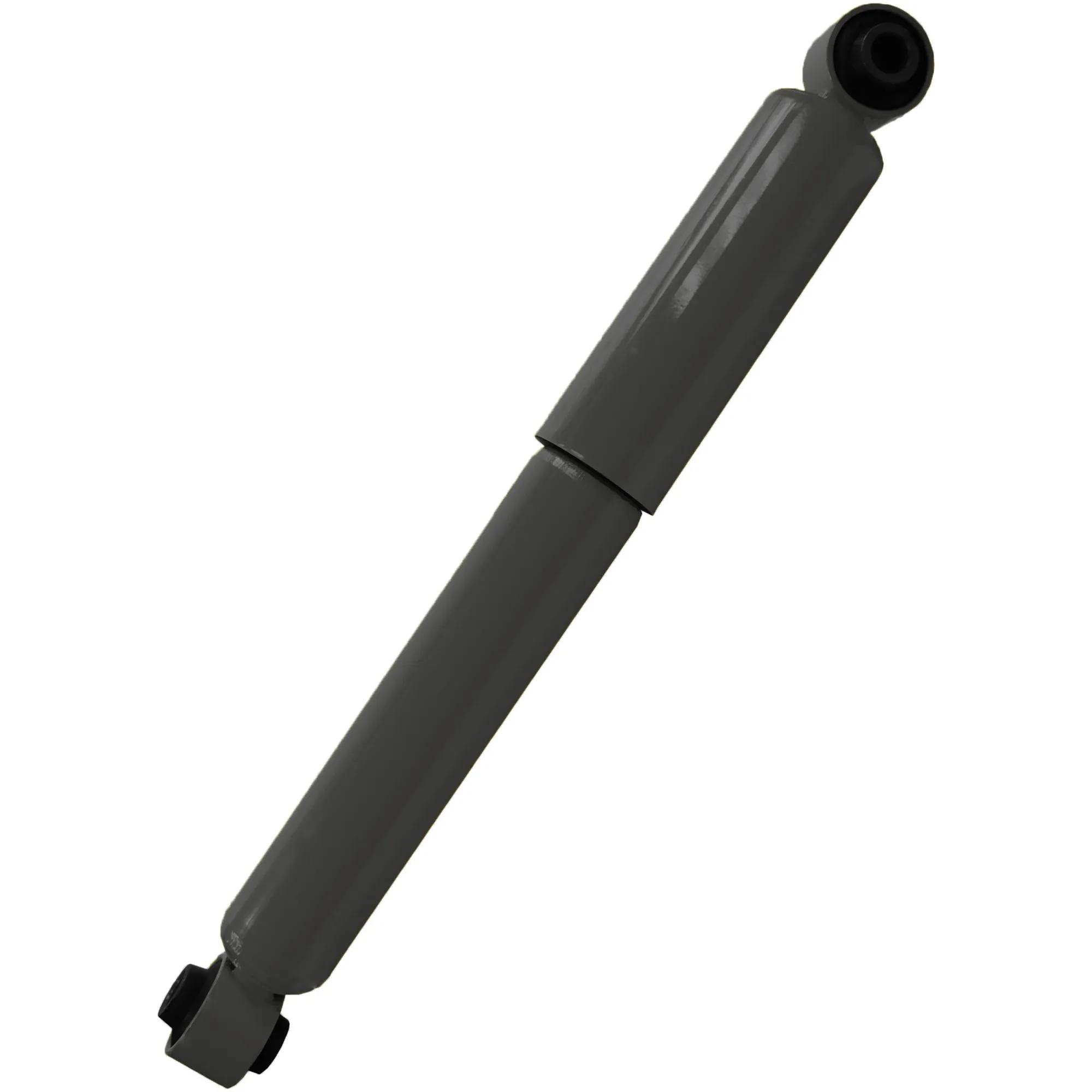

Monroe Magnum Nitrogen Gas Charged Shock Absorber, Painted Metal, 13-21/32 in Compressed, 21-13/32 in Extended, 7-47/64 in Stroke
#MON65162
Product Overview
The Monroe® Magnum® shock absorber is designed for class 6-8 heavy-duty trucks and buses, featuring a nitrogen gas charge for fast response and improved ride quality. It is engineered for air spring and taper leaf suspensions, providing exceptional handling, durability, and longer service life by reducing aeration and shock fade while maintaining tire-to-road contact.Shock Absorber, Painted, Metal, 13.656 in Compressed Length, 21.406 in Extended Length, LS86 Lower Mount, 7.75 in Travel Length, LS86 Upper Mount
Features & Benefits
- Hardened 23/32 in (18 mm) Diameter Chrome Piston Rod
- Resistance & Arc-Welded Mounts, Provides 15,000 lbs (6,804 kg) Of Tensile Strength For Maximum Durability
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration.
- Large 1-3/4 in (44.5 mm) Piston Bore
- Single-Lip, Low-Friction Oil Seal
- Heavy Wall Drawn Over Mandrel Pressure Tube
- Consistent ride - all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8 in reserve tube holds more fluid to improve performance (most applications)
- 10-Stage Full Displaced Valving (On Most Applications)
- 2-3/8 in (60.3 mm) Reserve Tube
- Exceptional handling - 10-stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/4 in bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
- For hardworking commercial vehicles - designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
- Patented Unique Hydraulic Rebound Lockout (When Required)
Specifications
| Body Diameter | 2-3/8 in |
| Compressed Length | 13-21/32 in |
| Extended Length | 21-13/32 in |
| Lower Mount | LS86 |
| Stroke Inch | 7-47/64 in |
| Upper Mount | LS86 |
| Finish | Painted |
| Material | Metal |
| Shock Type | Gas Charged (Nitrogen) |
| Travel Length | 7.75 in |
| Manufacturer Part Number | 65162 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 65162 |
| M65162 |
| 1013592000 |
| 1013745000 |
| 106303 |
| 119797 |
| 47170000456 |
| 58913007 |
| 58913008 |
| 58913009 |
| 58913011 |
| 589135 |
| 85959 |
| 85990 |
| M85959 |
| HD30M |
