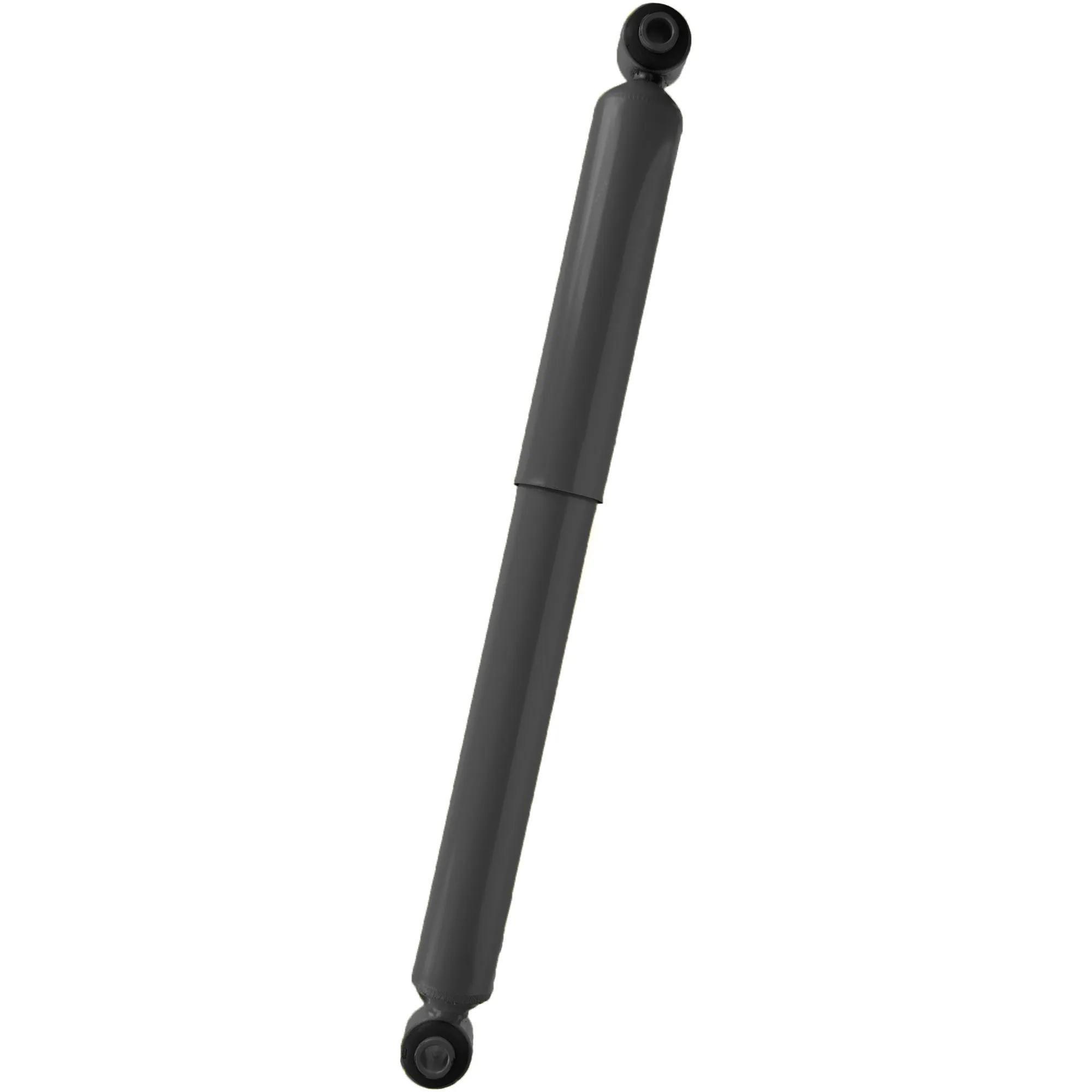

Monroe Magnum Shock Absorber, 15-25/32 in Comp, 24-7/8 in Ext, 9-3/32 in Stroke, Gas Charged, 1-3/8 in Bore
#MON66956
Sommaire du produit
The Monroe® Magnum® shock absorber for class 3-6 vehicles is Gas Charged for quicker response and a stable, more comfortable ride. Designed to handle the demands of high mileage and severe use vehicles, replace worn-out units with Magnum® shocks to help reduce excessive vibration.
Caractéristiques et avantages
- 5/8 in (15.9 mm) Diameter Piston Rod (On Most Applications)
- Resistance & Arc-Welded Mounts, Provide 9,500 lbs (4,309 kg) Of Tensile Strength For Maximum Durability (On Most Applications)
- 1-3/8 in (34.9 mm) Bore (On Most Applications)
- Multi-Lip Fluid Seal Designed For Smooth Performance, Long Life & Reduced Friction
- 10-Stage Full Displaced Valving (On Most Applications)
- 2 in Or 2-3/8 in (50.8 mm Or 60.3 mm) Reserve Tube (Where Required)
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration.
- Patented Unique Hydraulic Rebound Lockout (When Required)
- BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
Spécifications
| Application | 2011-2018 International TerraStar (Rear) (Drive: 4 X 2 / Qualifier: Replaces OE Part Number(s) 3892445C2, 3892445C3, 3892445C4, with IROS Suspension, Shock Absorbers are 1.38 (in) Bore Diameter); 1989-1999 International 9300 (Rear) (Qualifier: Replaces OE Part Number(s) 2039565C1, Shock Absorbers are 1.38 (in) Bore Diameter); 1990-1999 International 9400 (Rear) (Qualifier: Replaces OE Part Number(s) 2039565C1, Shock Absorbers are 1.38 (in) Bore Diameter); 1980-1989 International 1654 (Rear) (Qualifier: Replaces OE Part Number(s) 2039565C1, Low Profile Vehicle, Shock Absorbers are 1.38 (in) Bore Diameter) |
| Compressed Length | 15-25/32 in |
| Dust Shield | Yes |
| Extended Length | 24-7/8 in |
| Lower Mount | LS53 |
| Stroke Inch | 9-3/32 in |
| Upper Mount | LS53 |
| Travel Length | 9.68 in |
| Manufacturer Part Number | 66956 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges et pièces équivalentes:
| 660153 |
| 66956 |
| M66956 |
| 2039565C1 |
| 2039565C2 |
| 3892445C4 |
| 3919927 |
| 5113928 |
| 600153MT |
| 660153MT |
| 83100 |
| 83101 |
| AMS600153 |
| AMS660153 |
