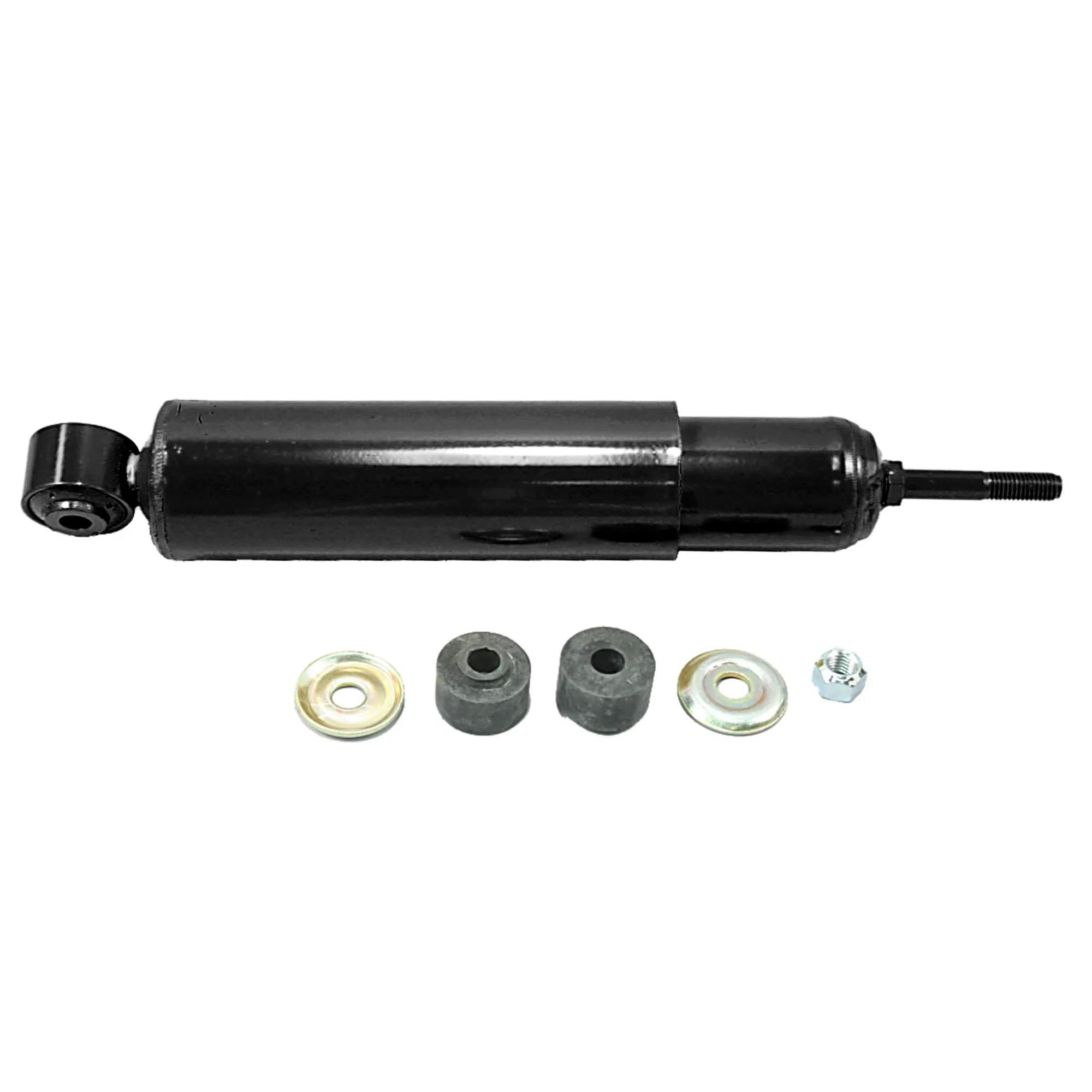

Monroe Magnum Shock Absorber, 2.75 in Body, Comp: 16-5/8 in, Ext: 26-3/8 in, Stroke: 9-3/4 in, for Transit Buses
#MON74432
Product Overview
Tough Monroe® Magnum® shock absorbers for transit buses deliver a firm, controlled ride for greater stability and increased driver and passenger comfort. Magnum transit bus shocks are designed to meet or exceed demanding OE manufacturer specifications.
Features & Benefits
- Resistance & Arc-Welded Mounts, Provide A 18,000 lbs (8,165 kg) Tensile Strength For Maximum Durability (On Most Applications)
- Patented Unique Hydraulic Rebound Lockout (When Required)
- Hardened 7/8 in (22.23 mm) Diameter Piston Rod
- Multi-Lip Fluid Seal Designed For Smooth Performance, Long Life & Reduced Friction
- Heavy Wall Drawn Over Mandrel Pressure Tube
- Large 1-3/4 in (44.5 mm) Piston Bore
- 10-Stage Full Displaced Valving (On Most Applications)
- 2-3/4 in (69.85 mm) Reserve Tube
- Greater Fluid Capacity
Specifications
| Body Diameter | 2.75 in |
| Compressed Length | 16-5/8 in |
| Dust Shield | Yes |
| Extended Length | 26-3/8 in |
| Lower Mount | S6 |
| Parts Pack | MONP01482 |
| Stroke Inch | 9-3/4 in |
| Type | Shock Absorber |
| Upper Mount | LS81 |
| Finish | Painted |
| Shock Mounting | Arc-Welded Mounts |
| Travel Length | 9.75 in |
| Manufacturer Part Number | 74432 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 74432 |
| 12051022 |
| 12051102 |
| 12051138 |
| 12051148 |
| 12051188 |
