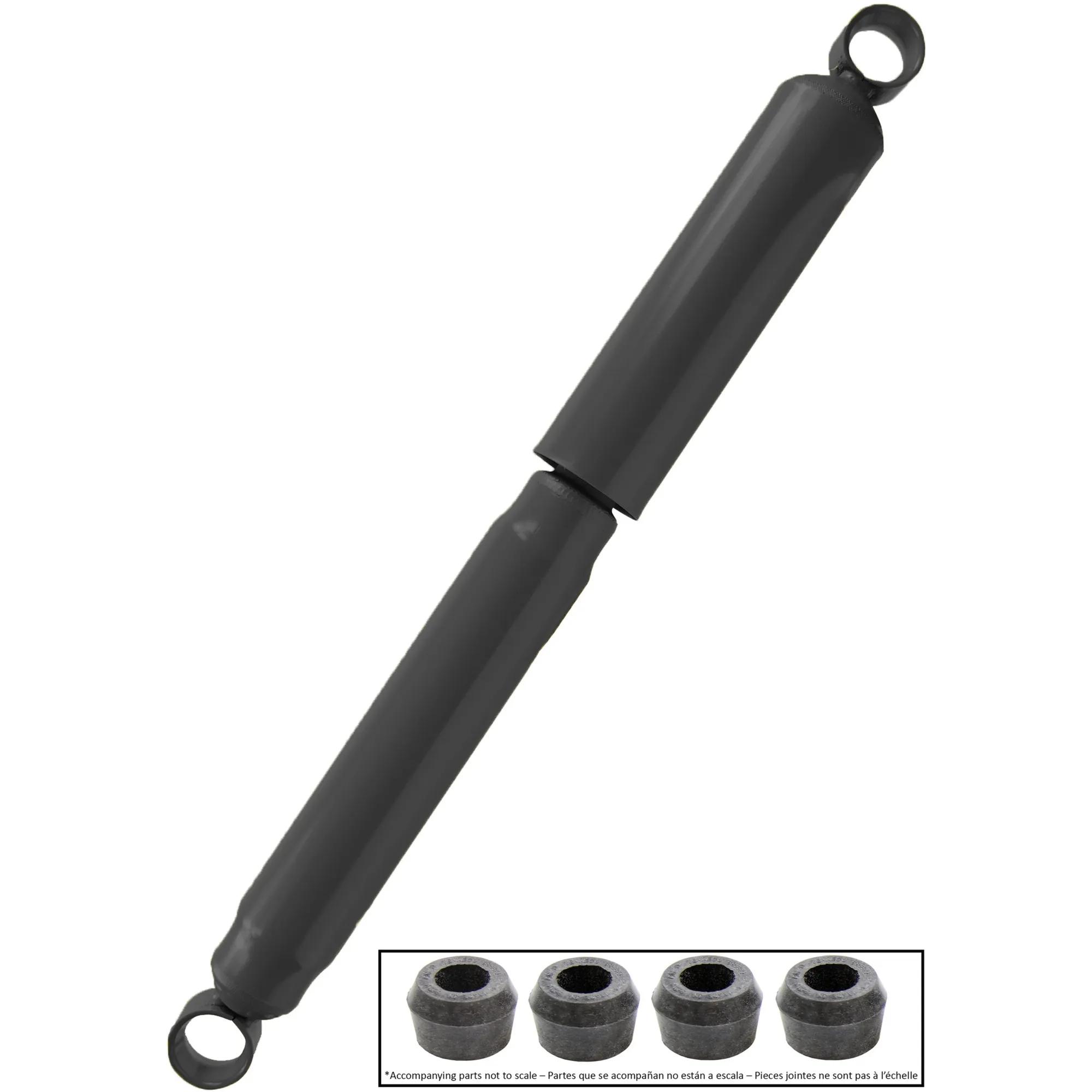

Monroe Magnum Shock Absorber, Comp 15-5/32 in, Ext 24-9/16 in, Stroke 9-13/32 in, 1-3/8 in Bore, Nitrogen Gas Charged
#MON66860
Product Overview
The Monroe® Magnum® shock absorber for class 3-6 vehicles is Gas Charged for quicker response and a stable, more comfortable ride. Designed to handle the demands of high mileage and severe use vehicles, replace worn-out units with Magnum® shocks to help reduce excessive vibration.
Features & Benefits
- 5/8 in (15.9 mm) Diameter Piston Rod (On Most Applications)
- Resistance & Arc-Welded Mounts, Provide 9,500 lbs (4,309 kg) Of Tensile Strength For Maximum Durability (On Most Applications)
- 1-3/8 in (34.9 mm) Bore (On Most Applications)
- Multi-Lip Fluid Seal Designed For Smooth Performance, Long Life & Reduced Friction
- 10-Stage Full Displaced Valving (On Most Applications)
- 2 in Or 2-3/8 in (50.8 mm Or 60.3 mm) Reserve Tube (Where Required)
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration.
- Patented Unique Hydraulic Rebound Lockout (When Required)
- BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
Specifications
| Body Diameter | 1-3/8 in |
| Compressed Length | 15-5/32 in |
| Dust Shield | Yes |
| Extended Length | 24-9/16 in |
| Lower Mount | L3 |
| Parts Pack | MONP00119 |
| Stroke Inch | 9-13/32 in |
| Upper Mount | L3 |
| Shock Type | Gas Charged (Nitrogen) |
| Travel Length | 9.407 in |
| Manufacturer Part Number | 66860 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 66860 |
| E-83308 |
| M66860 |
| 383379C91 |
| 3919906 |
| 453575C91 |
| 471203C91 |
| 5544812 |
| 873622C91 |
| C2TA18045B |
| C4HZ18124F |
| D2HF18045CA |
| E83308 |
| 10234503 |
| 102345034 |
| 16615 |
| 317958 |
| 4118 |
| 4121 |
| 4940633 |
| 5001277 |
| 50816 |
| 57306860 |
| 57366860 |
| 59022 |
| 600117 |
| 600117MT |
| 601117 |
| 660117MT |
| 6860 |
| 6862 |
| 6997 |
| 727635 |
| 83308 |
| 9161080 |
| AMS600117 |
| AMS660117 |
| AX269A |
| C2TZ18124A |
| C3TZ18124A |
| C4TZ18124AA |
| C4TZ18124AB |
| C4TZ18124B |
| C5TZ18124A |
| CAX860 |
| D1TZ18124D |
| D2HT18045GA |
| D2TF18045GA |
| D2TZ18124A |
| D2TZ18124H |
| D4TZ18124J |
| D5TZ18124B |
| D7HT18045GA |
| D7HT18045JA |
| D7HT18124GA |
| D7HT18124JA |
| F1HT18045CA |
| F1HT18045DB |
| F1HZ18124B |
| HD E144 |
| HD12140595 |
| KG6010 |
| L59022 |
| L59085 |
