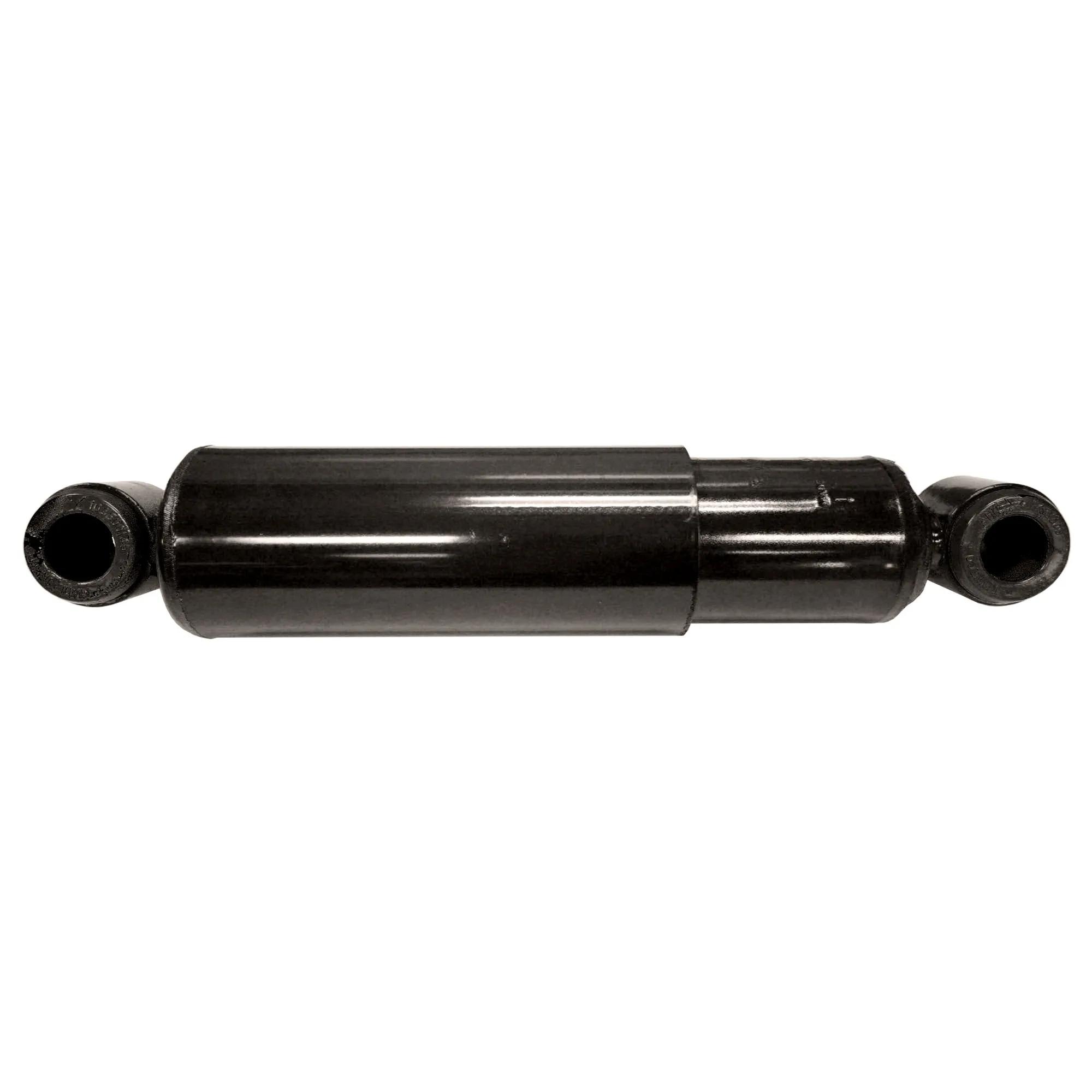

Monroe Magnum Shock Absorber for Transit Buses, Painted Metal, 2.75 in Body Dia, 16.75 in Compressed, 26.41 in Extended, 9.66 in Stroke
#MON74454
Product Overview
Tough Monroe® Magnum® shock absorbers for transit buses deliver a firm, controlled ride for greater stability and increased driver and passenger comfort. Magnum transit bus shocks are designed to meet or exceed demanding OE manufacturer specifications. Shock Absorber, Painted, Metal, 2.75 in Body Dia, 16.75 in Compressed Length, 26.406 in Extended Length, L4 Lower Mount, 9.656 in Travel Length, L4 Upper Mount
Features & Benefits
- Resistance & Arc-Welded Mounts, Provide A 18,000 lbs (8,165 kg) Tensile Strength For Maximum Durability (On Most Applications)
- Patented Unique Hydraulic Rebound Lockout (When Required)
- 2-3/4 in (69.85 mm) Reserve Tube
- Hardened 7/8 in (22.23 mm) Diameter Piston Rod
- Multi-Lip Fluid Seal Designed For Smooth Performance, Long Life & Reduced Friction
- Heavy Wall Drawn Over Mandrel Pressure Tube
- Consistent ride - all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/4 in reserve tube holds more fluid to improve performance (when required)
- 10-Stage Full Displaced Valving (On Most Applications)
- Large 1-3/4 in (44.5 mm) Piston Bore
- Exceptional handling - 10-stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/4 in bore allows valve finetuning by allowing more hydraulic fluid to dissipate heat for better control
Specifications
| Body Diameter | 2.75 in |
| Compressed Length | 16-3/4 in |
| Dust Shield | Yes |
| Extended Length | 26-13/32 in |
| Lower Mount | L4 |
| Stroke Inch | 9-21/32 in |
| Upper Mount | L4 |
| Finish | Painted |
| Material | Metal |
| Travel Length | 9.656 in |
| Manufacturer Part Number | 74454 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 700105 |
| 74003 |
| 74454 |
| 800781 |
| CHA800781 |
| M74454 |
| 120506056 |
| 12056056 |
| 1540100514 |
| 5394467 |
| 63677 |
| 70041 |
| E85305 |
| 12-05-06056 |
| MAE 74454 |
| MON74454 |
| OE10884 |
