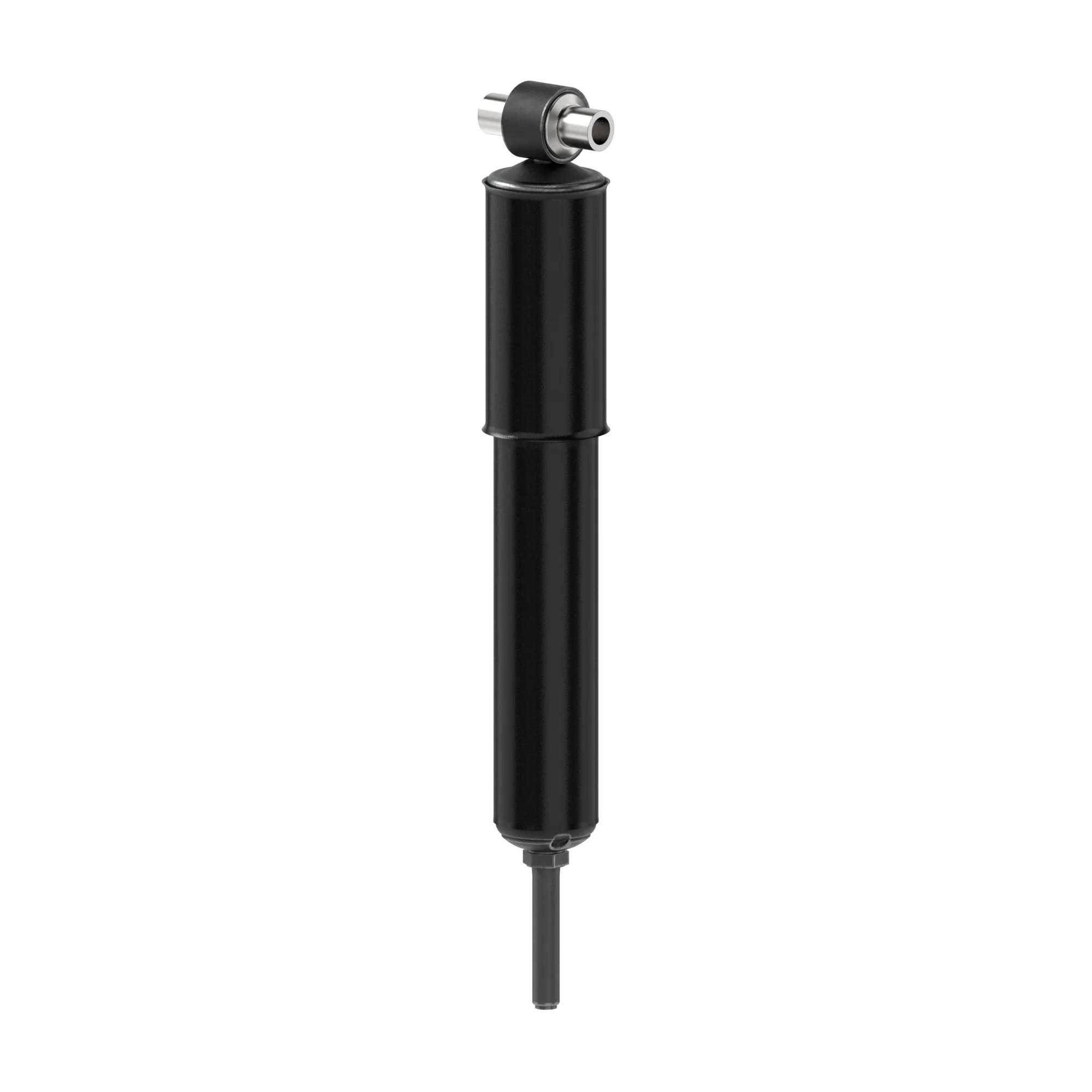

Monroe Magnum Shock Absorber, Gas Charged, 1-3/4 in Bore, LS87 Upper, S6 Lower, 11-51/64 in Comp, 17-27/32 in Ext, 6-1/16 in Stroke
#MON65524
Product Overview
The Monroe® Magnum® shock absorber is designed for class 6-8 commercial vehicles, including trucks and buses, featuring a Gas Charged, large-bore design ideal for air spring and taper leaf suspensions. The nitrogen gas charge improves ride and handling by maintaining tire-to-road contact and reducing aeration and shock fade. Built for durability and consistent performance under severe use, it delivers exceptional control, reduces noise, vibration, and harshness, and extends service life.Shock Absorber, Metal, 11.7969 in Compressed Length, 17.8594 in Extended Length, S6 Lower Mount, 6.062 in Travel Length, LS87 Upper Mount
Features & Benefits
- Hardened 23/32 in (18 mm) Diameter Chrome Piston Rod
- Resistance & Arc-Welded Mounts, Provides 15,000 lbs (6,804 kg) Of Tensile Strength For Maximum Durability
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration.
- Large 1-3/4 in (44.5 mm) Piston Bore
- Single-Lip, Low-Friction Oil Seal
- Heavy Wall Drawn Over Mandrel Pressure Tube
- Consistent ride - all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8 in reserve tube holds more fluid to improve performance (most applications)
- 10-Stage Full Displaced Valving (On Most Applications)
- 2-3/8 in (60.3 mm) Reserve Tube
- Exceptional handling - 10-stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/4 in bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
- For hardworking commercial vehicles - designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
- Patented Unique Hydraulic Rebound Lockout (When Required)
Specifications
| Application | 1997-2011 Kenworth T2000 (Rear) (Qualifier: Air Glide 400 Rear Suspension, Shock Absorbers are 1.75 (in) Bore Diameter); 1986-2008 Kenworth T600A (Rear) (Qualifier: Air Glide 400 Rear Suspension, Shock Absorbers are 1.75 (in) Bore Diameter); 2007-2022 Kenworth T800 (Rear) (Qualifier: Replaces OE Part Number(s) C711014, 671962, with Kenworth AG400 Air Suspension, Shock Absorbers are 1.75 (in) Bore Diameter); 2004-2023 Kenworth W900 (Rear) (Qualifier: Replaces OE Part Number(s) C711014, 671962, with Kenworth Air Glide 400 Air Suspension, Shock Absorbers are 1.75 (in) Bore Diameter); 2010-2020 Kenworth T400 (Rear) (Qualifier: Air Glide 400 Rear Suspension, Shock Absorbers are 1.75 (in) Bore Diameter, Replaces OE Part Number(s) C711014, 671962); 2008-2019 Kenworth T660 (Rear) (Qualifier: Air Glide 400 Rear Suspension, Shock Absorbers are 1.75 (in) Bore Diameter); 2013-2022 Kenworth T680 (Rear) (Qualifier: Replaces OE Part Number(s) C711014, 671962, with Air Glide 400 Air Suspension, Shock Absorbers are 1.75 (in) Bore Diameter); 2014-2023 Kenworth T880 (Rear) (Qualifier: Replaces OE Part Number(s) C711014, 671962, Air Glide 400 Rear Suspension, Shock Absorbers are 1.75 (in) Bore Diameter); 2011-2016 Kenworth T700 (Rear) (Qualifier: Replaces OE Part Number(s) C711014, 671962, Air Glide 400 Rear Suspension, Shock Absorbers are 1.75 (in) Bore Diameter); 2019-2022 Kenworth W990 (Rear) (Qualifier: Replaces OE Part Number(s) C711014, with Air Glide 400 Suspension, Shock Absorbers are 1.75 (in) Bore Diameter) |
| Compressed Length | 11-51/64 in |
| Dust Shield | Yes |
| Extended Length | 17-27/32 in |
| Lower Mount | S6 |
| Parts Pack | MONP01482 |
| Stroke Inch | 6-1/16 in |
| Upper Mount | LS87 |
| Material | Metal |
| Travel Length | 6.062 in |
| Manufacturer Part Number | 65524 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 65524 |
| M65524 |
| 67-196-2 |
| C711014 |
| MON65524 |
| 85936 |
| 671962 |
| 67196240Y |
| 89456 |
| C711014PLUS |
| E85936 |
| 62-968 |
