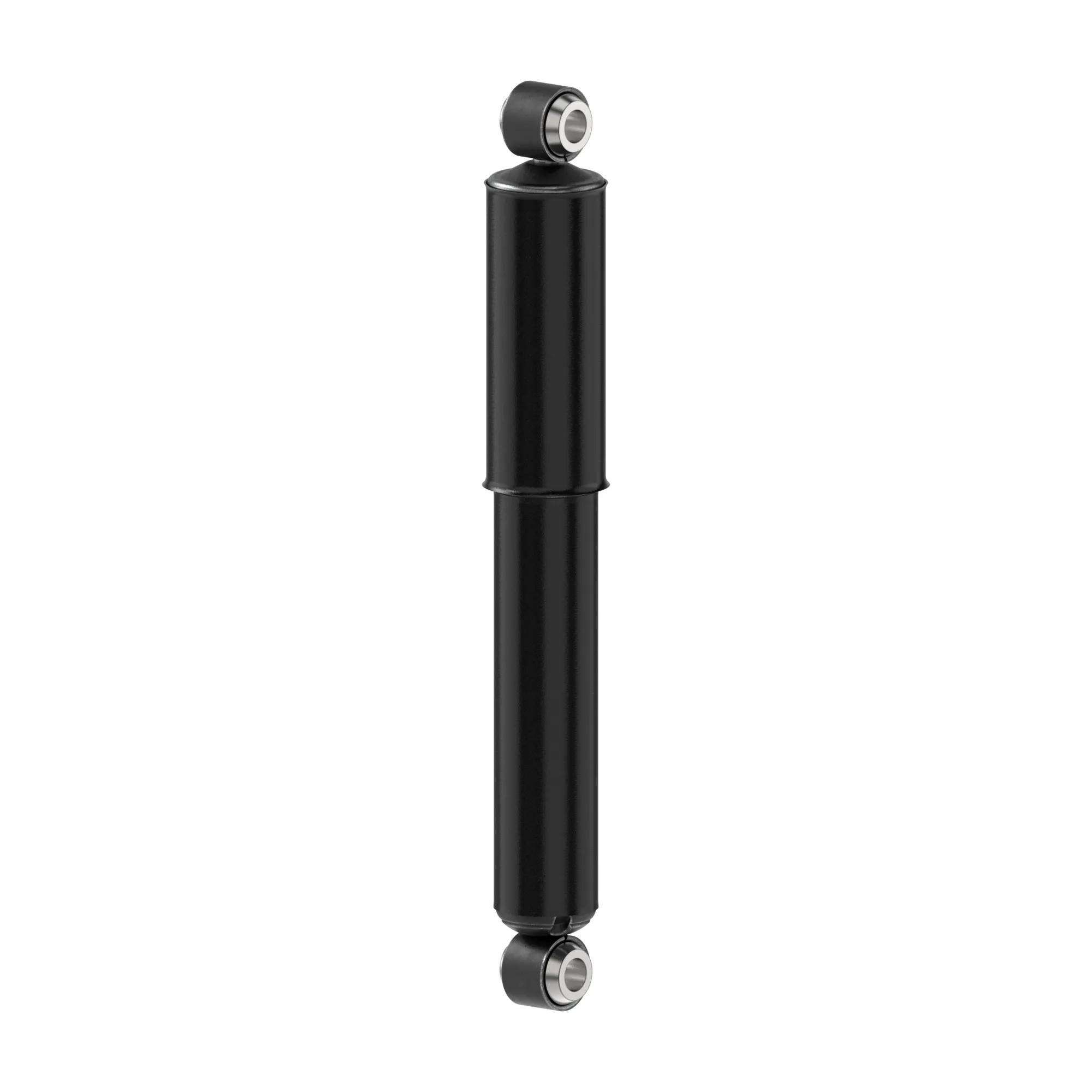

Monroe Magnum Shock Absorber, Nitrogen Gas Charged, Painted Metal, 12-11/16 in Compressed, 19-43/64 in Extended, 6-63/64 in Stroke, L3 Mounts
#MON65101
Product Overview
The Monroe® Magnum® shock absorber is designed for class 6-8 heavy-duty trucks and buses, featuring a nitrogen gas charge and large bore for fast response and consistent control. Ideal for air spring and taper leaf suspensions, it improves ride quality by maintaining tire-to-road contact and reducing aeration and shock fade. Shock Absorber, Painted, Metal, 12.6875 in Compressed Length, 19.6719 in Extended Length, L3 Lower Mount, 6.984 in Travel Length, L3 Upper Mount
Features & Benefits
- Large 1-3/4 in (44.5 mm) Piston Bore.
- Hardened 23/32 in (18 mm) Diameter Chrome Piston Rod
- Heavy Wall Drawn Over Mandrel Pressure Tube.
- 2-3/8 in (60.3 mm) Reserve Tube.
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration - On Most Applications
- Patented Unique Hydraulic Rebound Lockout (When Required).
- For hardworking commercial vehicles - designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
- 10-Stage Full Displaced Valving (On Most Applications)
- When Combined, The Gas Charge & Large-Bore Provide The Consistent Control Necessary For Demanding Truck Suspensions.
- Consistent ride - all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8 in reserve tube holds more fluid to improve performance (most applications)
- Single-Lip, Low-Friction Oil Seal.
- Resistance & Arc-Welded Mounts, Provides 15,000 lbs (6,804 kg) Of Tensile Strength For Maximum Durability.
Specifications
| Compressed Length | 12-11/16 in |
| Dust Shield | Yes |
| Extended Length | 19-43/64 in |
| Lower Mount | L3 |
| Stroke Inch | 6-63/64 in |
| Type | Shock Absorber |
| Upper Mount | L3 |
| Finish | Painted |
| Material | Metal |
| Shock Type | Gas Charged (Nitrogen) |
| Travel Length | 6.984 in |
| Manufacturer Part Number | 65101 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 65101 |
| 8065787 |
| 85026 |
| 85062 |
| M65101 |
| 3919932 |
| 650101 |
| 665659 |
| 680261 |
| 68026140Y |
| 680601 |
| 728624 |
| AMS650101 |
| B716007 |
| B716016PLUS |
| B716018 |
| M85062 |
| TSA650101 |
