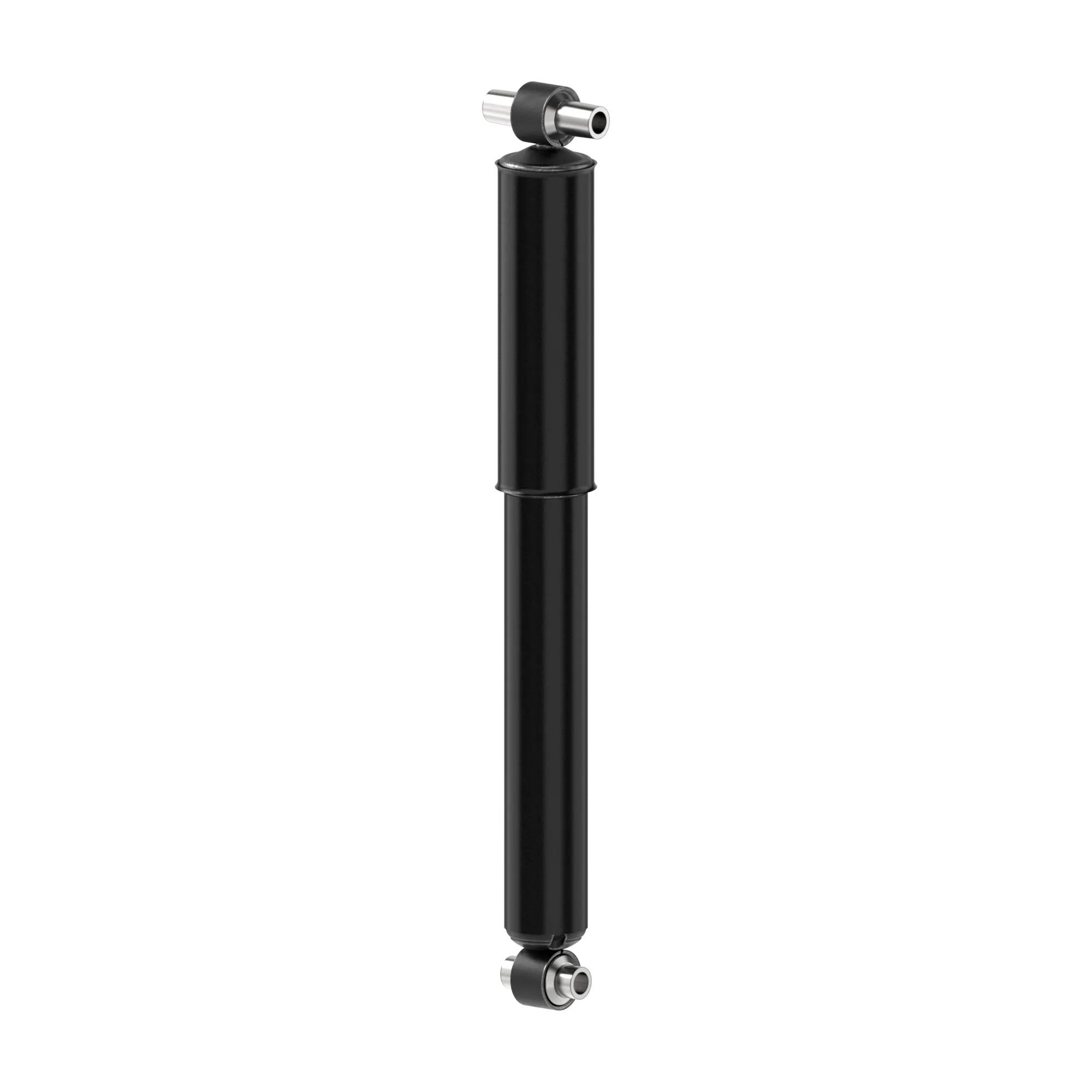

Monroe Magnum Shock Absorber, Painted Metal, Nitrogen Gas Charged, 15-5/8 in Compressed, 24-3/8 in Extended, 8-3/4 in Stroke
#MON65486
Product Overview
The Monroe® Magnum® shock absorber is designed for class 6-8 heavy-duty trucks and buses, featuring a nitrogen gas charge for fast response and improved ride quality. It is engineered for air spring and taper leaf suspensions, providing exceptional handling, durability, and longer service life under severe use conditions. Shock Absorber, Painted, Metal, 15.625 in Compressed Length, 24.98 in Extended Length, LS62 Lower Mount, 9.355 in Travel Length, LS61 Upper Mount
Features & Benefits
- Hardened 23/32 in (18 mm) Diameter Chrome Piston Rod
- Resistance & Arc-Welded Mounts, Provides 15,000 lbs (6,804 kg) Of Tensile Strength For Maximum Durability
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration.
- Large 1-3/4 in (44.5 mm) Piston Bore
- Single-Lip, Low-Friction Oil Seal
- Heavy Wall Drawn Over Mandrel Pressure Tube
- Consistent ride - all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8 in reserve tube holds more fluid to improve performance (most applications)
- 10-Stage Full Displaced Valving (On Most Applications)
- 2-3/8 in (60.3 mm) Reserve Tube
- Exceptional handling - 10-stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/4 in bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
Specifications
| Body Diameter | 2-3/8 in |
| Compressed Length | 15-5/8 in |
| Dust Shield | Yes |
| Extended Length | 24-3/8 in |
| Lower Mount | LS62 |
| Stroke Inch | 8-3/4 in |
| Type | Shock Absorber |
| Upper Mount | LS61 |
| Finish | Painted |
| Material | Metal |
| Shock Type | Gas Charged (Nitrogen) |
| Travel Length | 9.355 in |
| Manufacturer Part Number | 65486 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 20551628 |
| 21462380 |
| 65486 |
| 85066 |
| M65486 |
| A85066 |
| 65486-MS |
| 806551 |
| 8086551 |
| 8086651 |
| 85104221 |
| AMS65486 |
| MAE 65486 |
| MON65486 |
| RC SA5066 |
| ZZSA65486 |
| SA65486 |
| 20897198 |
| 141700000443 |
| 14QK2136M |
| 14QK3101M |
| 20433425 |
| 20551627 |
| 21462378 |
| 21462382 |
| 21462384 |
| 22202559 |
| 22202560 |
| 315421 |
| 315435 |
| 315608 |
| 315609 |
| 44185066 |
| 471700000431 |
| 471700000443 |
| 471700002627 |
| 471700006038 |
| 471700006039 |
| 471700006040 |
| 471700009646 |
| 471700009647 |
| 85088 |
| 89448 |
| 98031012 |
| 98031022 |
| ABPN32G900032 |
| ABPN32G900040 |
| ABPN32G900078 |
| ABPN32O900032 |
| ABPN32O900040 |
| ABPN32O900078 |
| F347197 |
| F347205 |
| F347211 |
| HD12150030 |
| M85066 |
| SA55042 |
