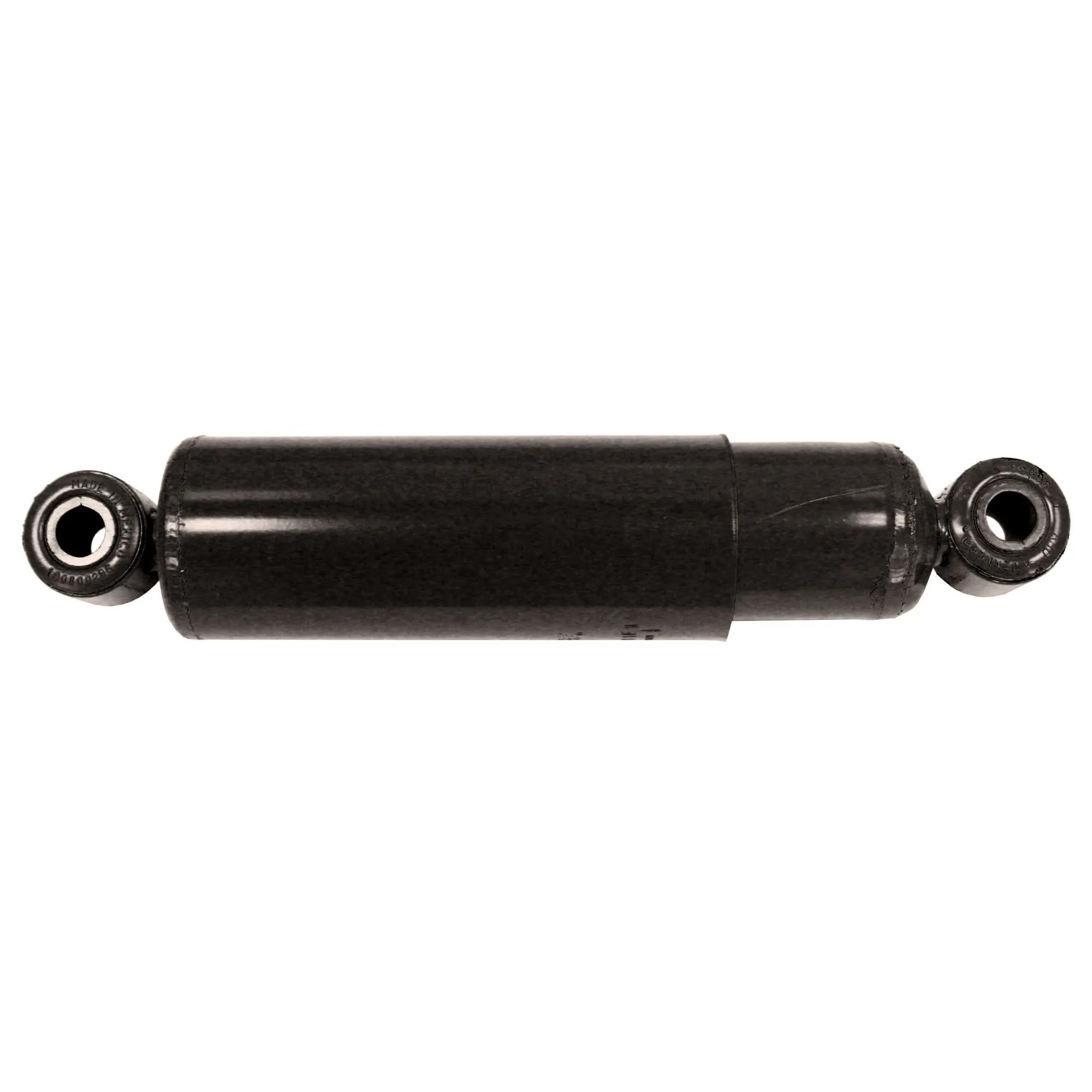

Monroe Magnum Transit Bus Shock Absorber, 2.75 in Body, 21.85 in Ext, 13.97 in Comp, Loop Mount
#MON74469
Product Overview
Tough Monroe® Magnum® shock absorbers for transit buses deliver a firm, controlled ride for greater stability and increased driver and passenger comfort. Magnum transit bus shocks are designed to meet or exceed demanding OE manufacturer specifications.
Features & Benefits
- FOR HARDWORKING TRANSIT BUSES -- Designed to handle the demands of high mileage and severe use transit buses
- CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/4 in reserve tube holds more fluid to improve performance (when required)
- EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/4 in bore allows valve finetuning by allowing more hydraulic fluid to dissipate heat for better control
- STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
- BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (when required)
- LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
- REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions
- BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
Specifications
| Body Diameter | 2.75 in |
| Compressed Length | 13.97 in |
| Extended Length | 21.85 in |
| Lower Mount | Loop (Eyelet) Bushing and Sleeve |
| Upper Mount | Loop Bushing and Sleeve Mount - 3/4 in Sleeve ID X 1.3/4 in Sleeve OAL |
| Finish | Painted |
| Travel Length | 7.88 in |
| Manufacturer Part Number | 74469 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 881616 |
| 89461 |
| 902626 |
