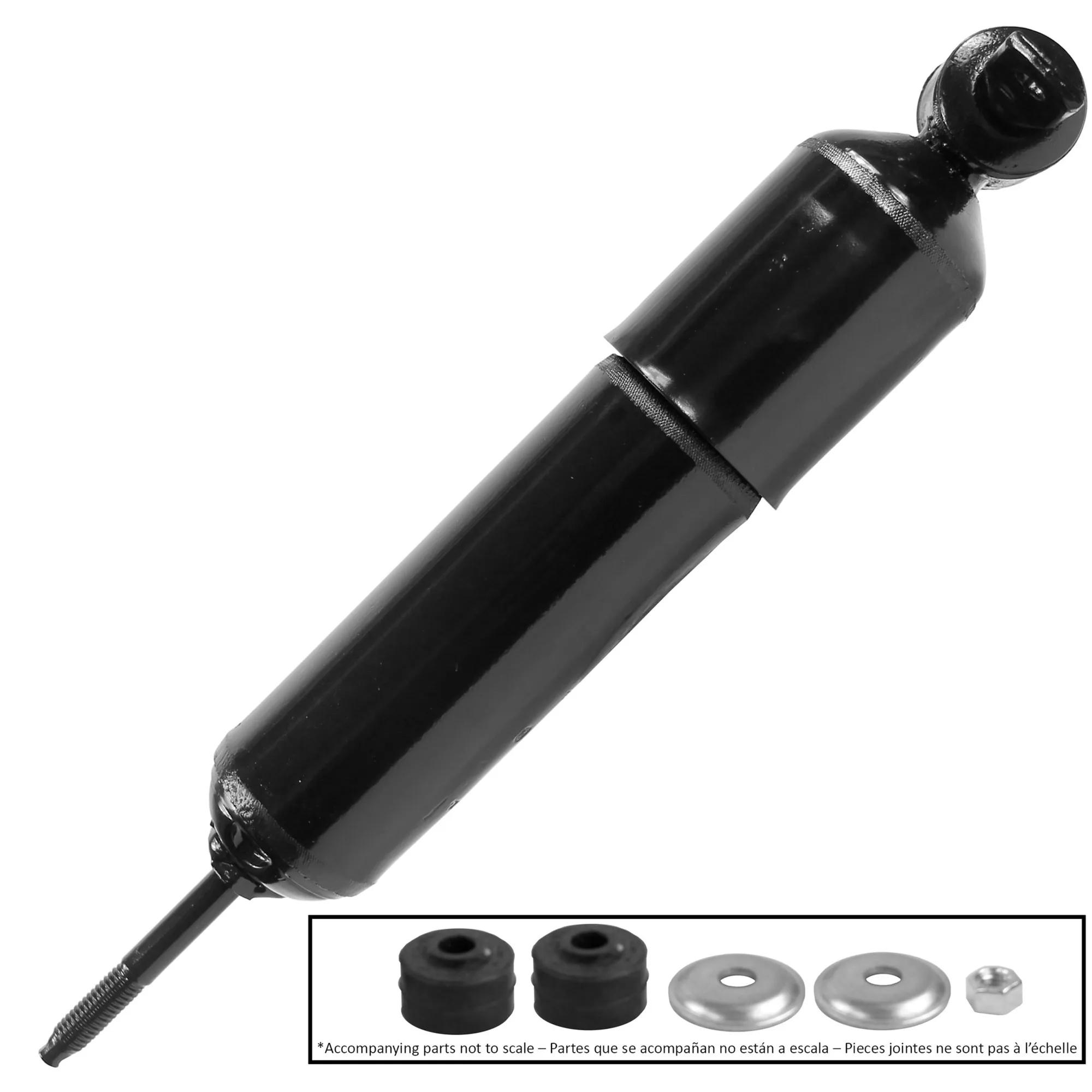

Monroe Nitrogen Gas Charged Cab Shock Absorber, Comp: 8-3/4 in, Ext: 10-7/8 in, Stroke: 2-1/8 in, 1-3/8 in Bore
#MON66189
Product Overview
Designed for heavy-duty cab suspensions, the Gas Charged Monroe® Magnum® Cab shock isolates the cab from the frame for a smoother, more comfortable ride. Utilizes velocity-sensitive valving to deliver a new standard in driver comfort (most applications).
Features & Benefits
- Resistance & Arc-Welded Mounts, Provides 15,000 lbs (6,804 kg) Of Tensile Strength For Maximum Durability
- Urethane Rebound Bumper (When Required)
- 1-3/8 in Bore: Lower Operating Pressure Than Standard 1 in Bore Units
- Multi-Lip Fluid Seal Designed For Smooth Performance, Long Life & Reduced Friction
- 2 in Or 2-3/8 in (50.8 mm Or 60.3 mm) Reserve Tube (Where Required)
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration.
- Exclusive Groove Tube Technology (On Most Applications)
- BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
Specifications
| Application | 1989-2005 Mack CH (Cab) (Qualifier: Replaces OE Part Number(s) 14QK391BM2, For additional OE Part Number cross reference information, please refer to the product interchange); 1991-2007 Mack CL (Cab) (Qualifier: Replaces OE Part Number(s) 14QK391BM2, For additional OE Part Number cross reference information, please refer to the product interchange) |
| Body Diameter | 1-3/8 in |
| Compressed Length | 8-3/4 in |
| Extended Length | 10-7/8 in |
| Lower Mount | S4 |
| Parts Pack | MONP01134 |
| Stroke Inch | 2-1/8 in |
| Type | Shock Absorber |
| Upper Mount | XP8 |
| Shock Type | Gas Charged (Nitrogen) |
| Travel Length | 2.125 in |
| Manufacturer Part Number | 66189 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 66189 |
| M66189 |
| 14QK391AM |
| 14QK391AM2 |
| 14QK391BM |
| 14QK391BM2 |
| 25624698 |
| 25624837 |
| 660245 |
| 66689 |
| 83041 |
