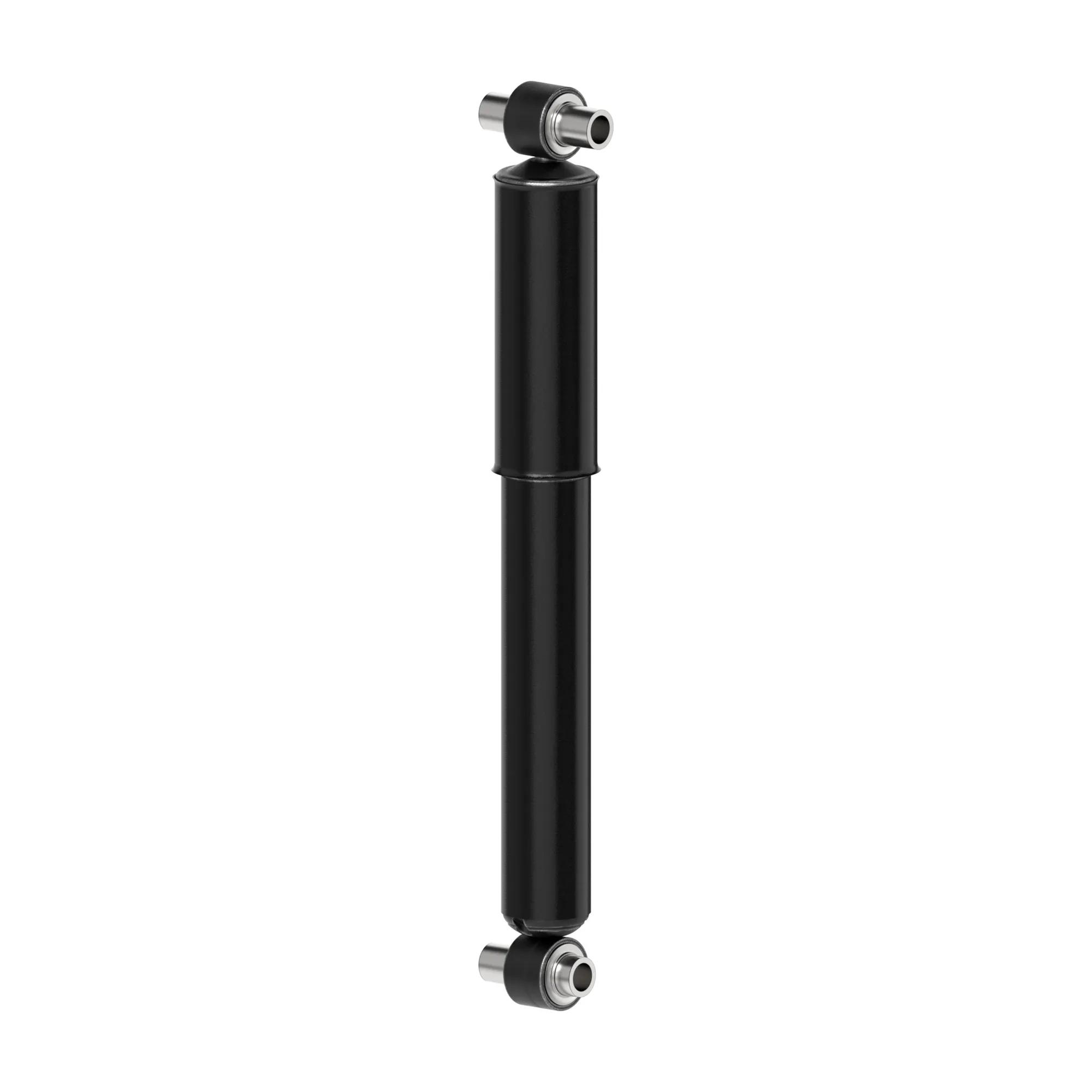

Monroe Nitrogen Gas Charged Heavy-Duty Shock Absorber, 15 in Compressed, 22-3/8 in Extended, 7-3/8 in Stroke, LS59 Upper, LS60 Lower Mount
#MON65490
Product Overview
The Monroe® Magnum® shock absorber is designed for class 6-8 heavy-duty trucks and buses, featuring a nitrogen gas charge for fast response and improved ride quality. It is the first Gas Charged, large-bore shock for air spring and taper leaf suspensions, helping maintain tire-to-road contact by reducing aeration and shock fade.Shock Absorber, Metal, 15 in Compressed Length, 22.9063 in Extended Length, LS60 Lower Mount, 7.906 in Travel Length, LS59 Upper Mount
Features & Benefits
- Hardened 23/32 in (18 mm) Diameter Chrome Piston Rod
- Resistance & Arc-Welded Mounts, Provides 15,000 lbs (6,804 kg) Of Tensile Strength For Maximum Durability
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration.
- Large 1-3/4 in (44.5 mm) Piston Bore
- Single-Lip, Low-Friction Oil Seal
- Heavy Wall Drawn Over Mandrel Pressure Tube
- Consistent ride - all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8 in reserve tube holds more fluid to improve performance (most applications)
- 10-Stage Full Displaced Valving (On Most Applications)
- 2-3/8 in (60.3 mm) Reserve Tube
- Exceptional handling - 10-stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/4 in bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
- For hardworking commercial vehicles - designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
- Patented Unique Hydraulic Rebound Lockout (When Required)
Specifications
| Body Diameter | 2-3/8 in |
| Compressed Length | 15 in |
| Dust Shield | Yes |
| Extended Length | 22-3/8 in |
| Lower Mount | LS60 |
| Stroke Inch | 7-3/8 in |
| Upper Mount | LS59 |
| Material | Metal |
| Shock Type | Gas Charged (Nitrogen) |
| Travel Length | 7.906 in |
| Manufacturer Part Number | 65490 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 1618972000 |
| 65490 |
| 74425 |
| 85724 |
| M65490 |
| 1613952000 |
| 1613957000 |
| 1613957003 |
| 1615817000 |
| 1616591000 |
| 1618708000 |
| 680611 |
| SF393 |
| ABP.N32.O900001 |
| SLH16008115 |
| 1620716000 |
| 315395 |
| 341628 |
| 441602 |
| 44185724 |
| 471700002809 |
| 481700006848 |
| 510018 |
| 57374425 |
| 680339 |
| 700423 |
| 700423MT |
| 8180267 |
| 8190007 |
| 88051022 |
| 89443 |
| 9180124 |
| 98031003 |
| A85724 |
| A89443 |
| ABPN32G900001 |
| ABPN32O900001 |
| AMS65490 |
| F347260 |
| HD E144 |
| HD12150018 |
| M85724 |
| M89443 |
| RCSA5724 |
| SA3111 |
| SA3112 |
| SA5000 |
| SA5724 |
| SA65490 |
| SA74425 |
| SDA471700002809 |
| SSA89443 |
| XC4518080BA |
