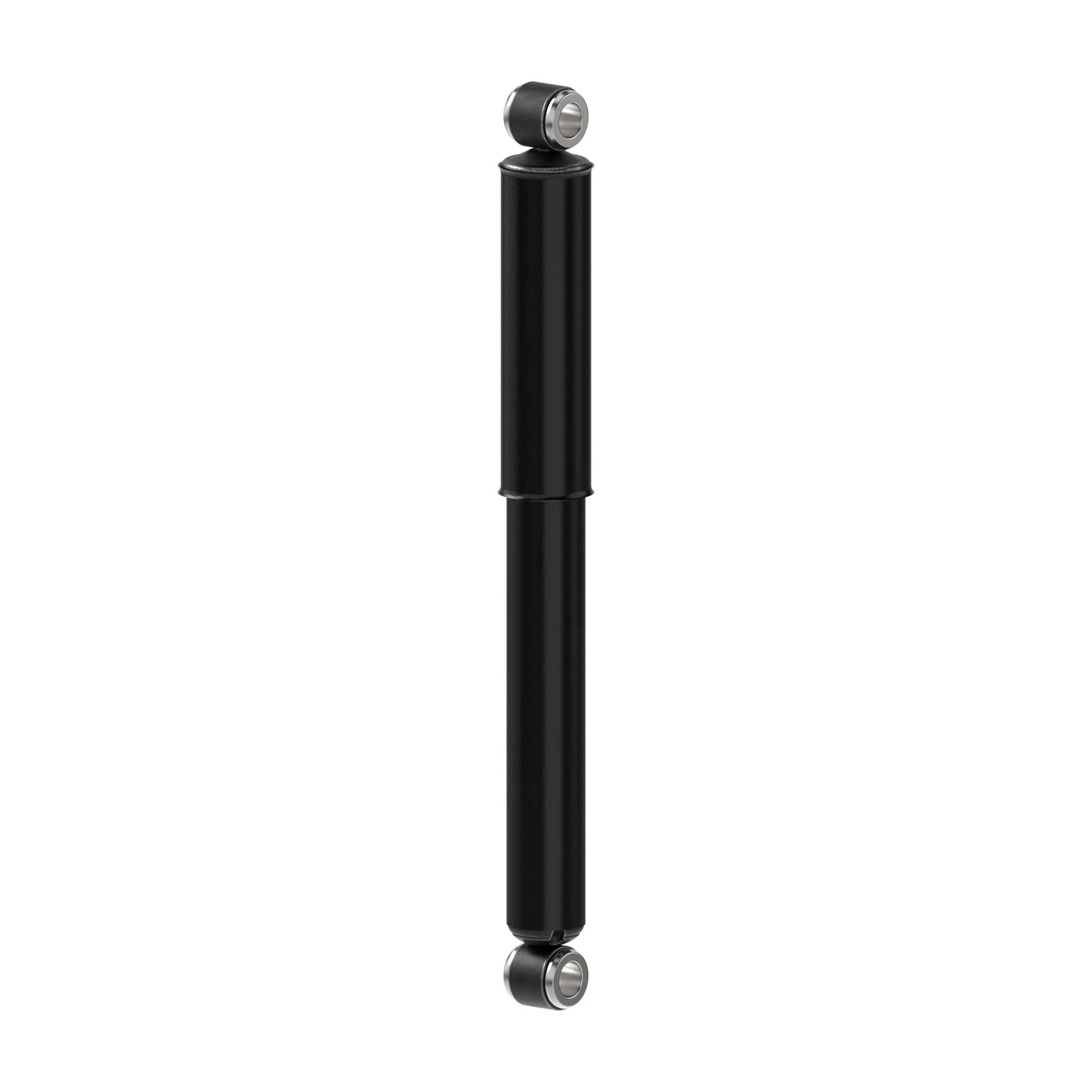

Monroe Nitrogen Gas Charged Shock Absorber, 16-3/8 in Compressed, 26-3/8 in Extended, 10 in Stroke, L4 Mount, Painted
#MON65103
Product Overview
The Monroe® Magnum® shock absorber is designed for class 6-8 heavy-duty trucks and buses, featuring a nitrogen gas charge and large bore for fast response and consistent control in air spring and taper leaf suspensions. It improves ride quality by maintaining tire-to-road contact and reducing aeration and shock fade, making it ideal for demanding commercial vehicle applications. Shock Absorber, Painted, Metal, 16.375 in Compressed Length, 26.375 in Extended Length, L4 Lower Mount, 10 in Travel Length, L4 Upper Mount
Features & Benefits
- Large 1-3/4 in (44.5 mm) Piston Bore.
- Hardened 23/32 in (18 mm) Diameter Chrome Piston Rod
- Heavy Wall Drawn Over Mandrel Pressure Tube.
- 2-3/8 in (60.3 mm) Reserve Tube.
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration - On Most Applications
- Patented Unique Hydraulic Rebound Lockout (When Required).
- For hardworking commercial vehicles - designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
- 10-Stage Full Displaced Valving (On Most Applications)
- When Combined, The Gas Charge & Large-Bore Provide The Consistent Control Necessary For Demanding Truck Suspensions.
- Consistent ride - all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8 in reserve tube holds more fluid to improve performance (most applications)
Specifications
| Body Diameter | 1-3/4 in |
| Compressed Length | 16-3/8 in |
| Extended Length | 26-3/8 in |
| Lower Mount | L4 |
| Stroke Inch | 10 in |
| Type | Shock Absorber |
| Upper Mount | L4 |
| Finish | Painted |
| Material | Metal |
| Shock Mounting | Air spring and taper leaf suspensions |
| Shock Type | Gas Charged (Nitrogen) |
| Travel Length | 10 in |
| Manufacturer Part Number | 65103 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 65103 |
| 74073 |
| M65103 |
| MON74073 |
| 1012032000 |
| 1012032001 |
| 1012032002 |
| E6HT18080AA |
| E6HZ18125D |
| F4HT18080AA |
| F4HT18080AB |
| F5HZ18125A |
| F6HT18080CA |
| F6HZ18125A |
| XC4518080AA |
| EUE-89429 |
| 1012030002 |
| 1012032003 |
| 1012032004 |
| 1012046000 |
| 14QK392AM2 |
| 16385 |
| 25632480 |
| 256632480 |
| 341615 |
| 373013404 |
| 3919934 |
| 410032 |
| 44185320 |
| 453576C92 |
| 5001363 |
| 5001389 |
| 57365103 |
| 57374073 |
| 650103 |
| 650103MT |
| 66664 |
| 680425 |
| 700111 |
| 701111 |
| 70300 |
| 70329 |
| 70337 |
| 70338 |
| 70402 |
| 8190008 |
| 8190100 |
| 85320 |
| 89429 |
| 9180132 |
| 9180144 |
| 9180256 |
| ABPN32G900004 |
| AMS650103 |
| AMS700111 |
| F347265 |
| F347316 |
| HD E144 |
| HD12150029 |
| M85320 |
| M89429 |
| OE10143 |
| RCSA5320 |
| SA5303 |
| SA5320 |
