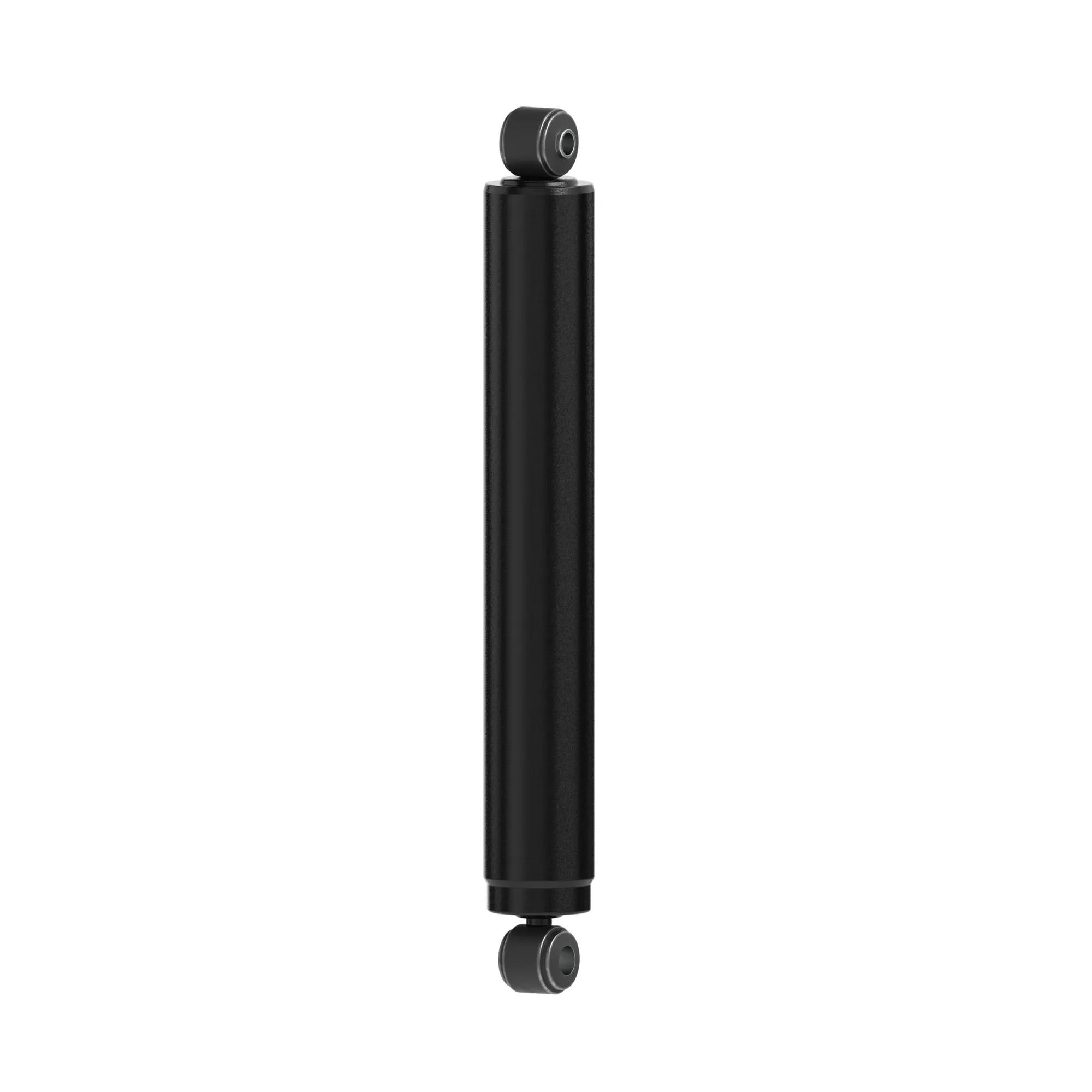

Monroe Shock Absorber, Comp 17-3/32 in, Ext 28-13/32 in, Stroke 11-19/64 in, Gas Charged, 1-3/4 in Piston Bore, L1/LS26 Mounts
#MON65174
Product Overview
The Monroe® Magnum® shock absorber for class 6-8 vehicles is the first Gas Charged, large-bore shock for air spring and taper leaf suspensions. The nitrogen gas charge provides the fast response essential for today’s heavy-duty truck suspension systems.
Features & Benefits
- Hardened 23/32 in (18 mm) Diameter Chrome Piston Rod
- Resistance & Arc-Welded Mounts, Provides 15,000 lbs (6,804 kg) Of Tensile Strength For Maximum Durability
- Large 1-3/4 in (44.5 mm) Piston Bore
- Single-Lip, Low-Friction Oil Seal
- Heavy Wall Drawn Over Mandrel Pressure Tube
- 2-3/8 in (60.3 mm) Reserve Tube
- 10-Stage Full Displaced Valving (On Most Applications)
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration.
- Patented Unique Hydraulic Rebound Lockout (When Required)
Specifications
| Application | 2008-2016 Ford F-450 Super Duty (Rear) (Body: Crew Cab Pickup / Qualifier: Severe Duty, Shock Absorbers are 1.75 (in) Bore Diameter) |
| Compressed Length | 17-3/32 in |
| Dust Shield | Yes |
| Extended Length | 28-13/32 in |
| Lower Mount | LS26 |
| Stroke Inch | 11-19/64 in |
| Upper Mount | L1 |
| Finish | Painted |
| Travel Length | 11.375 in |
| Manufacturer Part Number | 65174 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 65174 |
| M65174 |
| 7C34 18080 LJC |
| 7C3418080LJC |
| 9C34 18080 MJA |
| 9C3418080MJA |
| 05-463 |
