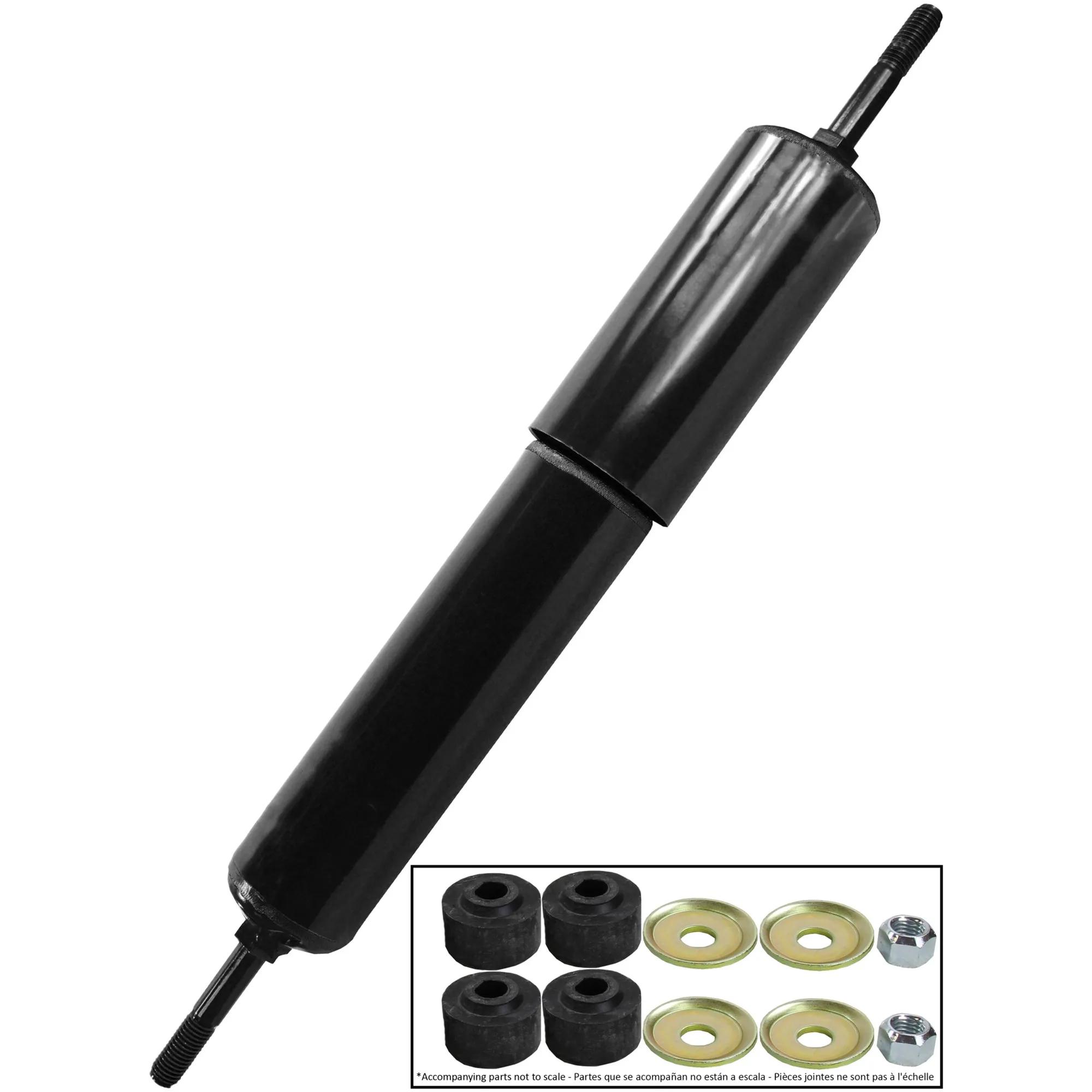

Monroe Shock Absorber, Gas Charged, Large Bore, Comp: 13-1/8 in, Ext: 21-5/8 in, Stroke: 8-1/2 in, S6/S6 Mount, with Dust Shield
#MON65115
Product Overview
The Monroe® Magnum® shock absorber for class 6-8 vehicles is the first Gas Charged, large-bore shock for air spring and taper leaf suspensions. The nitrogen gas charge provides the fast response essential for today’s heavy-duty truck suspension systems.
Features & Benefits
- 2-3/8 in (60.3 mm) Reserve Tube.
- Large 1-3/4 in (44.5 mm) Piston Bore.
- 10-Stage Full Displaced Valving (On Most Applications)
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration - On Most Applications
- Resistance & Arc-Welded Mounts, Provides 15,000 lbs (6,804 kg) Of Tensile Strength For Maximum Durability.
- Single-Lip, Low-Friction Oil Seal.
- Patented Unique Hydraulic Rebound Lockout (When Required).
- Heavy Wall Drawn Over Mandrel Pressure Tube.
- When Combined, The Gas Charge & Large-Bore Provide The Consistent Control Necessary For Demanding Truck Suspensions.
- Hardened 23/32 in (18 mm) Diameter Chrome Piston Rod
Specifications
| Application | 1988-1995 White/GMC WCA (Front) (Qualifier: Replaces OE Part Number(s) 373013201, without Dual Shocks, Shock Absorbers are 1.75 (in) Bore Diameter); 1988-1995 White/GMC WIA (Front) (Qualifier: Replaces OE Part Number(s) 373013201, without Dual Shocks, Shock Absorbers are 1.75 (in) Bore Diameter); 1996-2001 Volvo WG (Front) (Qualifier: Replaces OE Part Number(s) 373013201, Shock Absorbers are 1.75 (in) Bore Diameter); 2006-2010 Volvo VT (Front) (Qualifier: Replaces OE Part Number(s) 373013201, Shock Absorbers are 1.75 (in) Bore Diameter) |
| Compressed Length | 13-1/8 in |
| Dust Shield | Yes |
| Extended Length | 21-5/8 in |
| Lower Mount | S6 |
| Stroke Inch | 8-1/2 in |
| Upper Mount | S6 |
| Finish | Painted |
| Includes | (2) MONP1482 |
| Travel Length | 8.5 in |
| Manufacturer Part Number | 65115 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 65115 |
| E-85027 |
| M65115 |
| 373013201 |
| 3919945 |
| 57365115 |
| 650115 |
| 650115MT |
| 89418 |
| AMS650115 |
| E85027 |
